SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

Duży Obraz : SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC,SGS,BV
Numer modelu:	CLW5084cb

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Zakres temperatur:	-18 stopni do -5 stopni	Materiał furgonetki:	włókno szklane
Warstwa izolująca:	Pianka poliuretanowa o grubości 80 mm	Stosowanie:	Transport warzyw, mięsa, lodów, ryb mrożonych
Jednostka chłodnicza do samochodów ciężarowych:	SA Marka Thermo King, przewoźnik, chińska marka	Czas dostawy:	25 dni
Gwarancja:	1 rok	Logo:	Zgodnie z żądaniem klienta
Podkreślić:	SINOTRUK HOWO Fruit Transport Truck , Thermo King Refrigerator Fruit Transport Truck , SINOTRUK HOWO Meat Transport Truck

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Specification

Condition	New condition/Left hand drive/4x2/with A/C
Chassis	Brand		HOWO
	Curb weight(kg)		2740 kg
	Payload(kg)		5000kg
	Wheelbase(mm)		3360 mm
	Dimensions(mm)		599525003250 mm for 5Tons 6980X2500X3250 mm for 7Tons
	Front/Rear axle loading(kg)		2400/4200 kg for 5Tons;
	Front/Rear overhang(mm)		1160/1545 mm
	Wheel track (front/rear) (mm)		1605/1555 mm
	Approach/Departure angle(°)		18/18
	Max. driving speed(km/h)		90 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Hydraulic oil brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6pcs with one spare tire
		Specifications	7.00R16 for 5Tons;
Transmission	Manual type, WLY6T46,6 Forwards and 1 reverse
Engine	Brand		Yunnei Engine
	Model		YN4102QBZL
	Fuel type		Diesel
	Displacement(ml)		3760ml
	Power(kw)		85 kw
	Horsepower(HP)		116 HP
	Maximum torque(N.m)		220 N.m
	Maximum torque speed(rpm)		1700 rpm
	Minimum fuel consumption under full load		≤224g/kW.h
	Cylinder number		4 pcs
	Emission standard		Euro III
Upper Refrigerated Box
Box of	1. Box Size of 5Tons: 410017401750 mm; 2. Box Material: glass epoxy in the surface; Foam in the middle . 3.Thickness of side ,top ,front ,rear 80mm; 4.Inside bottom: Aluminum pattern plate
Refrigerating System	1. Working temperature range:-18℃ -0℃ 2. Refrigerating unit brand and model: USA brand Thermo King KV300 for 5Tons;
Remarks	Color is optional

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 0

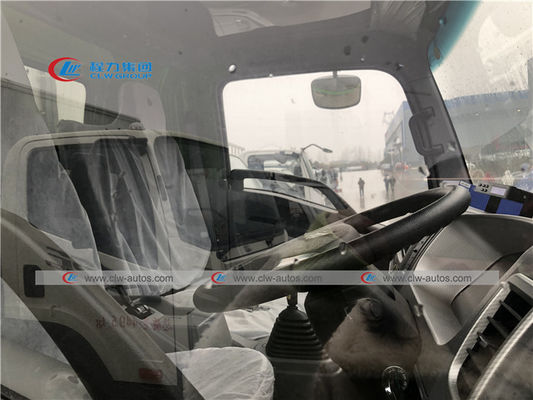

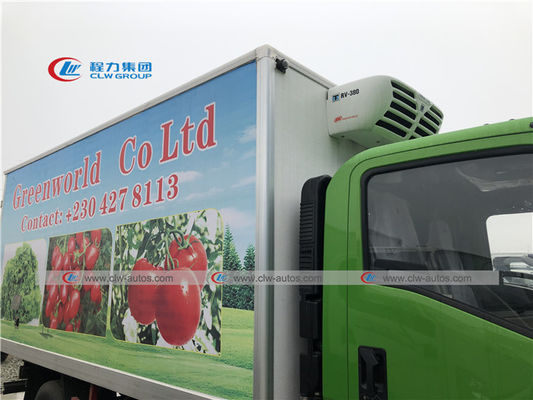

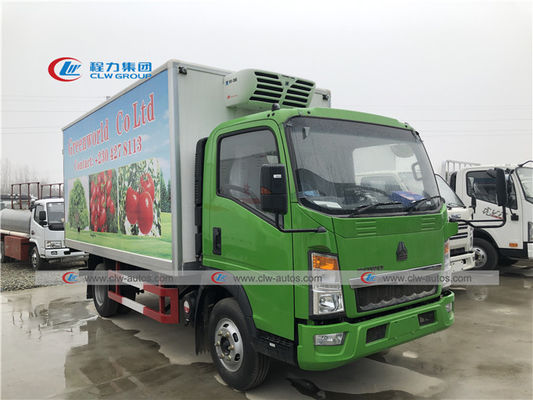

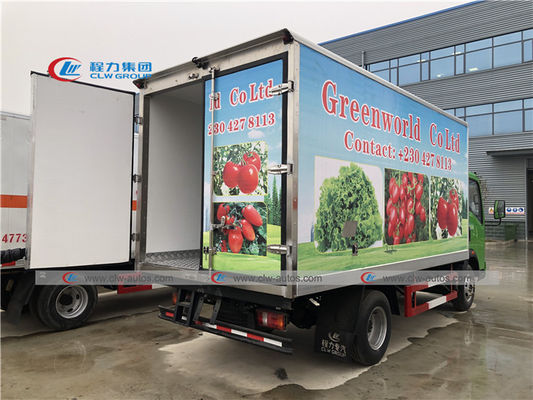

Details for refrigerated van truck

SINOTRUK HOWO Refrigerated Van Truck Thermo King Refrigerator Unit Meat Fish Vegetable Fruit Transport Truck 3

Optional parts

Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Product Show
