Sinotruk HOWO 4*2 15m3 15000Liters 12000L Liquid Propane Gas Bobtail 15cbm 7.5ton 6mt LPG Tank Truck
Product Description
LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
With different design,you can choose volume flow meter or lpg dispenser for your truck. The lpg dispenser is widely used for filling home cylinders.It can be measured by filling weight or filling volume and it can offer receipt in english,french or spanish as required. With above lpg bobtail,you can start lpg filling business easily.
1. Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2. Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,
3. Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck
4. Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5. Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.

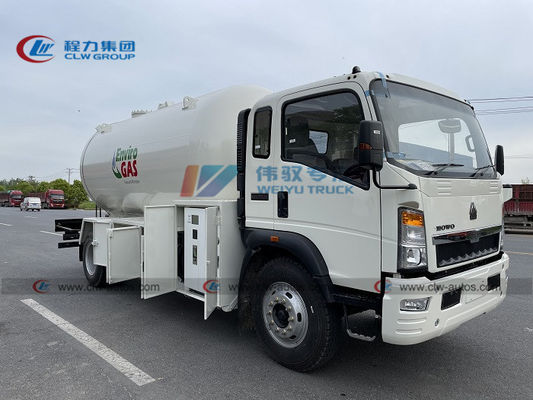

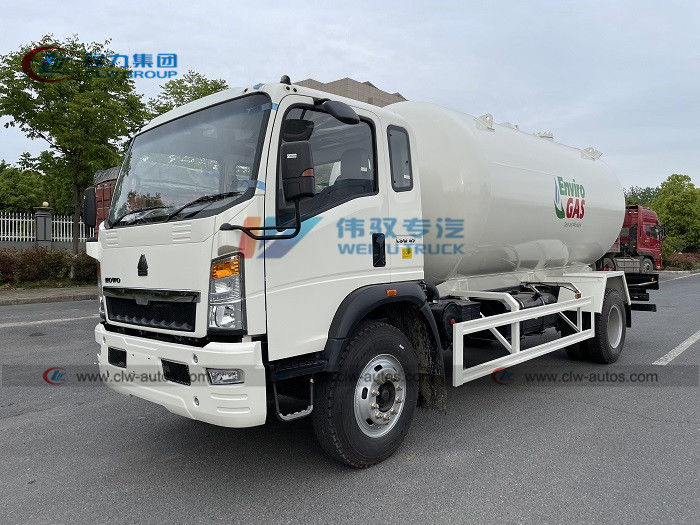

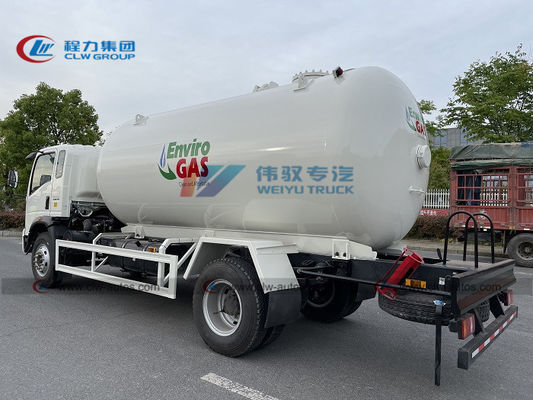

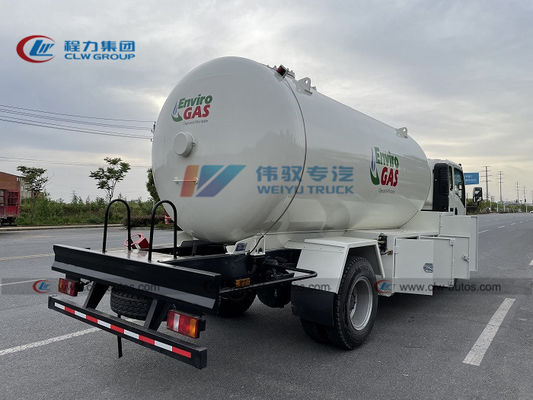

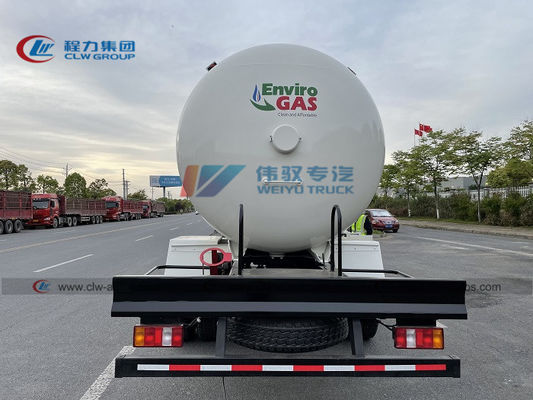

Reference Photos
Product Specifications
| Item No. |
Parameters |
| Overall Dimension |
7600x2300x2980 mm |
| Driving Model |
Left hand drive or right hand drive |
| Gross Vehicle Weight |
11460 kg |
| Curb Weight |
6460 kg |
| Payload |
5000 kg |
| F/R Axle Loading |
3200/8000 kg |
| Wheel Base |
4200 mm |
| Front/rear Tread |
1886/1845 mm |
| Approach/Departure Angle |
27/20 degree |
| Engine |
Yuchai 4110,YC4E160-33 |
| Engine horsepower |
160 HP EUROIII |
| Displacement |
4260mL (Diesel) |
| Max Driving Speed |
95 km/h |
| Gear Box |
DC6J65TC,6 forward& 1 reverse |
| Cabin |
2~3 Passenger allowed,with A/C |
| Tire |
8.25R20 (6 pc with 1 spare) |
| LPG tank |
|
| Volume: |
8~10cbm |
| Tank material: |
Q345R |
| Tank diameter: |
1800mm |
| Tank thickness: |
10mm |
| End plate |
10mm |
| Tank length: |
As designed |
| Gas phase |
DN50 |
| Liquid Phase |
DN50 or DN80 for option |
| Filling gas |
Propane(LPG) |
| Design Pressure: |
1.61Mpa |
| Accessory |
| Level Gauge |
Manual rotation type,at the rear of tank |
| Safety Valve |
1,DN80 |
| Tool and Valve Box |
1 |
| LPG pump |
1 |
| LPG Volume Flow Meter |
1 |
| Filling Hose |
15 meters |
| Filling Nozzle |
1pc,Standard for 12.5kg cylinder |
| Thermometer |
1 |
| Pressure Gauge |
1 |
| Emergency Valve |
1 |
| Fender |
Steel |
| Fire Extinguisher holder |
2 |
| Exhaust shaft |
At the front of truck for safety |
Two Types of Dispenser for Optional
Manufacturing Process
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
