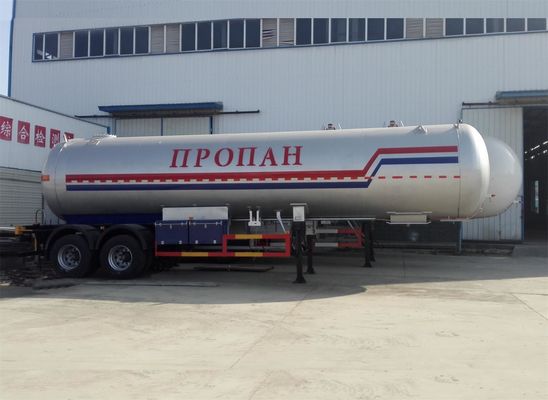

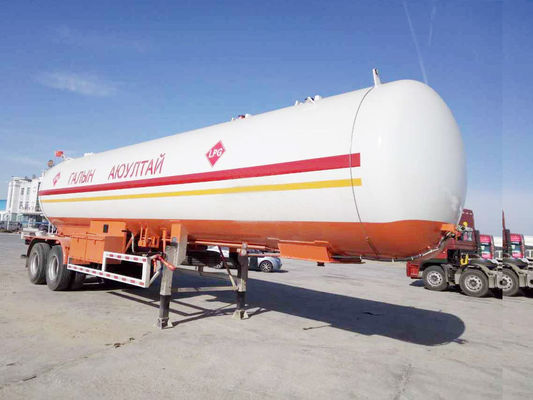

20T Propane Deliver Tank Trailer in 40000Liter Horizontal Bullet Tanker Capacity
Product Description
1) LPG Propane Tank Perfect Choice for Narrow Road and Crowded Area Transport
2) Designated Country: Bangladesh, Mongolia, Vietnam, Mymmay, etc
3) Level Gauge: ROCHESTER, MEC, REGO, etc
4) Major Valves: Safety Release Valve,Emregency Cut-off Valve, Ball for Liquid & Vavle,
5) Gauge: Temperature Gauge, Pressure Gauge,
6) Optional: LPG Flowmeter, LPG Discharging Hose in 4meters
Specifications of 20T Propane Deliver Tank Trailer in 40000Liter Horizontal Bullet Tanker Capacity
| 40 CBM LPG Tanker Trailer |
| Volume of Tank |
40,000 Liter |
| Filling Weight |
18,000 kg |
| Tank Weight |
13,415 kg |
| Tank Diameter (mm) |
2200 mm |
| External Dimensions (mm) (length x width x height) |
13000 x 2500 x 3990 mm |
| Material of Tank and Main Pressure Parts |
Q345R |
| Thickness of Shell (mm) |
12 mm |
| Thickness of Endplate (mm) |
12 mm |
| Filling Medium |
Liquefied Petroleum Gas ( Propane) |
| Corrosion Allowance |
1 mm |
Filling Ratio |
500-560 kg / cbm |
| Design Pressure |
1.61 MPa / 16.1 Bar |
Hydraulic Test Pressure |
2.22 Mpa / 22.2 Bar |
| Working Pressure |
1.61 Mpa / 16.1 Bar |
Air Tightness Test Pressure |
1.71 Mpa / 17.1 Bar |
| Chassis Specification |
| Item |
Specification |
| Main Beams |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes |
| Axle |
2 pieces of 13Ton German Brand BPW Axle, |
| Landing Gear |
JOST Two-speed, manual operating, heavy duty landing gear |
| King Pin |
JOST 2”standard bolt-in king pin |
| Suspension |
German design mechanical suspension |
| Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Tire |
11.00R20 tire, 8 Pieces with 1 Spare |
| Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Nozzle Specification |
| Liquid Inlet & Outlet Coupling |
2 No, 2" Flange Type |
| Vapour Coupling |
1 No, 2" Flange Type |
| Safety Relief Valve |
1 Nos., 2” NPT, |
| Excess flow internal valve for liquid inlet &outlet |
2 No., 2” NPT, |
| Excess flow internal valve for vapor |
1 No., 2” NPT |
| Pressure gauge |
1 No., 3/8”or ¼’’NPT, 4” Dial 0-35 Kg/cm2, |
| Needle valve for pressure gauge |
1 No., 3/4” NPT, |
| Temperature gauge |
1 No., ½ ” BSP,4” Dial 0-100 0C, |
| Rotor gauge |
1 No., 1” NPT, |
| Ball valve for liquid inlet & outlet |
2 No., 2” Single Piece Full Bore Class 300 |
| Ball valve for vapor line |
1 No., 2 ” Single Piece Full Bore Class 300 |
| Manhole |
DN 450MM |
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
