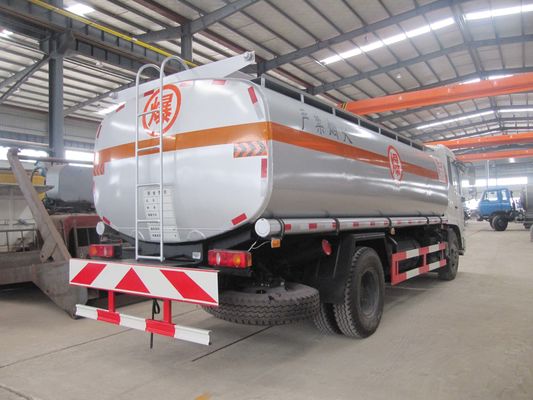

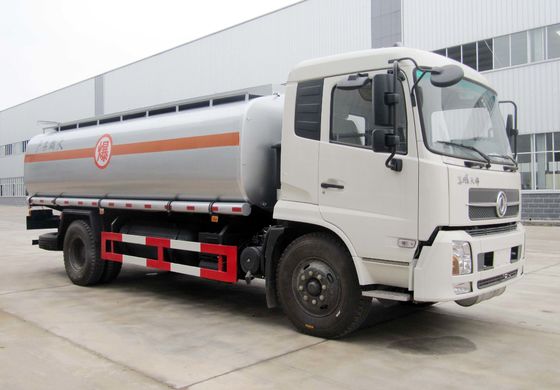

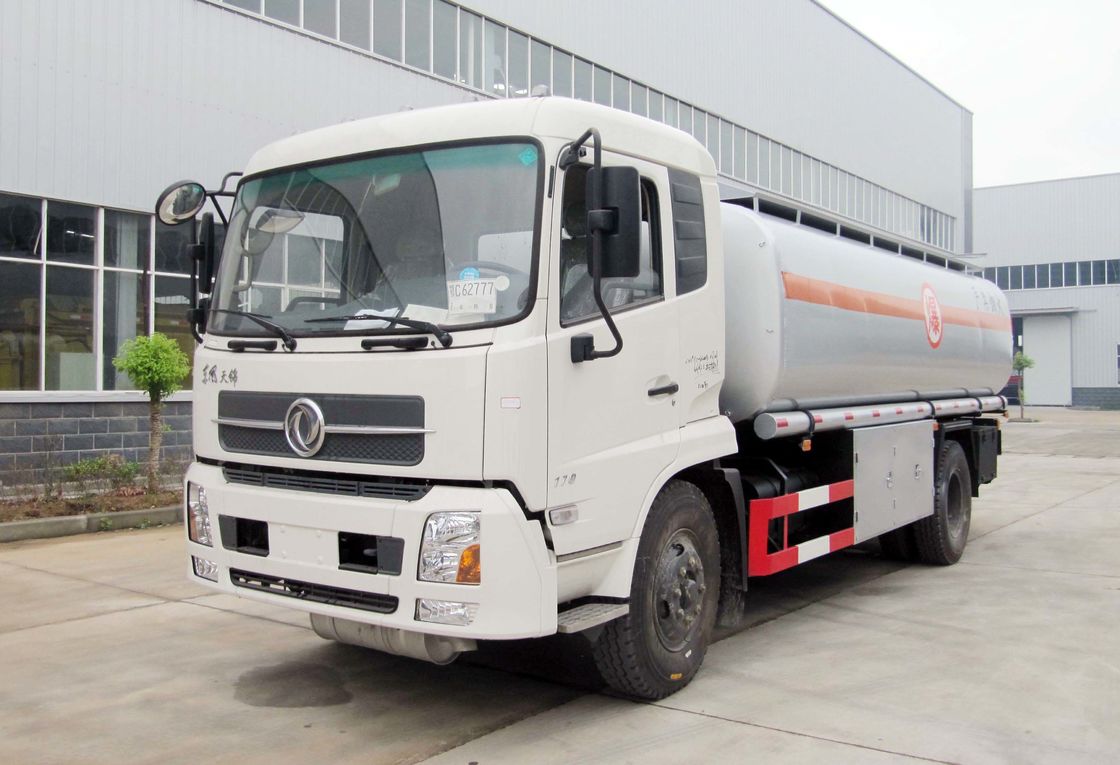

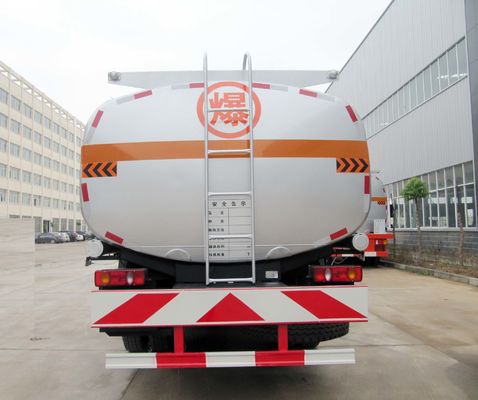

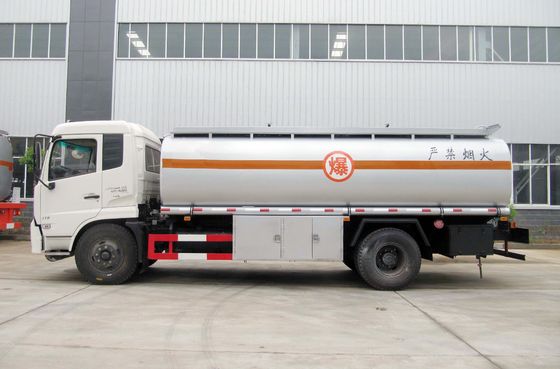

Oil Dispenser Fuel Delivery Truck Q235 Carbon Steel Material Left Hand Driving

Duży Obraz : Oil Dispenser Fuel Delivery Truck Q235 Carbon Steel Material Left Hand Driving

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,BV,SGS
Numer modelu:	clw5070

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	20 ~ 25 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	1000 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stal węglowa Q235	Grubość materiału:	4mm do 5mm
Pojemność czołgów:	14000 litrów, 14 m3, 14 CBM	Ładowanie wagi:	10 ton, 10 ton, 10 ton
Marka ciężarówek:	Marka ISUZU	Opona:	10.00R16, 10.00-16
Kabina:	Jazda lewą ręką	SILNIK:	Cummins
Skrzynia biegów:	Szybkie 8 do przodu i 1 do tyłu
Podkreślić:	gasoline tanker truck , oil tanker semi trailer

10Ton Fuel Delivery Tank Truck in Dongfeng Kingrun 14m3 Oil Dispenser Tanker Truck

Product Description

Famous Dongfeng Kingrun Chassis with Cummins Engine & Fast Gearbox
Good Quality Tank with different capacity for choice: 10,000 liter to 16,000Liters
API Manhole, Emergency cut-off Valve,
Optional Bottom Discharge, Vapor Recovery system.

Oil Dispenser Truck:

Mobile Oil Station Supplying to Trucks & Cars
Pump, Dispenser, Filling Guns All in Only Unit
PTO Drive High Efficiency Oil Pump
Good Quality Oil Dispenser Powered by Truck Electricity

Tanker Capacity:

3,000 liters to 40,000 liters Per Customer Request.

Specifications of 10Ton Fuel Delivery Tank Truck in Dongfeng Kingrun 14m3 Oil Dispenser Tanker Truck

15 CBM FUEL TANKER DIMENSIONS
Overall Dimension	8000x2500x3200 mm
Gross Vehicle Weight	18000 kg
Curb weight	7970 kg
Loading Weight	10030 kg
Wheel Base	4700 mm
Front/Rear Tread	1995 / 11820 mm
Front Axle	5,000 kg Elliot type, I beam section
Rear Axle	10,000 kg Single reduction , ratio 5.286
Approach/Departure Angle	18 / 15 degree
Engine	Dongfeng Cummins B190 33, 6-cylinder in line, 4-stroke, Water-cooled, Turbo-charged & inter-cooled, Direct Injection
Engine horsepower	190 HP Euro II
Displacement	5.9 L(Diesel)
Full loading Fuel Consumption Rate	Maximum 193 g/kW.h
Gear Box	FAST 8Forward Gear & 2 Reverse Gear, High and Low Shifting
Max Driving Speed	90 km/h
Cabin	2 Passenger Allowed with 1 sleeper, Left Hand Driving, With Air Conditioner, White color
Tire	11.00-20, 6 pieces with one spare tire
Tank Capacity	14,000 Liters
Tank Material	Q235 high tension steel, 5mm thick carbon Steel, With 2 separated compartment, Customized tank color, can also paint customer's logo or advertisement.
Main Parts	2 Ball Valves in each compartment for gravity discharging. Separated pump system driven by power take office. Oil or water can be sucked into the tank and out of the tank.

Specification of Oil Dispenser
Flow Rate:	5L/min - 60L/min	Maxmium Allowed Tolerance	+/-0.3%
Power:	DC10V-DC30V	Working Temperature:	-20 to 50 ℃
Working Humidity:	30%-90%	Working Pressure:	1.8-2.0 Bar
Hose Material:	Black Rubber
Hose Length:	6 Meter (Length can be longer as per request)
Digit Display ( Single Filling)	Unit Price:	0.00-9.99 L/USD	Volume Unit & Currency can be changed as request,
	Filling Volume:	0.00-9999.99 Liters
	Price Amount:	0.00-9999.99 USD
Digit Display ( Total Filling)	Filling Volume:	0.00-999999.99 Liters
Digit Display ( Total Filling)	Price Amount:	0.00-999999.99 USD

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?

A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?

A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
