Narrow Street Sweeping Broom Sweeper Truck With 3.5M3 Vacuum Dust Tank

Duży Obraz : Narrow Street Sweeping Broom Sweeper Truck With 3.5M3 Vacuum Dust Tank

Szczegóły Produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	CLW / Chengli
Orzecznictwo:	CCC,ISO,
Numer modelu:	CLW5100ZYST3

Zapłata:

Minimalne zamówienie:	1
Cena:	$19500 ~ $29850/Unit
Szczegóły pakowania:	Naga paczka z woskiem
Czas dostawy:	20-30 dni
Zasady płatności:	L/C, D/A, D/P, T/T, MoneyGram, Western Union
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Materiał pudełkowy:	Stal węglowa Q235B	Marka ciężarówek:	Dongfeng
Silnik ciężarówki:	Cummins	Skrzynia biegów:	Szybkie 8 do przodu i 1 do tyłu
Opona:	7.00-16, 7.00R16	Oś:	Oś przednia 5 ton i oś tylna 10 ton
Podkreślić:	street sweeper vacuum truck , street cleaner truck

5CBM Road Sweeper Truck with 3.5M3 Vacuum Dust Tank for Narrow Street Sweeping

Product Description

5CBM Road Sweeper Truck with 3.5M3 Vacuum Dust Tank for Narrow Street Sweeping

1. Dongfeng Chassis: Chaochai Engine 95HP,

2. Heavy Duty Garbage Bin with different size options: 4000L to 18000L (4CBM to 18CBM)
2. Hydraulic Control Loading & Unloading System
3. Leakage Proof Devise to contain Sewage Water Inside
4. Automatic Key Control & Hydraulic Handle Control
5. Best Choice for Garbage Transporation Inside City.

Specifications of 5cbm road sweeper truck with 3.5M3 Vacuum Dust Tank for Narrow Street Sweeping

Dongfeng 5CBM Road Sweeper Truck
Condition	New condition/Right hand drive/4x2
Chassis	Brand			DONGFENG
	Curb weight(kg)			100kg
	Wheelbase(mm)			3300 mm
	Dimensions(mm)			6300 x 2000 x 2600 mm
	Overhang (front/rear) (mm)			1032 / 1868
	Wheel track (front/rear) (mm)			1506 / 1404
	Approach/Departure angle(°)			19/12
	Axle Load(kg)			2000/4000
	Max. driving speed(km/h)			90 km/h
	Tire	Specifications		6pcs with one spare tire
		Number		7.00-16
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 6 Forwards & 1 Reverse
Cabin	Left Hand Driving, 2 Passenger Allowed, with A/C
Engine	Model				Chaochai Diesel Engine, 4 Cylinders
	Displacement(ml)				3856 ml / cc
	Power(kw)/Horsepower(HP)				73 kw/99 HP
	Emission standard				Euro 4
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank		Tank material		Stainless steel 304
			Tank volume(cbm)		1.5 CBM
	Water tank		Tank material		Stainless steel 304
			Tank volume(cbm)		3 CBM
Auxiliary engine	Model		JMC Engine 77HP
	Power(kw)		57 kw
Brush	Quantity(pc)		4 pcs
	Working area(m)		2.7-2.8 m
Remarks	1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements.

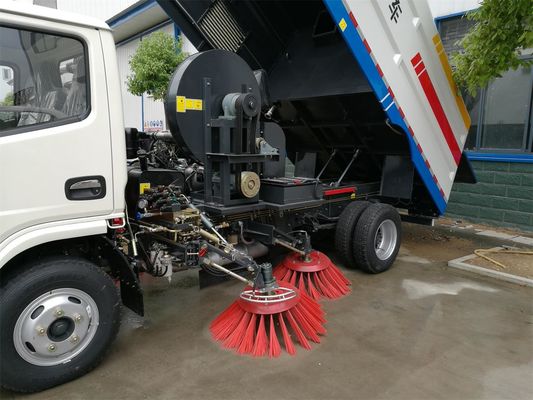

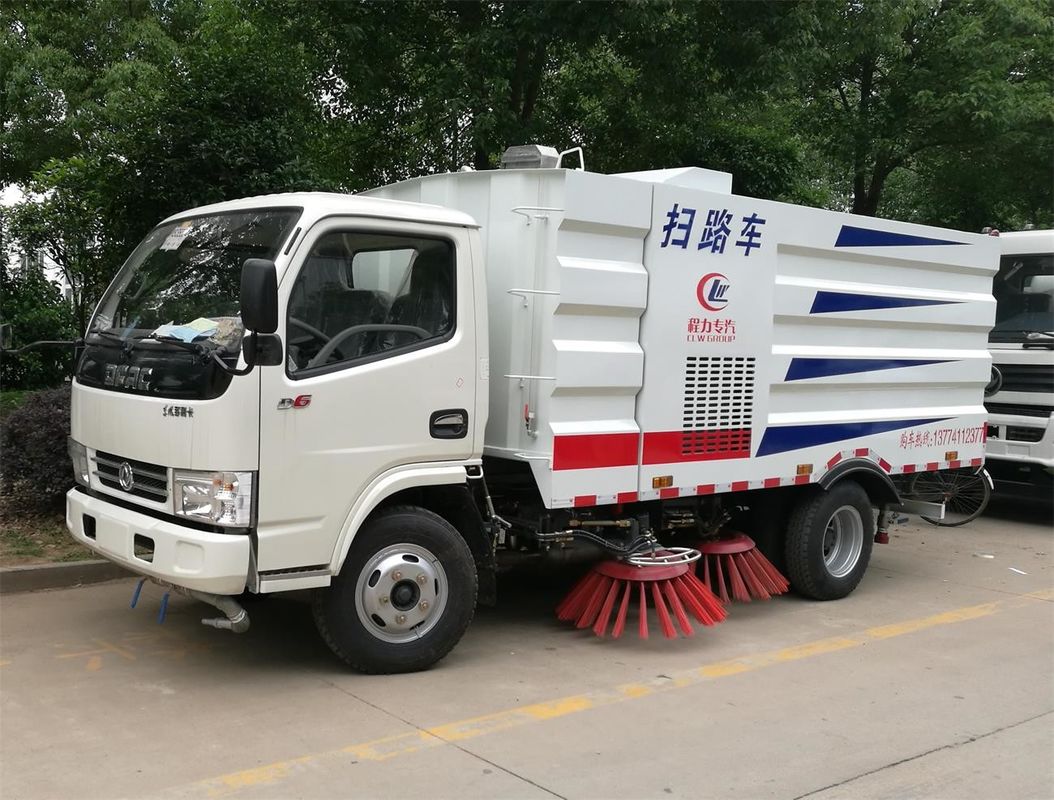

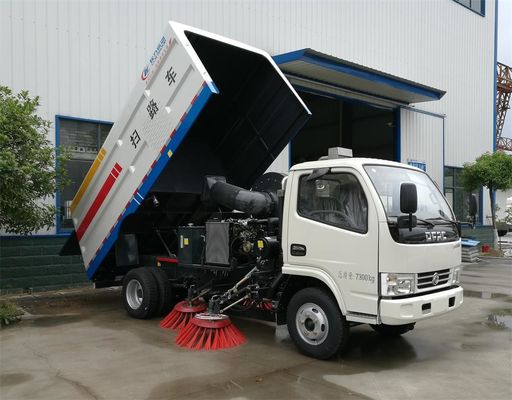

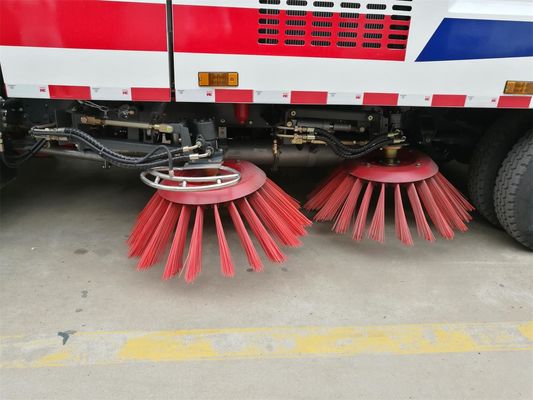

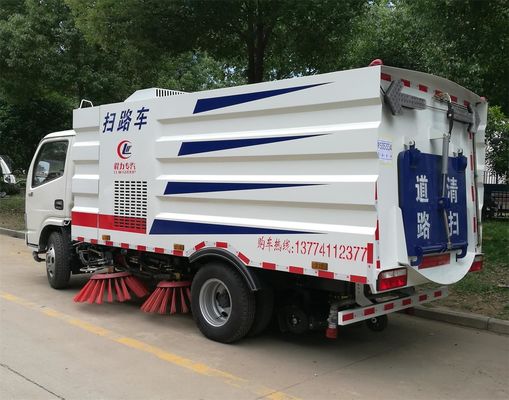

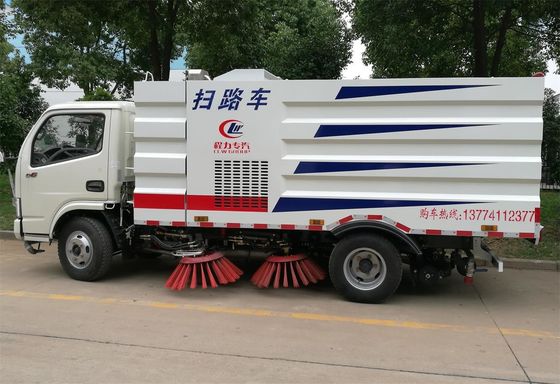

Product Photos

Narrow Street Sweeping Broom Sweeper Truck With 3.5M3 Vacuum Dust Tank 0

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipmen

FAQ

Q1: What kinds of garbage trucks I can order from your company?

A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied garbage truck to any overseas companies?

A: Yes,with need of garbage waste transport,we offered garbage trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
