HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Dom ProduktyCiężarówka zamiatająca drogi

Dongfeng 9m3 Road Sweeper Truck With Cummins Engine

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

Dongfeng 9m3 Road Sweeper Truck With Cummins Engine

Dongfeng 9m3 Road Sweeper Truck With Cummins Engine
Dongfeng 9m3 Road Sweeper Truck With Cummins Engine Dongfeng 9m3 Road Sweeper Truck With Cummins Engine Dongfeng 9m3 Road Sweeper Truck With Cummins Engine Dongfeng 9m3 Road Sweeper Truck With Cummins Engine Dongfeng 9m3 Road Sweeper Truck With Cummins Engine Dongfeng 9m3 Road Sweeper Truck With Cummins Engine

Duży Obraz :  Dongfeng 9m3 Road Sweeper Truck With Cummins Engine

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Chiny
Nazwa handlowa: CLW
Orzecznictwo: CCC, SGS, BV
Numer modelu: CLW5145

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: negotiable
Szczegóły pakowania: Nagi, woskowany, statek masowy, ro-ro
Czas dostawy: 30-35 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 500 jednostek/miesiąc
Szczegółowy opis produktu
Marka podwozia: Dongfeng, ISUZU, Howo, Foton, JAC itp. Wymiary: 8900*2600*3300mm
Moc silnika: Cumminsa o mocy 170 KM Silnik pomocniczy: Cumminsa o mocy 140 KM
Zbiornik na kurz: 7CBM, 7cbm itp. Stal nierdzewna 304 Zbiornik na wodę: 2CBM, 2cbm itp. Stal nierdzewna 304
Tworzywo: Stal nierdzewna Prowadzenie ręczne: Kierownica z lewej strony lub kierownica z prawej strony
Działanie: Samozaładunek i rozładunek Maks. Możliwość operacyjna: 40000-80000 M2/godz
Max. Maks. Working Width Szerokość robocza: 2,8 m-3,5 m Malowanie kolorów i logo: Zgodnie z wymaganiami klienta
Gwarancja: 1 rok
Podkreślić:

9m3 Road Sweeper Truck

,

Dongfeng Road Sweeper Truck

,

Cummins Engine Street Sweeper Truck

Dongfeng 9m3/9cbm/9000litres Road Cleaning Sweeper Truck
Description:

1. Main parts: stainless garbage bin, water tank, Italy hydraulic oil pump, germany magnetic valve, french Schneider eletronic control unit, auxiliary engine, suction panel, sprinkler system, brush.

2. Struture of sweeper truck: two sweeping brushes in middle+wide suction nozzle and high pressure sprinker nozzles in middle+high pressure sprinkler nozzle at left and right side".

Most sweepers have the option of a hydraulic powered gutter broom on one or both sides of the truck and others use the broom inside the pickup head or dust suppression systems which agitate and move debris out of the curb edges and into the path of the truck while preventing dust


Specification:

Item Parameter
Working Performance Max sweep width 3.0m
Sweep speed 3-20km/h
Max sweep capacity 60000m2/h
Max inhalation of granularity ≥110mm
Angle of unloading ≥45°
Volume of water tank 4000L
Volume of garbage tank 5000L
Driving Performance Max speed 90km/h
Max gradeability 30%
Braking distance ≤10m
Min turning diameter ≤13.6m
Fuel Performance Fuel consumption(Driving) ≤12L/100km
Fuel consumption(Sweep working at 8km/h) 6.5L/h
2.7L/10000m2
Quality Parameters Curb weight 6000kg
Rated capacity 6000kg
GVW 12000kg
Dimension Parameter Overall dimensions 7000*2200*2700mm
Wheelbase 4500mm
Track front 1504mm
Track rear 1530mm
Front suspension 1070mm
Rear suspension 1580mm
Approach angle 24°
Departure angle 13°
Minimum Ground Clearance



Reference Photos

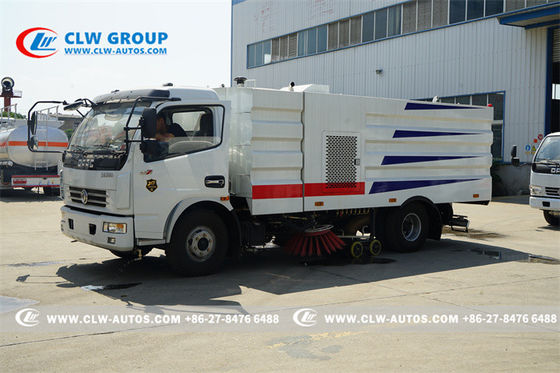

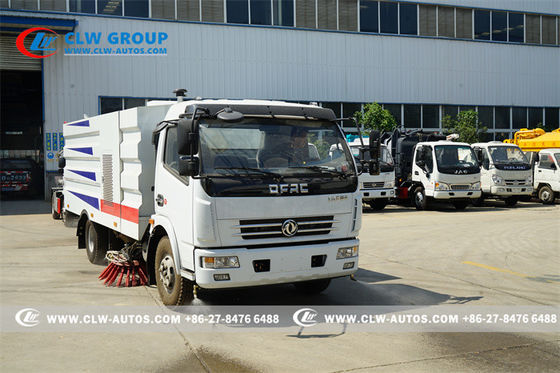

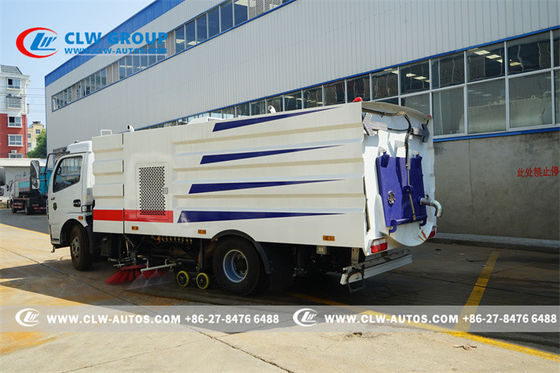

Dongfeng 9m3 Road Sweeper Truck With Cummins Engine 0Dongfeng 9m3 Road Sweeper Truck With Cummins Engine 1Dongfeng 9m3 Road Sweeper Truck With Cummins Engine 2





Truck diagram

Dongfeng 9m3 Road Sweeper Truck With Cummins Engine 3

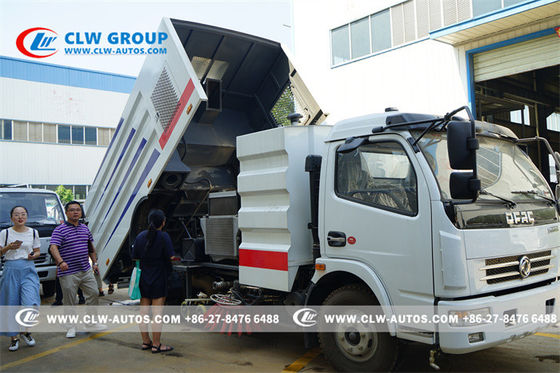

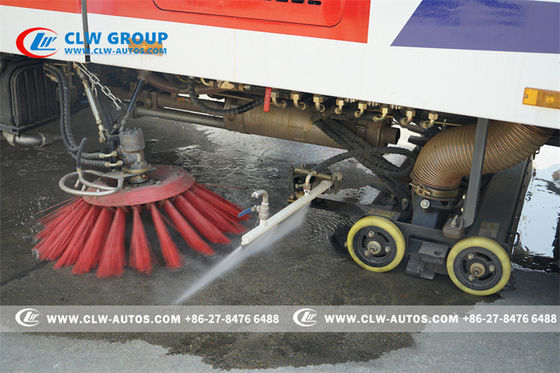

Main Details
Dongfeng 9m3 Road Sweeper Truck With Cummins Engine 4

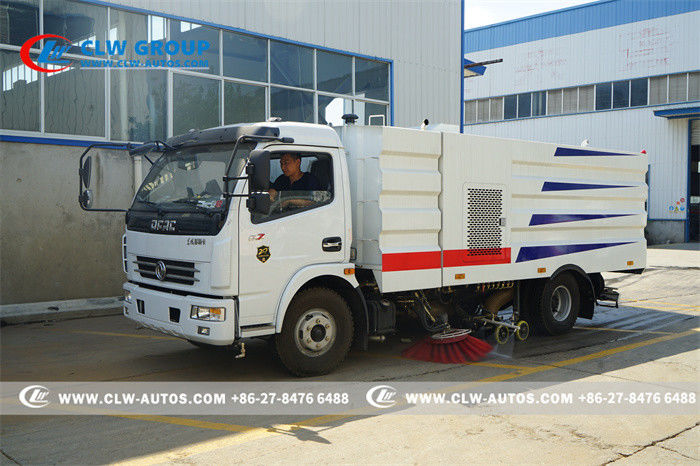

Working Scene
Dongfeng 9m3 Road Sweeper Truck With Cummins Engine 5



Sales Service


1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ



Q1: What kinds of dust vacuum suction trucks I can order from your company?

A: There are various sizes of dust vacuum suction trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dust vacuum suction trucks to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many South America, Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.





Warranty



1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
