3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish

Duży Obraz : 3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC, SGS, BV, ASME
Numer modelu:	CLW5056A

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, Ro-Ro
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Materiał furgonetki:	Kolorowa tablica wewnątrz, FRP na zewnątrz furgonetki, środek z pianki poliuretanowej	Grubość zewnętrzna Van:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Grubość warstwy pośredniej Van:	80 mm 100 mm 120 mm	Grubość wewnętrzna Van:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Ładowanie wagi:	3-5 ton	Model lodówki:	Thermo King, Carrier, Hanxue, Huatai, Hana
Marka podwozia:	Isuzu, Dongfeng, Foton, Howo itp.	Model napędu:	4x2/6x4/8x4; Zgodnie z rozmiarem super struktury
Rozstaw osi:	3300 mm 3800 mm 4500 mm 4700 mm 5600 mm; 4300+1350mm; 1350mm+4300+1350mm	Gwarancja:	1 rok
Podkreślić:	refrigerated delivery truck , frozen meat delivery trucks

3-5 tons, ISUZU 4×2, Refrigerated Van Truck for meat/fish/vegetable/vaccinum

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Product Show

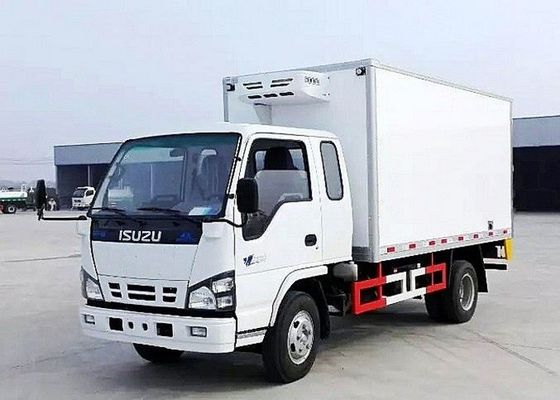

3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish 0

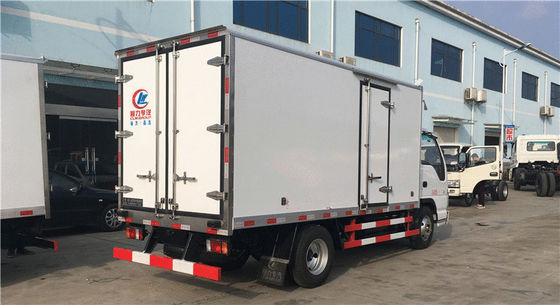

3-5 Tons ISUZU 4×2 Refrigerated Van Truck , Freezer Box Vehicle For Meat / Fish 1

Product Specification

General Technical Parameters
Overall Dimension		5995×2130×2960(mm)		Gross Vehicle Weight	8300(Kg)
Curb Weight		3210(Kg)		Loading Weight	5000(Kg)
Chassis Specification
Item No.			Parameters
Chassis Brand			ISUZU 120P
Cabin			Single, Left Hand Driving, with ABS
Engine	Model		4KH1-TCG40, 4 Cylinders
	Power		88KW/120HP
	Emission standard		EUROIV
	Displacement		2999(ml)
	Fuel type		Diesel
Gearbox			5 Forward & 1 Reverse Gear
Brake System			Pneumatic
Steering Gear			Power Assistant
Wheel Base			3360(mm)
Front/Rear Tread			1504/1425(mm)
Front/Rear Axle Loading			2000/4800(Kg)
Approach/Departure Angle			24/16(°)
Tire			7.00-16
Max Driving Speed			100(km/h)
Superstructure
Van	Box Dimension		409519001800(mm)
	Refrigerator Model		Thermo King, KV300
	Van Material		Color plate inside, FRP outside of the van, polyurethane foam middle
	Back Door		The opening of the door can be different directions
	Normal Temperature		0° C— -18 °

Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
