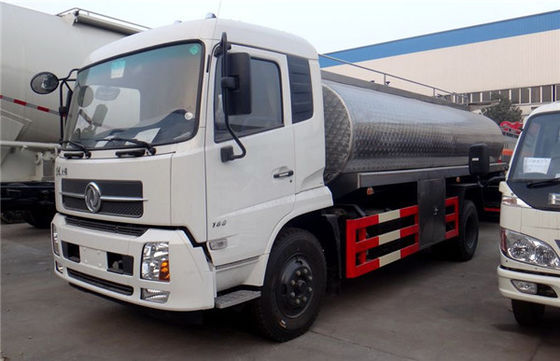

Dongfeng 4X2 10,000Liters Stainless Steel Tank Milk Delivery Truck Insulation Milk Truck
Product Description
1) Material of milk delivery truck: milk tank is divided into three layers as follows:
A: Outside protecttion layer--2mm 304L stainless steel plate
B: Inner 80mm insulation PU foaming layer and ensure temperature range less than 1 ℃ in 24 hours.
C: Inner tank with food grade 304-2B stainless steel plate
All welding lines are polished and grided to ensure a bright and clean inner milk tank.
2) Milk tank of milk delivery truck can be divided into several compartments according to your request
with independent discharging outlet and loading inlet.
3) Tank of milk delivery truck is equipped with PIC automatic cleaning and washing system,360 degree rotation
4) Optional for refrigerator,flow meter,level gauge,safety lock,anti-leakage device or rock wool insulation
Specifications of 10CBM Milk tank truck 10tons fresh milk tank truck 4000 gallons tank truck for transporting milk as below
| Condition |
New condition/4x2/LHD/RHD |
| Chassis |
Curb weight(kg) |
7980 |
| G.V.W.(kg) |
15800 |
| Wheelbase(mm) |
4700 |
| Overall Dimension |
8400×2460×3100 |
| Tank Outside Dimensions(mm) |
5700×2000×1400 |
| Tank Inner Dimensions(mm) |
5500×1800×1200 |
| Overhang (front/rear) (mm) |
1430/2160 |
| Approach/Departure angle(°) |
20/18 |
| Axle Load(kg) |
4500/9000 |
| Max. driving speed(km/h) |
90 |
| Brand |
Dongfeng |
| Model |
DFL |
| Tire |
Number |
6+1pcs |
| Specifications |
9.00R20 |
| Clutch |
Reinforced diaphragm clutch |
| Cab |
3 |
| Engine |
Model |
ISB180 50 |
| Displacement(ml) |
5900 |
| Power(kw) |
180 |
| Emission standard |
Euro 3 |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels |
| Auxiliary brake: engine exhaust valve brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tank |
Capacity(m³) |
10 |
| Tank material |
Stainless steel 304-2B |
Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
