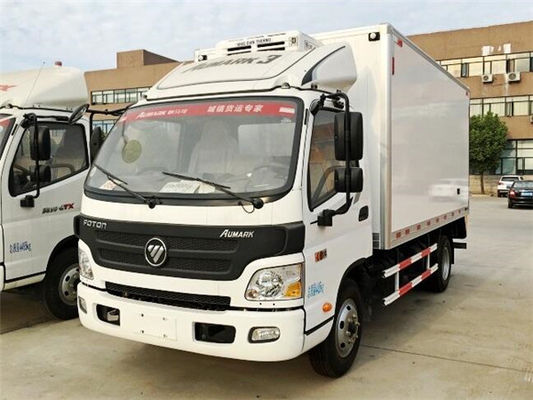

FOTON 130HP 4x2 2Ton Carrier Cooler Refrigerator Van Truck for Meat and Fish
Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Product Specification
| Chassis brand |
FOTON |
| Cabin |
Single row, 2 seats |
| Overall dimension (L*W*H)(mm) |
5995x2320x3350 |
| Van dimension (L*W*H)(mm) |
4085x2100x2100 |
| Wheel base |
3360 mm |
| Drive type |
4x2, left hand drive |
| GVW |
4495 kg |
| Curb weight |
2805 kg |
| Rated payload weight |
1495kg |
| |
Engine make |
Cummins |
| Rated power |
96kw / 130 HP |
| Displacement |
2780 ml |
| Emission standard |
Euro 3/4/5 |
| Type |
Diesel engine, 4-cylinders in line, water cooling |
| Brake |
Air brake |
| Gear box |
5 speed forward, 1 speed reverse |
| Tire type / number |
7.00-16, nylon tire / 6+1 |
| Rear axle |
Front axle |
2000kg |
| Rear axle load |
2495kg |
| Rated voltage(V) |
24 |
| Capacity of the fuel tank (L) |
80 |
| Cooler unit brand |
USA brand(Carrier/Thermo King) |
| Refrigerator unit model |
Carrier non-independent |
| Temperature |
-18°~6° |
| Door |
Rear opened (optional side door) |
| Freezer box materials |
The refrigerated truck bodies is made of GRP & PU foam with full closed structure that the GRP (Glass reinforced plastic fiber ) outside, and the PU foam in side the core , thickness 8mm |
Opitonal Parts
Ventilation slot Ventilation slot
Temperature and humidity loggers Backup power
Meat hooks and rails Docking rail
Side door Live fish transport equipment
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
