60cbm / 59.52cbm LPG Gas Tanker Truck Mobile Transport Semi - Trailer Truck

Duży Obraz : 60cbm / 59.52cbm LPG Gas Tanker Truck Mobile Transport Semi - Trailer Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,BV,SGS
Numer modelu:	CLW5256GS

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Dongfeng, Sinotruk HOWO, JAC, Foton, Isuzu itp.	Moc silnika:	430 KM
Kształt zbiornika:	Poziomy kształt cylindra	Pojemność czołgów:	59,52 m3
Pojemność zbiornika:	30 ton, 29 ton	Materiał cysterny:	Q345r, Q370r, Q420r, SA516
Grubość zbiornika:	12 mm	Presja projektowa:	1,61 MPa, 16,1 Bara/PSI
Standard produkcyjny:	GB150-2013, ASME VIII DIV 01	Pompa:	Pompa hydrauliczna z napędem WOM
Mierzyciel poziomu:	REGO Rochester lub inne	Miernik przepływu:	Przepływomierz wyporowy
Dodatek korozji:	1,0 mm	Gwarancja:	1 rok
Podkreślić:	bobtail propane truck , propane service truck

Factory Price 60cbm/59.52cbm LPG Mobile Transport Semi-Trailer Truck 30tons Liquid Propane Gas Tank Trailer

Product Description
1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.

Product Specification

Tank Essential Information
Volume of Tank	59.52 CBM (59520Liters / 30Tons)
Overall Dimensions(LWH)	1300025003990 mm
Filling Weight	25000 kg
Tare Weight	15000 kg
Total Weight	40000 kg
Wheelbase	7230+1310+1310 mm
Shell of tank
Products	propene gas
Fluid Property	Flammable
Design Temperature	-20~50ºC
Design Pressure	1.61 Mpa
Corrosion Allowance	1 mm
Major Materials of Bearing Pressure	Tanker body:Q345, 11.5mm
	End plate:Q345R, 11.5mm,double ellipse
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640ºC
Flaw Detection	100% Flaw detection
Test Pressure	1.61Mpa
Hydraulic Test	2.1Mpa
Magnaflux inspection	Aim at welding place that flaw detection can not cover
Manhole(As customer's requirement)	1, on top
Safety Valve(As customer's requirement)	1, on top
Running system
Axles	3*13T BPW
Suspension	Mechanical suspension
Tire	12R22.5 Tubeless tire,13 including one spare tire
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Landing leg	JOST brand, two-speed, manual operating
King Pin	#50 or #90

Reference Photos

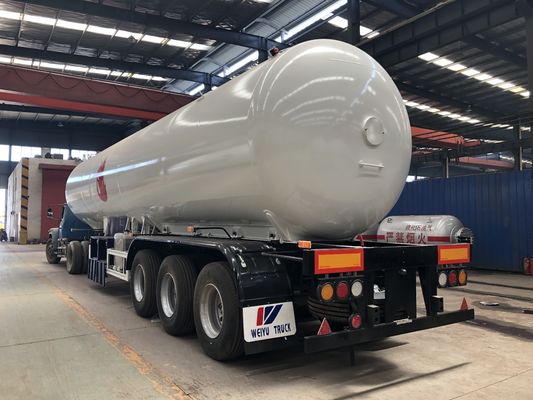

60cbm / 59.52cbm LPG Gas Tanker Truck Mobile Transport Semi - Trailer Truck 0

Different Kinds of Dispenser Machine for Optional

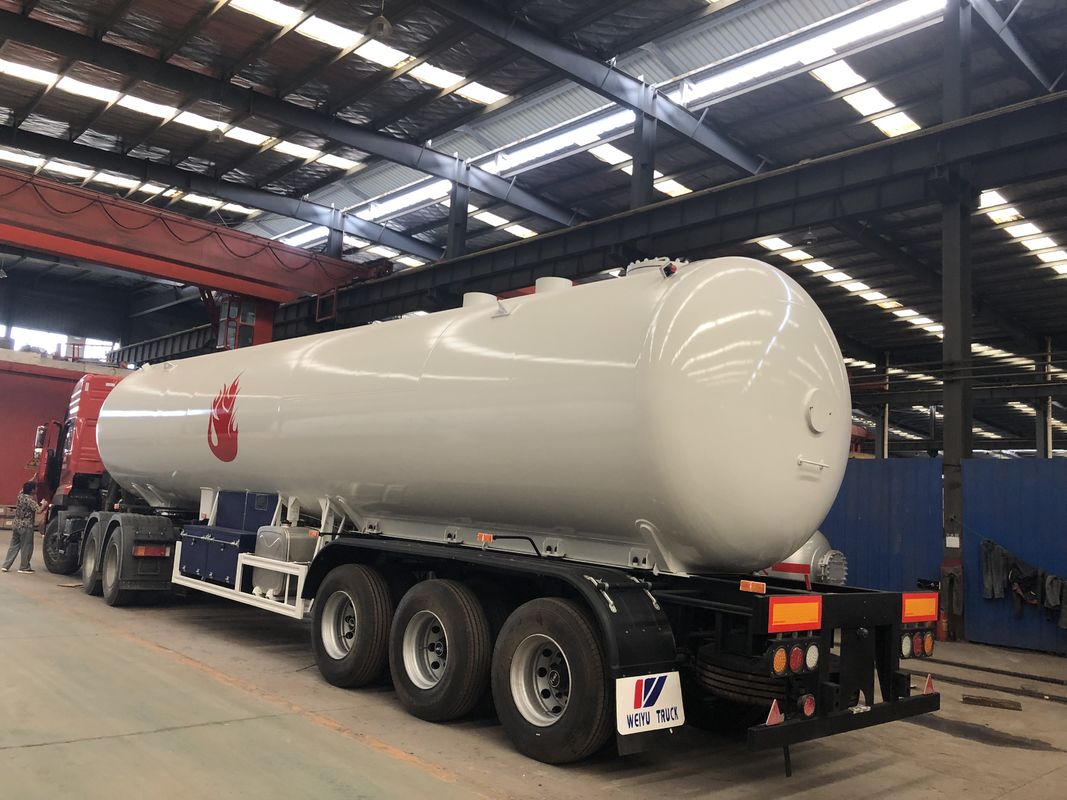

60cbm / 59.52cbm LPG Gas Tanker Truck Mobile Transport Semi - Trailer Truck 1

Manufacturing Process

Delivery and Shipment

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
