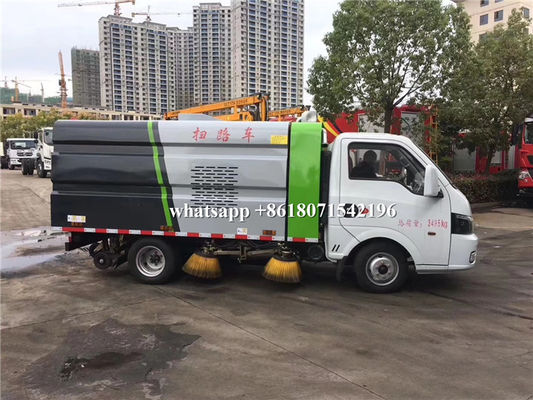

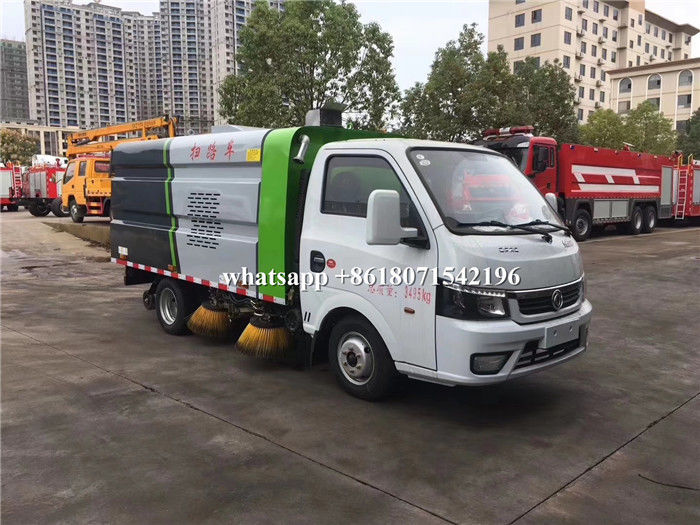

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck

Duży Obraz : Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO,BV,SGS
Numer modelu:	CLW50749

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagie opakowanie
Czas dostawy:	30-35 dni po otrzymaniu zaliczek
Zasady płatności:	T/T, akredytywa
Możliwość Supply:	300 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stal nierdzewna 304	Silnik pomocniczy:	Marka ISUZU
Wentylator:	Bez konserwacji	Tylne światło ostrzegawcze:	Tak
Ssanie próżniowe:	Za Oponą	Pędzle:	4 jednostki
Stosowanie:	Sanityzacja miasta	Kolor:	Niestandardowe malowanie LOGO zgodnie z życzeniem klienta
Podkreślić:	street sweeper vacuum truck , mechanical sweeper truck

Dongfeng Mini Road Sweeper Truck 2.5m3 Street Vacuum Cleaner Truck

Product Description

This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.

Specifications of 2.5CBM Changan Road Sweeper Truck

2CBM Road Sweeper Truck
Condition	New condition/Right hand drive/4x2
Chassis	Brand			Changan
	Curb weight(kg)			2300kg
	Wheelbase(mm)			2600 mm
	Dimensions(mm)			4650 x 1750 x 2250 mm
	Overhang (front/rear) (mm)			1032 / 1868
	Wheel track (front/rear) (mm)			1506 / 1404
	Approach/Departure angle(°)			19/12
	Axle Load(kg)			1500/2000
	Max. driving speed(km/h)			90 km/h
	Tire	Specifications		6pcs with one spare tire
		Number		165R14
Clutch	Reinforced diaphragm clutch
Gear box	Manual type, 5 Forwards & 1 Reverse
Cabin	Left Hand Driving, 2 Passenger Allowed, with A/C
Engine	Model				Diesel Engine, 4 Cylinders
	Power(kw)/Horsepower(HP)				65 kw/88 HP
	Emission standard				Euro 3
Brakes	Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Sweeping System
Tank	Garbage tank		Tank material		Stainless steel 304
			Tank volume(cbm)		2 CBM
	Water tank		Tank material		Stainless steel 304
			Tank volume(cbm)		0.5 CBM
Auxiliary engine	Model		ISUZU Engine 77HP
	Power(kw)		28 kw
Brush	Quantity(pc)		4 pcs
	Working area(m)		2.7-2.8 m
Remarks	1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements.

Details

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 0

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 1

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 2

Dongfeng Mini Road Sweeper Truck 4 Units Brushes Street Vacuum Cleaner Truck 3

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
