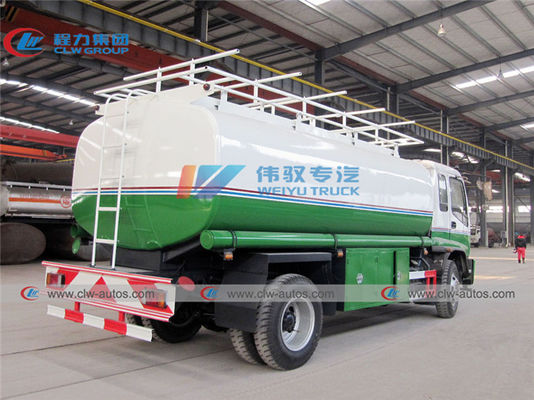

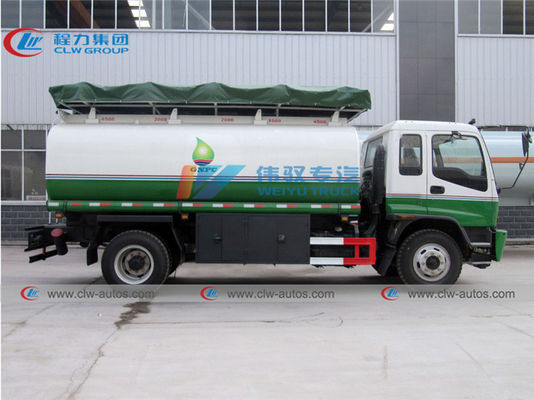

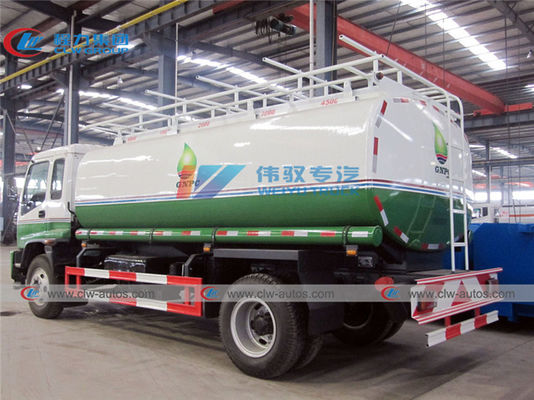

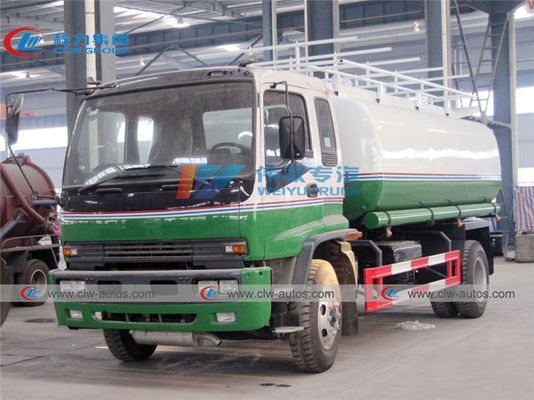

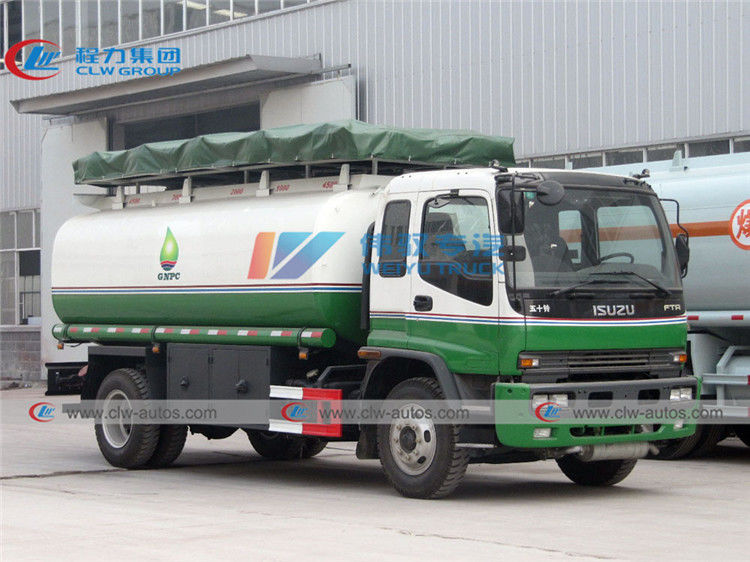

10000L Isuzu Fuel Delivery Truck With Censtar Tokheim Oil Dispensing System

Duży Obraz : 10000L Isuzu Fuel Delivery Truck With Censtar Tokheim Oil Dispensing System

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,BV,SGS
Numer modelu:	clw5070

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	28500USD/unit~42500 USD/unit
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	20 ~ 25 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	1000 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Q235B, Q345	Grubość materiału:	4mm ~ 6mm
Pojemność czołgów:	10000L	Ładowanie wagi:	10 ton
Marka ciężarówek:	Isuzu	Opona:	9.00R20
Kabina:	LHD lub RHD, z klimatyzacją	SILNIK:	Isuzu
Skrzynia biegów:	6 do przodu i 2 do tyłu	Przednia oś:	6.3TON
Tylna oś:	13ton
Podkreślić:	Isuzu FTR Fuel Delivery Truck , 10000L Fuel Delivery Truck , 10t fuel oil delivery truck

10000L Isuzu Fuel Delivery Tank Truck with Censtar Tokheim Oil Dispensing System

Product Description
Brand: ISUZU Diesel Engine, ISUZU Gearbox, 6.3Ton Front Axle & 13Ton Rear Axle

Good Quality Tank with different capacity for choice: 10,000 liter to 16,000Liters
API Manhole, Emergency cut-off Valve,
Optional Bottom Discharge, Vapor Recovery system.

Oil Dispenser Truck:

Mobile Oil Station Supplying to Trucks & Cars
Pump, Dispenser, Filling Guns All in Only Unit
PTO Drive High Efficiency Oil Pump
Good Quality Oil Dispenser Powered by Truck Electricity

Tanker Capacity:

3,000 liters to 40,000 liters Per Customer Request.

Specifications of 10000L Isuzu Fuel Delivery Tank Truck with Censtar Tokheim Oil Dispensing System

Vehicle Description
Overall dimensions	850024903000
GVW	16000kg
Curb weight	7805kg
Chassis brand	ISUZU FTR

Tanker Description
Tank capacity	10-15cbm
Tanker material	Carbon steel
Thickness	Tanker body	5mm
	End cover	5mm
Tanker shape	Square
Tanker compartment	4 compartment (optional: several compartment)
Standard configuration	4 set manhole Equipped with double discharge valve and valve box. Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. Electrostatic conducting tape and double fireextinguishers.
Optional	Tanker material: aluminum alloy; stainless steel Chinese standard configuration is available, or other world famous fuel configuration. The whole set of European configurations for each compartment: European type manhole,over flow probe system, vapor recovery system, bottom valve, API adaptors. Emergency bottom valve and foldable aluminum handrail. Others: fuel pump, refueling dispenser, flow meter,dipstick, etc.

Chassis Description
Chassis model	QL11409MFR
Cab	One and half row, with A/C
Wheelbase	4500mm
Tire specification	10.00-20
Tire quantity	6+1 units
Engine	Engine model	4HK1-TCG40
	Emission level	Euro 4
	Displacement/output	4730ml/140kw
	Horse power	190hp
Gear box	Model	ISUZU MLD
Gear box	Number of gears	6 forward gears& 1 reverse
Brake system	Full air brake
Axle	Front	6.3T
Axle	Rear	13T
Fuel tanker	Type	Stainless steel tanker, with lockable cap
Fuel tanker	Capacity	300L

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
