50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery

Duży Obraz : 50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,BV,SGS
Numer modelu:	CLW5071

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	20 ~ 25 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	1000 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stop aluminium 5083 5454	Grubość materiału:	5mm ~ 6mm
Zamiar:	Inny typ oleju	Kształt zbiornika:	Kwadratowy Okrągły, Owalny, Okrągły
Główna wiązka:	T700	Oś:	Fuwa, BPW
Opona:	Opona bezdętkowa 12R22.5	Marka opon:	Podwójna moneta, trójkąt, Aeolus itp
Rynek wzornictwa:	Rynek afrykański lub azjatycki	Zawór bezpieczeństwa:	Zawór awaryjny sterowany pneumatycznie
Drogi załadunku:	Ładowanie od dołu	Sposób rozładowania:	Rozładowanie dna
Podkreślić:	50CBM Aluminum Fuel Tank Trailer , Aluminum 5083 Fuel Tank Trailer , aluminum 5454 oil tanker truck

50CBM Aluminum Fuel Tank Trailer Light Weight for long distance delivery

Product Description

Rust Resist Tank Design, good for eatible oil delivery, such as palm oil, soybean oil, other type of oil.
Tank Material: Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

Trailer advantages description

More than 20 years professional design and production experience.
Choose Regular manufacturers purchase materials,like Q235 baoshan.
Use Domestic first-class production equipment.
Famouse brand trailer parts used,like bpw/fuwa axle
Triangle/double star/double coin and so on tires,API VALVES.
Strict quality control system ensure that each semi trailer is qualified.

Specifications of Palm Oil Tank Transport Trailer 50CBM Aluminum Fuel Tank Trailer

Tank Body
Shape	Optional ( Round or Square)
Dimension	13500mm2490mm3800mm ( Exact size depends on the final design)
Tare weight	About 8000kg ~ 12000kg
Total Volume(m3)	50m³
Tanker Body Material	5mm or 6mm Aluminum
End Plate	5mm or 6mm Aluminum
Manhole Cover	Cabon steel or API manhole cover, ∮500mm
Bottom Valve	Aluminum API Pneumatic Bottom Valve
Discharging Valve	Diameter is 3 or 4 inch
Compartments	5
Discharging Pipe	4”rubber hose, 2 pcs, 6m/each
Cat Walk	With (Common model or special design)
Chassis
Main Beams	Weldding design , connected by bolts and nuts Q345 carbon steel material
Axle	3 axles,FUWA brand
Landing Gear	CHINA BRAND 28T
King Pin	JOST 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type /air suspension
Leaf Spring	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12 /without
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber(TKL brand); one piece of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo ,RORO or 40HQ Containers

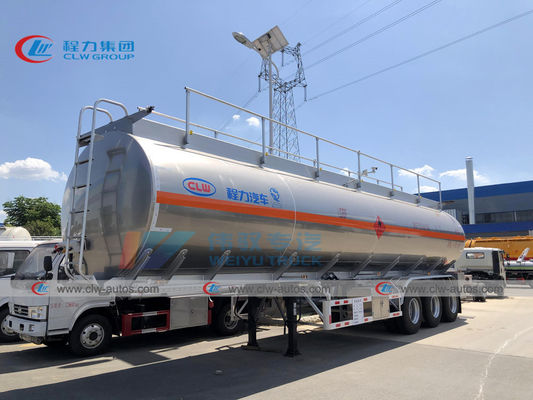

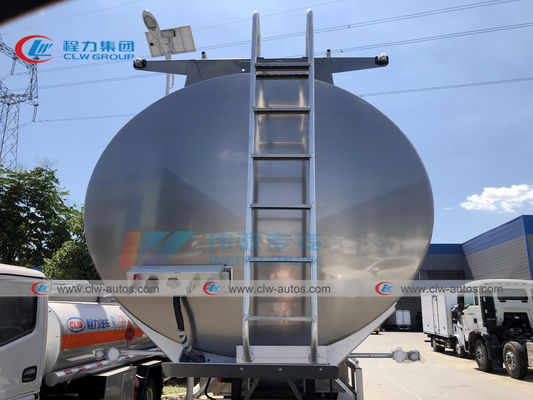

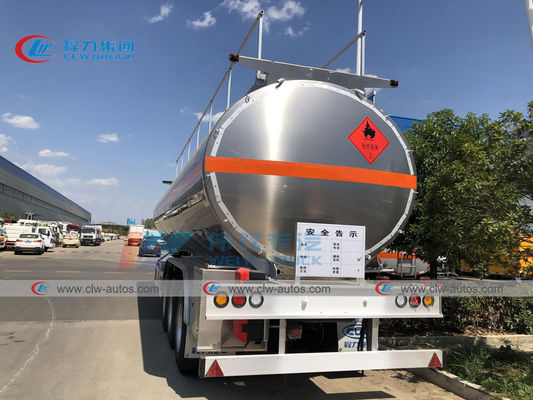

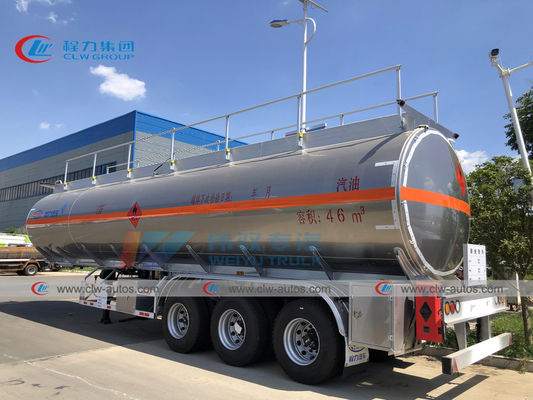

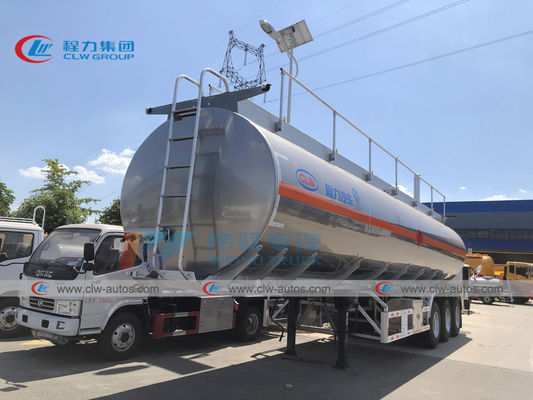

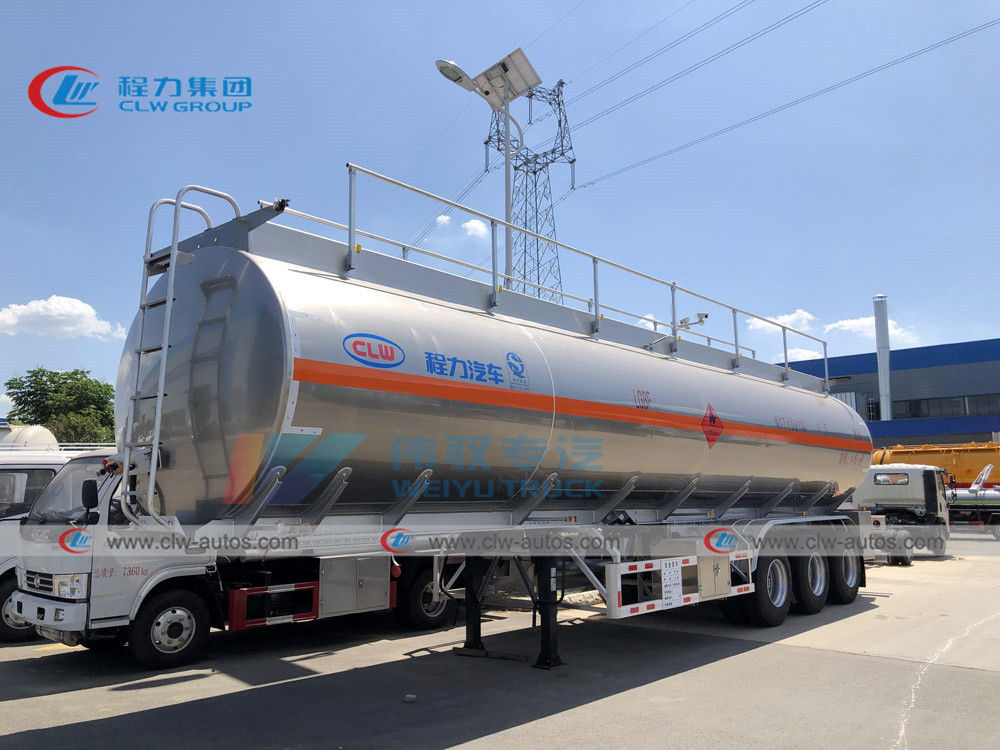

50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery 0

50CBM Aluminum Fuel Tank Trailer For Long Distance Delivery 2

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
