SINOTRUK 371hp 6X4 20m3 20,000liters 5000 Gallons Fuel Oil Transport Refuelling Tank Truck
Oil Refuelling Truck(also called fuel truck,fuel tank truck,fuel delivery truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.
1. Purpose of Oil Refuelling Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Optional for Refueling System of Oil Refuelling Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter
3. Tank shape of Oil Refuelling Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
Feature --Heavy duty howo truck chassis; --High quality carbon steel/aluminum alloy tanker material; --Independent compartment for different types of fuel types; --Serveral baffles inside tank to improve safety performance; --High pressure gas leakage test to ensure tank safety; -- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.
--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.
-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.
--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

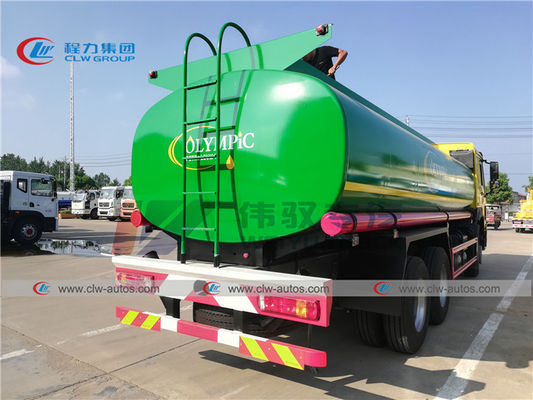

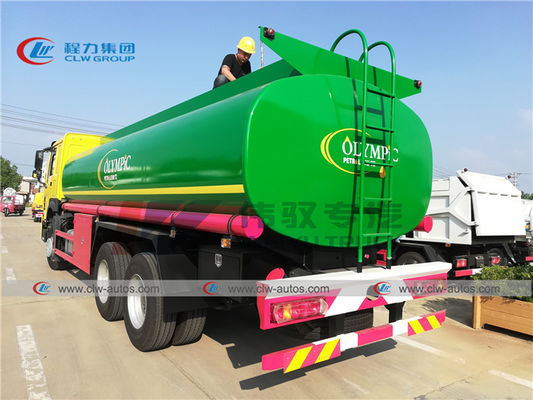

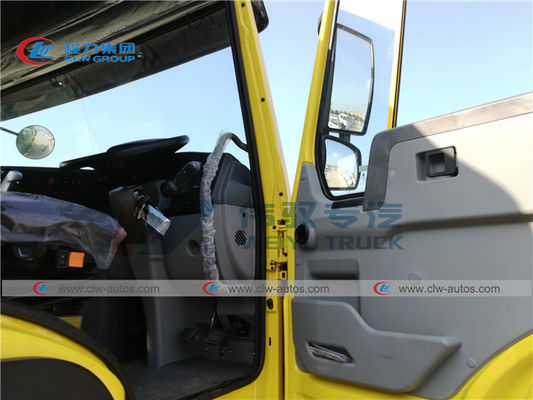

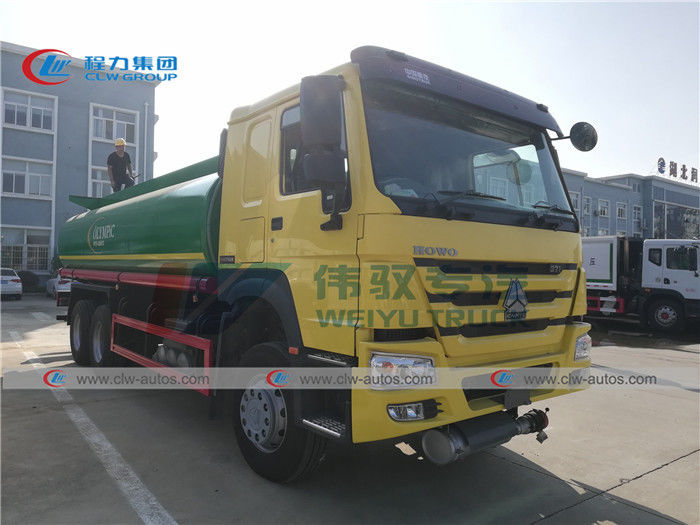

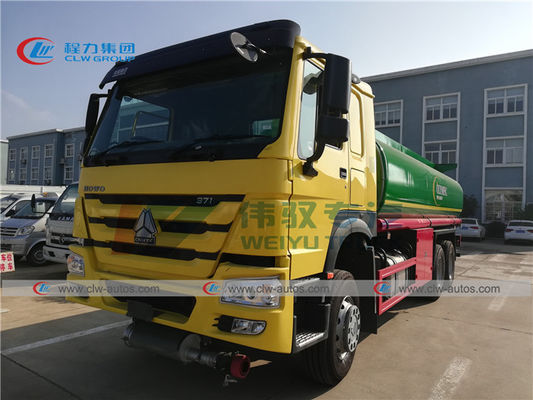

Reference picture s
Specification
Truck Chassis
Condition New condition/LHD or RHD hand drive/ 8 x4
Chassis Brand Howo
Curb weight(kg) 1430 0 kg
Wheelbase(mm) 1800+4 600+1350 mm
Dimensions(mm) 11990 X2500X 345 0 mm
Front/Rear Axle loading(kg)
HF9 front axle/9 000 kgX2；
HC16 rear axle/ 1 6 000 kg X2；
Wheel track (front/rear) (mm) 2022 / 2022/2041/2041 mm
Front/Rear overhang(mm) 1 500 / 2740 mm
Approach/Departure angle(°) 26/20
Max. driving speed(km/h) 95
Clutch Reinforced diaphragm clutch
Brakes
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 1 2 pcs with one spare tire
Specifications 12R22.5
Fuel box 400L with lockable cap
Transmission Manual type HW19710, 10 Forwards and 2 reverse
Cab It c an accommodate three people . With Air Conditioner
Engine
Brand SINOTRUK
Model WD615.47
Fuel type Diesel
Displacement(ml) 9726 ml
Power(kw) 273kw
Horsepower(HP) 371HP
Max. Torque(N.m) 1160
Fuel consumption at full load(g/kw.h) 193
Cylinder number In-line 6 cylinders,water cooling,four-stroke,super-charge and middle cooling,direct-injection
Emission standard Euro II
Fuel Tank
Fuel tank Capacity (cbm/liters) 30 cbm/ 30 ,000 liters
Tank material Tank material:Q235 high tensile strength steel.
Thickness(mm) 5mm of tank and 5 mm of end plate
Shape Square or as request
Compartment No. 3
Baffle 4 mm carbon steel
Manhole cover 3 pcs of European Aluminum alloy manhole cover s , ∮500mm 3 set s with 3 breather valve s
Bottom Valve 3 set s of Aluminum alloy Pneumatic Bottom Valve s
Discharging valve 3 set ∮ 4 inches API discharging valves
Oil pump Chinese brand,80-60 carbon steel pump with flow meter 60m3/h
Pump system pipeline 2.5 inches
Flow meter Chinese brand DN50 flow meter
Walkway at top of tanker Anti-slip
Painting Color and design as customer’s requirement
Others
Over flow;
3 sets of vapour recovery;
Fire Cap(1 pc);
Fire extinguisher(2 pcs);
Anti-static wire;
Truck will be waxed before shipment;
Handrail Pneumatic controlled at t wo sides of truck
Ladder At rear of tank
