Australian Adr Side Tipper 3 Axles Water Cart Grain End Dropsdie Trailers Tagalong Semi Trailer
We are specilized in designing and building many kinds of OZ ADR standard trailers, such as:
1. earth-moving side tipper;
2. end tipper;
3. grain end tipper;
4. water tanker;
5. quad-axle lowloader deck-widener;
6. tri-axle lowloader deck-widener;
7. 45ft dropdeck extendable;
8. 45ft flatdeck extendable;
9. 45ft sliding lowloader;
10. dolly trailer;
11. pig trailer/Tagalong Truck, etc.
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Product Specification
| Tare weight |
9460kg |
| Overall Length |
10600mm |
| Overall Width |
2480mm |
| Overall Height |
2980mm |
| Volume |
30000L |
| Axle |
K-Hitch ADR axle, 3 axles |
| Suspension |
K-Hitch ADR with 9 leaf springs |
| Kingpin |
JOST 2inch or 3.5inch,assembly type |
| Landing Leg |
JOST brand, two speed,by manual |
| Tire |
11R22.5 tubless 10 studs |
| Compartment No. |
2 compartments,isolated |
| Top filler hole |
1 or 2 as your required |
| Top handrill |
Air operated type with Collapsible handrill |
| Pump and Motor |
Quality pump and motor |
| Valves and outlets |
1x 4inch and 1x6inch outlets fitted with handy butterfly valve,
1x6inch drill out flange with handy butterfly valve at the bottom of rear;
2X8 inch bottom flanges with handy butterfly valve in the middle right and left;
1x 6 inch front flange with handy butterfly valve;
3 x 3inch air operated top spray head,
two rear gravity fan feed by air-operated butterfly valve each,
air-operated rear bottom dribble fitted with flanges in both ends,
top middle spray head fitted with separate air operated butterfly valve.
Fitted with hydraulic pump and motor; |
| Lightings |
Orion brand ADR LED side marker;
rear combination lamp and rear small lamp on the tanker;
Wire: ADR required thickness of electronic 7-pin wire and 7-pin |
| Finshing |
flap discs jobs and Sandblasted ;
2 times of Primer and Painted in 2-Pack to required color;
inside of primer; |
| Toolbox |
1 pcs of 600x900 Toolbox and 2 pcs of hose tray |
| Mud Guard |
Spring Tension Rubber over Tri Group |
| Others |
Road train Spec. Available Brackets for tanker body mounted rear lamp
and beacon as well as Road train signs |

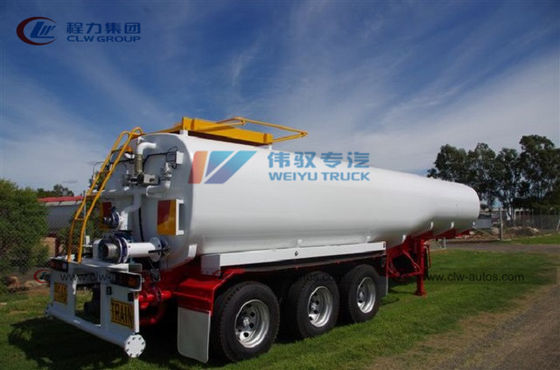

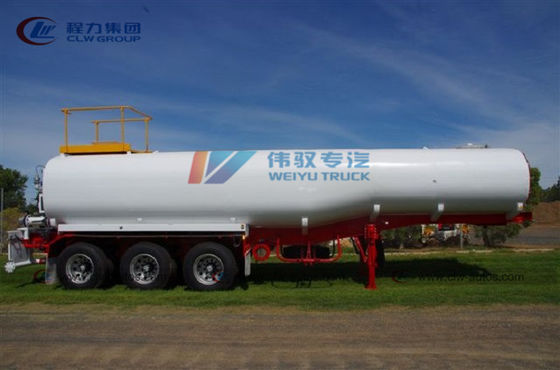

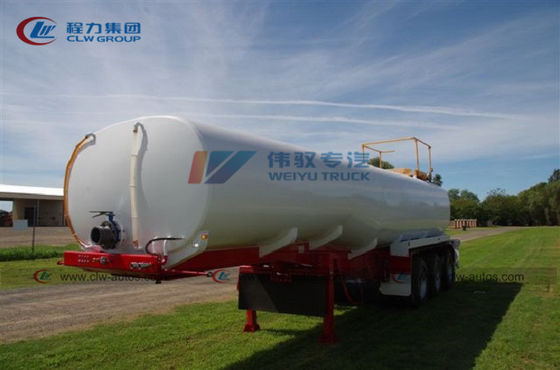

Reference Photos
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of side trailer I can order from your company?
A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.
Q2: What's the material of your side trailer?
A: We usually provide carbon steel, stainless steel, and aluminium alloy for customer's requirements.
Q3: What is your production standard of side trailer? Whether your side trailer been exported to USA, Canada and Europen countries?
A: Our side trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported side trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
