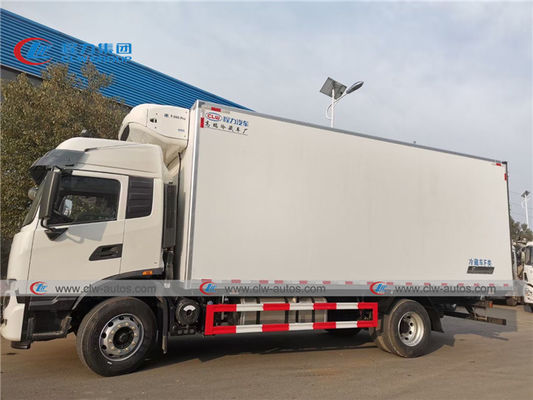

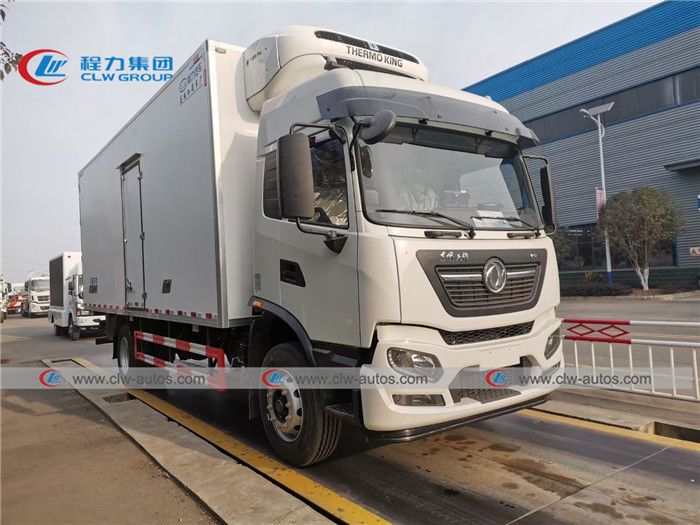

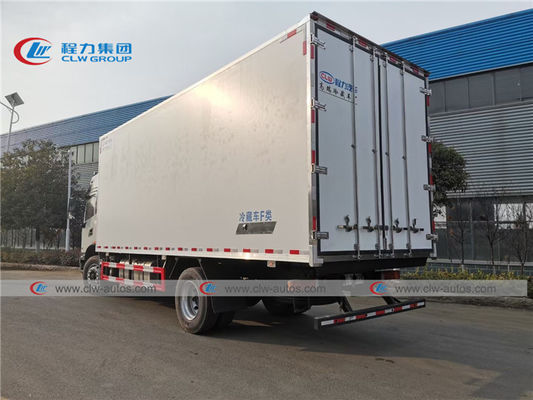

Dongfeng 10Tons 15Tons 6.8meters Refrigerated Truck With Thermo King T-880 Pro
Product Description
1. Purpose of Refrigerated Truck : It used for transporting frozen fish, meat, chicken, duck, fresh vegetable and vaccinum etc.
2. Main parts of Refrigerated Truck : Refrigerating unit and control system.
3. Features of Refrigerated Truck: International chassis brand and International refrigerating unit brand for optional.
4. For the special requirements of freezer vehicle,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots, ladder, LED lamp, etc. parts can be chosen and installed. Different refrigerated units are available like Carrier, Thermos King, Dongin, Kingtec, etc. The standby battery, side door, side windows, etc are optional.
Refrigerated Truck also called Refrigerated truck, refrigerator truck,refrigerated van truck, refigerated vehicle, freezer truck, cold van, etc.
1. Refrigerated Truck loading capacity :1ton,1.5ton,3ton,5ton,10ton,12ton,15ton,20tons,etc.
2. Refrigerated Truck brand : Foton, 1suzu, Howo, Dongfeng, Jac, Jmc,etc
3. Refrigerated Truck transport : fish, seafood, meat, vegetable, milk, food,fruit, etc.
4. How to buy Refrigerated Truck, please contact with Ms. shirley by whatsapp: +8613545064324
Spec of 10tons refrigerated truck with thermo king T-880 pro
| Product model |
dongfeng 10tons refrigerated truck |
| Product parameters |
Total mass(Kg) |
16000 |
| Rated weight(Kg) |
8000-10000 |
| Curb weight(Kg) |
7200 |
| Overall dimension(mm) |
9150*2600*3980 |
| Carriage dimensions(mm) |
6800*2450*2600 |
| |
| Chassis parameters |
Chassis model |
DFL1160QL |
| Fuel type |
Diesel |
| Emission standard |
Euro3 |
| |
| Engine parameters |
Engine model |
B190 33 |
| Manufacturer |
Dongfeng |
| Displacement(ml) |
5900ML |
| Power(Kw) |
190HP |
| |
|
Main Parameters
|
Rated person of Cab |
2 |
| Number of axles |
2 |
| Wheelbase(mm) |
4500/4700 |
| Axle load(Kg) |
6000/10000 |
| Tires No. |
6 |
| Tyre size |
9.00R20 |
| Max. speed(Km/h) |
95 |
|
Approach angle
/Departure angle(°)
|
20/8 |
|
Front overhang
/Rear overhang(mm)
|
1430/2520 |
| Front track/Rear track(mm) |
1885/1860 |
Thermo king Independent refrigerator unit T-880pro
The thermo king T-80 Pro series unit has larger cooling capacity, faster cooling, less fuel consumption, lower operation and maintenance costs, and can reduce costs for users while bringing more efficient and optimized user experience. In addition, the engine equipped with the T-80 Pro series unit is also significantly better than similar products in the industry in terms of reducing emissions and noise pollution. It not only reduces the impact on the environment, but also provides users with better performance.
Thermo King T-80 Pro series units not only have strong cooling, they can operate at an ambient temperature of up to 55°C, and have the unique advantage of large cooling capacity: 0°C cooling capacity range of 7200-10600W, -20°C cooling capacity range of 3800 -5700W.
The Thermo Kingindependent unit T-80 Pro series integrates a series of outstanding innovations, which can provide a dual temperature solution under the premise of ensuring rapid cooling and precise temperature control, which can easily meet the needs of simultaneous transportation of different goods, improve transportation efficiency, and shorten Distribution routes, reducing operating costs.
Main Structure of commercial refrigerated box truck
1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel
2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THERMO KING,south korean brand such as DONG IN THERMO CO．,LTD
3) Temperature setting ranges from -5 ℃ to -15 ℃ and available for outer electricity source
4) Stainless steel knock
5) Hooks for hanging meat
6) stainless steel or glass steel bottom plate with ventilating slot
7) Temperature controller in cabin and easy for operation
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipmen
FAQ
Q1: What loading weight refrigerated truck I can order from your company?
A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.
Q2: What is your production standard of refrigerated truck? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?
A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.
Q3: Can we adopts International brand refrigerating unit for freezer truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
