45000 Liters 3 Axle Fuel Delivery Semi Truck Trailer

Duży Obraz : 45000 Liters 3 Axle Fuel Delivery Semi Truck Trailer

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,BV,SGS
Numer modelu:	CLW9402

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	20 ~ 25 dni po otrzymaniu wpłaty
Zasady płatności:	Akredytywa, T/T
Możliwość Supply:	1000 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Aluminium 5083 5454 stal węglowa	Grubość materiału:	5mm do 7mm
Zamiar:	Olej palmowy, olej sojowy, ropa naftowa, olej napędowy, benzyna	Kształt zbiornika:	Okrągły, Kwadratowy Okrągły, Owalny,
Główna wiązka:	Belka ze stali o wysokim napięciu	Oś:	Fuwa, BPW, York Oś
Opona:	12R22.5, 315/80R22.5	Marka opon:	Linglong, podwójna moneta, trójkąt, Aeolus itp
Rynek wzornictwa:	Rynek afrykański lub azjatycki
Podkreślić:	45000 Liters Semi Truck Trailer , Fuel Delivery Semi Truck Trailer

45000liters Diesel Gasoline Truck Trailer 3-axle 45tons Fuel tanker Semi Trailer

Product Description

Rust Resist Tank Design, good for fuel delivery, such as diesel,gasoline and so on
Tank Material: Carbon steel,Aluminum 5083 5454,
All Aluminum Pipe line with the aluminum valve.
optional for Bottom Discharge, API Manwhole, Vapor Recovery, Pnumatic Control Bottom Valve.
Whole Tank Rolling Machine to better protection
Good Welding Technic with Sub-merged Arc Welding

Specifications of Fuel tanker Semi Trailer

Main Dimensions
Overall Length	11780mm
Overall Width	2500mm
Overall Height	3880mm
Tare Weight	10000KGS
Loading Capacity	45m3
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape			Mono block Cylinder
Total Volume(m3)			45 CBM
Tanker Body Material			5mm carbon steel
End plate			6mm carbon steel
Lifting Ladder			Including Top walkway and backside steel material
Manhole cover			3 manhole cover, ∮500mm 3 sets with 3 breather valves
Bottom Valve			3 sets of API Pneumatic Bottom Valve
Top Safety Rail			1 Set
Discharging valve			3 set ∮100mm discharging valves
No.of Compartment			3(15000L+15000L+15000L)
Discharging Pipe			4”rubber hose, 2 pc, 6m long
Chassis
Main Beams		Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle		3 axles
		FUWA 13 Tons
Landing Gear		JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2” bolt-in king pin
Suspension		German design heavy duty mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		9.00-22.5 wheel rim, 13 pieces including one spare
Tire		12R22.5 tubeless tire with one spare tire, 13 pieces
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories		One standard tool box

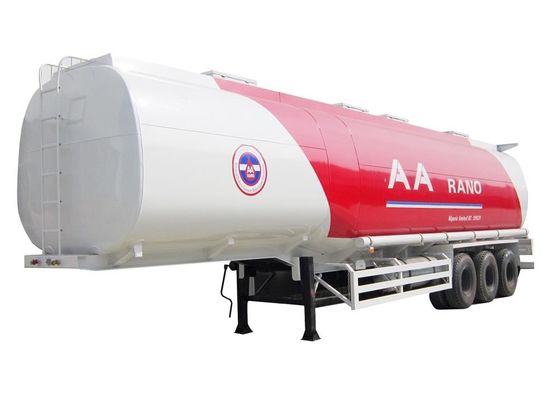

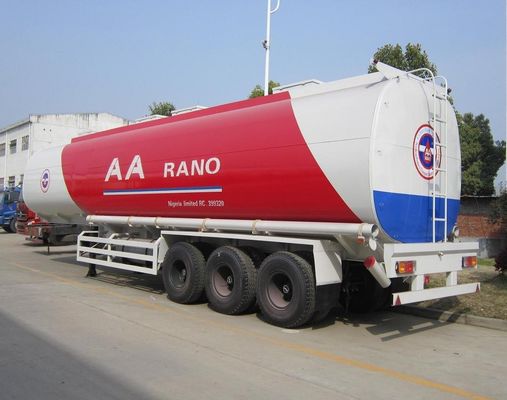

Pictures of Fuel tanker Semi Trailer

45000 Liters 3 Axle Fuel Delivery Semi Truck Trailer 0

45000 Liters 3 Axle Fuel Delivery Semi Truck Trailer 1

Reference picture of discharging valve

API manhole

45000 Liters 3 Axle Fuel Delivery Semi Truck Trailer 3

API bottom loading system photos for ref

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel tanker semi trailer I can order from your company?
A: There are various sizes of fuel tanker semi trailer with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel tanker semi trailer to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
