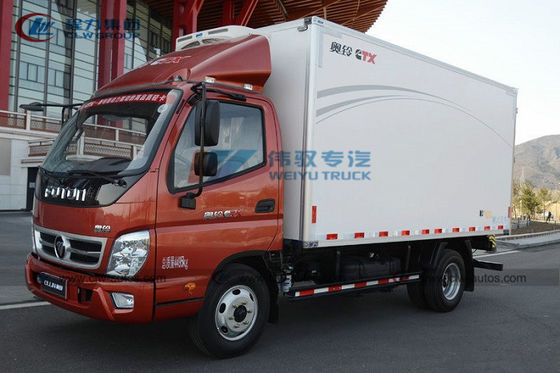

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat

Duży Obraz : Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC, SGS, BV, ASME
Numer modelu:	CLW5056A

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, Ro-Ro
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Materiał furgonetki:	Kolorowa tablica wewnątrz, FRP na zewnątrz furgonetki, środek z pianki poliuretanowej	Grubość zewnętrzna Van:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Grubość warstwy pośredniej Van:	80 mm 100 mm 120 mm	Grubość wewnętrzna Van:	1,2 mm 1,5 mm 1,8 mm 2,0 mm
Ładowanie wagi:	6-8 ton	Model lodówki:	Thermo King, Carrier, Hanxue, Huatai, Hana
Marka podwozia:	Isuzu, Dongfeng, Foton, Howo itp.	Model napędu:	4x2/6x4/8x4; Zgodnie z rozmiarem super struktury
Rozstaw osi:	3300 mm 3800 mm 4500 mm 4700 mm 5600 mm; 4300+1350mm; 1350mm+4300+1350mm	Logo i malowanie:	Zgodnie z życzeniem klienta
Gwarancja:	1 rok
Podkreślić:	6T Refrigerated Transport Trucks , 8T Refrigerated Transport Trucks , Foton 4×2 Refrigerated Box Truck

Foton 6t-8tons Refrigerated Refrigerator with America Thermo King or Carrier Freezer Cooling Truck

Product Description

1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.

2. Main parts of the truck: Refrigerating unit and control system.

3. Features of the truck: International chassis brands and refrigerating unit brands for optional.

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 0

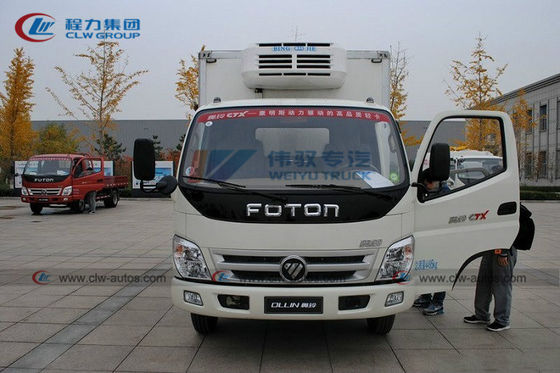

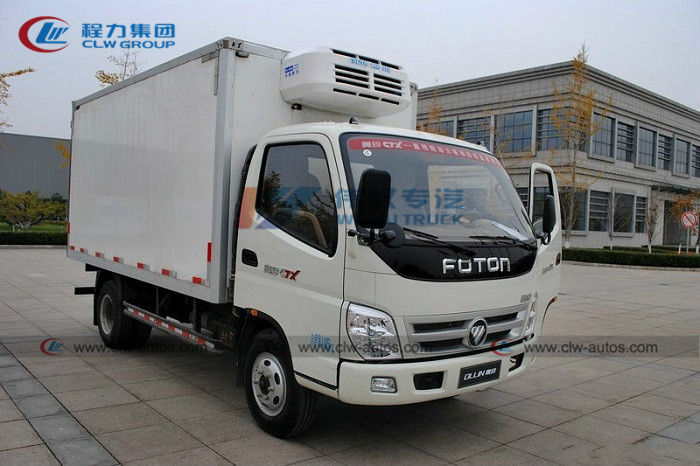

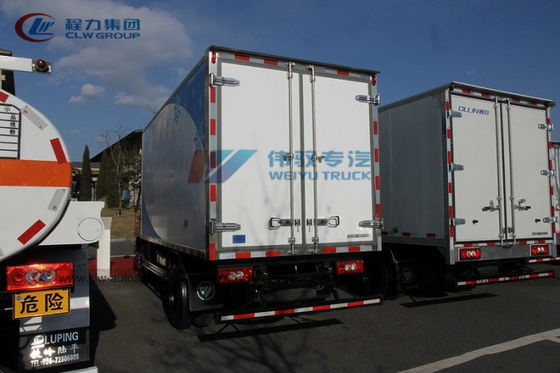

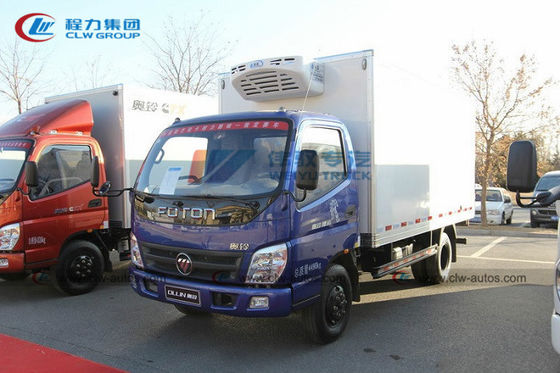

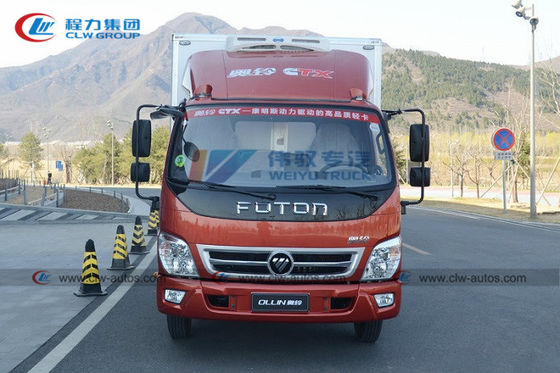

Reference Photos

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 1

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 2

Foton 4×2 6T 8T Refrigerated Transport Trucks For Frozen Meat 3

Product Specification

Vehicle
Chassis	FOTON
Cabin	2 Passengers
Drive	4 × 2 Left-hand driving or Right-hand driving
Wheelbase	3360 mm
Gross vehicle weight	8900 kg
Tyre	Size	8.25-16
	Quantity	6+1 Spare
Brake	Service	Front disc/Rear drum hydraulic brake
	Parking	Central drum brake
	Auxiliary	Exhaust brake
	System	ABS (anti-lock brake system)
Transmission	Gear	6-Speed (manual)
	Steering	Power-assisted
	Auxiliary	Clutch booster
Engine	Fuel	Diesel
	Intake	Turbocharged
	Form	Water cooling
	Cylinder	4 (In-line)
	Displacement	3922 ml (EURO IV)
	Max. Power	130 hp (95 kw)
Bodywork
Refrigerated Van	Dimension (internal)	507019701920 mm (LWH)
	Thickness	Roof	80 mm
		Wall	80 mm
		Floor	80 mm
	Material	Inner	Glass fiber reinforced plastics (GFRP)
		Outer
	Insulation	Material	Polyurethane foam (PUF)
		Thickness	8 mm
	Assembly	Floor	Non-slip checkered plate
		Door/lock	Stainless steel
	Seal	Industrial-purpose rubber
Refrigerator unit	Brand	KAILI
	Model	KL-780
	Temperature	-18~0ºC
	Refrigerants	Model	R404-A
		Charge	1.3 kg
	Refrigeration capacity
	Driven by Truck engine	0ºC	-18ºC
		3430 w	1920 w
	Compressor
	Air volume	1500 m³/h
	Weight (Approximation)
	Evaporator	16.5 kg
	Condenser	26.9 kg
	Dimension
	Evaporator	985585180 mm (LWH)
	Condenser	925430300 mm (LWH)
	Accessories
	Defrosting	Hot gas defrost (Automatically)
	Adjustment device	Electronic digital display
	Safety protect	High and low pressure switch

Optional Parts

Different Capacities of Refrigerator Truck

Sales Service

1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What loading weight refrigerated truck I can order from your company?

A: We can supply 990kg-40tons refrigerated truck, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerated truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported refrigerated truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for refrigerated truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
