China Dongfeng 24cbm/24000litres/6300gallon/10tons LPG tank truck delivery bobtail truck with dispenser for option
LPG tank truck is a pressure vessel vehicle that combined with the chassis, 100% X-ray radiographic tested tanker, safe valve, emergency cutting valve, themometer, liquid level meter, pressure gauge, gas dispenser and gas pump, which used for transporting or filling the gas to different gas station.The cubage could be from 5cbm to 37cbm.
ASME and ISO manufacture standard are both available.
Description:
1. Chassis brand: Dongfeng, Howo, Foton, Isuzu, etc.
2. Tank volume available: 5000 liters, 5500 liters, 8000 liters , 10000 liters, 12cbm, 15cbm , 18cbm, 20cbm, 30cbm,etc
3. Material of the lpg tank: Q345R, Q370R, ASME material SA516, SA612
4. Refill system: lpg pump+ flow meter+ fiillin pipe +filling gun / lpg pump+ lpg dispenser+filling pipe+filling gun
5. Application: Fill gas for small lpg skid station or lpg cylinders
| Vehicle Description |
| Overall dimensions |
10720×2470×3420(mm) |
| GVW |
25000kg |
| Curb weight |
14240kg |
| Chassis brand |
DONGFENG |
| Tanker Description |
| Tank capacity |
24cbm |
| Tank Size |
2050*10*8050mm |
| Filling medium |
LPG |
| Tanker material |
Carbon steel Q345R |
| Thickness |
Tanker body |
10mm |
| End cover |
12mm |
| Designed pressure |
1.61Mpa |
| Testing water pressure |
2.10MPa |
| Air tight test pressure |
1.61Mpa |
| Heat treatment |
get rid of stress |
| Corrosion allowance |
1.0mm |
| Use Years |
15 years |
| Standard configuration |
1. Equipped with LPG dispenser, LPG pump, liquid level meter, pressure meter, and thermometer.
2. Equipped with safe valve, emergency cut-off valve, inlet and outlet.
3. Equipped with double toolbox and valve box.
|
| Chassis Description |
| Chassis model |
Dongfeng 6x4 |
| Cab |
Extended cab, single berth, adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sunroof, air-conditioner. |
| Wheelbase |
4600+1350mm |
| Tire specification |
11.00R20/ 10.00R20 |
| Tire quantity |
10+1 units |
| Engine |
Engine model |
ISDE210 40 |
| Emission level |
Euro 2 |
| Displacement/output |
6700ml/155kw |
| Horse power |
210hp |
| Gear box |
Model |
Manual |
| Number of gears |
10 forward gears& 2 reverse, planetary reducer |
| Brake system |
Service brake:dual-circuit pneumatic brake;
Parking brake:energy storage spring air cutoff brake;
Auxiliary brake:engine exhaust brake.
|
| Axle |
Front |
HF-7T |
| Rear |
ST-16T*2, ratio 4.8/5.73 |
| Suspension |
Front |
Leaf springs with shock abosorber |
| Rear |
Leaf springs with transverse stabilizer |
| Fuel tanker |
Type |
Steel tanker, with lockable cap |
| Capacity |
400L |

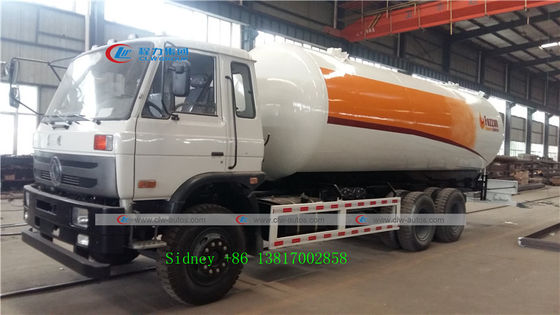

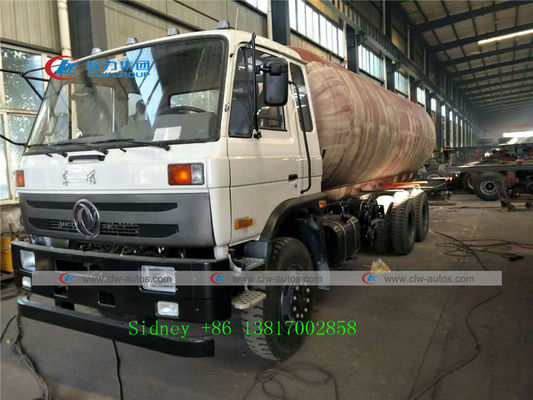

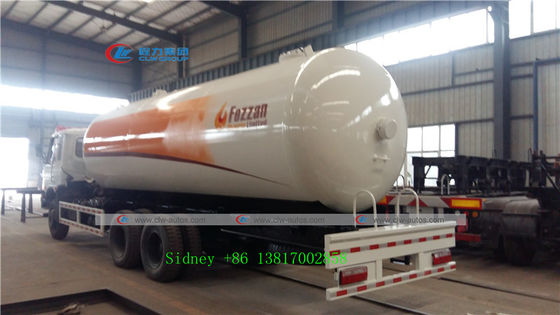

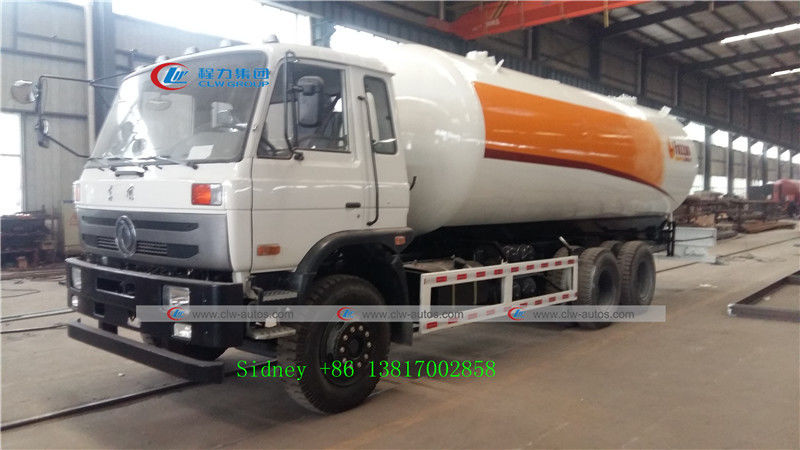

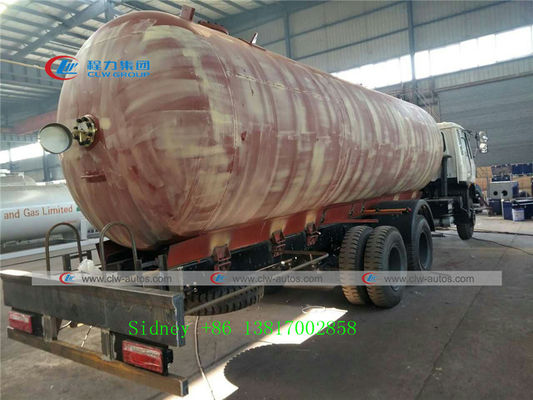

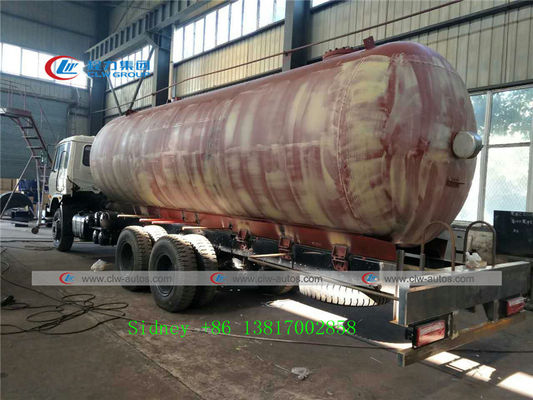

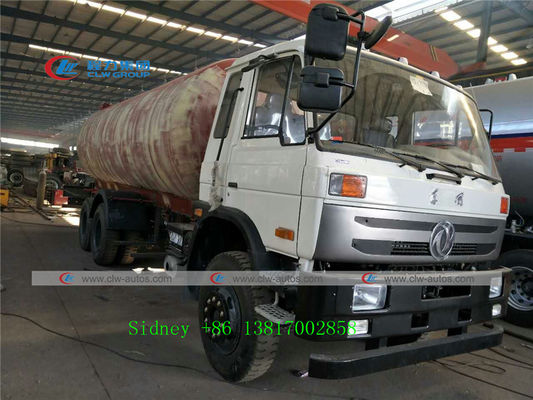

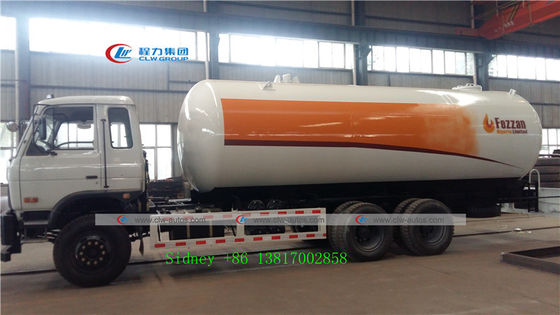

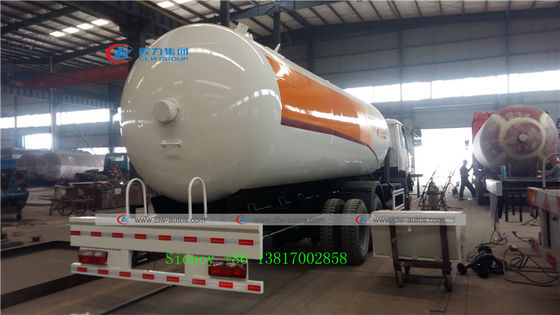

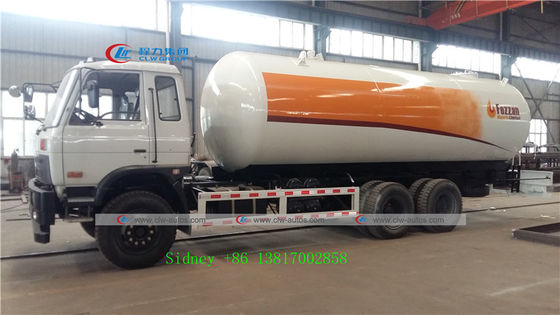

Reference Photos
Optional parts
Factory Overview
Bulk shipment!
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC, AARANO, NIPCO, LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
