FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck

Duży Obraz : FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC BV SGS
Numer modelu:	CLW529F

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	25250-29560USD/UNIT
Szczegóły pakowania:	Naga paczka wysłana statkiem masowym
Czas dostawy:	30 dni po otrzymaniu depozytu
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Pojemność:	5 ton 5 ton 6 ton 6 ton 8 ton 8 ton	Materiał zbiornika:	stal nierdzewna 304-2B
Warstwa izolacyjnego:	Pianka PU o grubości 80 mm	Materiał zbiornika:	2mm 201
Materiał zbiornika wewnętrznego:	4mm 304-2B	SILNIK:	Diesel, 185 KM
Sterowniczy:	LHD, RHD	Objętość zbiornika:	5 cbm, 5000 litrów, 6000 litrów, 6 cbm, 8 cbm, 8000 litrów
Nazwa produktu:	cysterna do mleka, ciężarówka do transportu mleka, ciężarówka do transportu mleka
Podkreślić:	8cbm Milk Tanker Truck , Milk Tanker Truck , FAW Milk Transport Truck

FAW 4x2 8,000 liters 8cbm stainless steel fresh milk transport truck milk tanker truck

Function
Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.

We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.

Milk tank truck can be devided into many compartments to transport different types of drinkable liquid, milk, ewe's milk...Every compartments are equipped with CIP cleaning function.

Description
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.

Specifictions

Description	Insulated Milk tank truck 8,000Liters milk transport truck for sale
Condition	New condition
Chassis	Curb weight(kg)		6605
	G.V.W.(kg)		16000
	Wheelbase(mm)		4700
	Dimensions(mm)		8850×2490×3200
	Overhang (front/rear) (mm)		1430/2420
	Wheel track (front/rear) (mm)		1880/1800
	Approach/Departure angle(°)		20/8
	Axle Load(kg)		6000/10000
	Max. driving speed(km/h)		90
	Brand		FAW, Dongfeng or HOWO
	Tire	Number	6+1pcs
		Specifications	9.00-20, 9.00R20,10.00-20,10.00R20
Clutch	Reinforced diaphragm clutch
Cab	3
Engine	Model		ISDe185 30
	Displacement(ml)		6700
	Power(kw)		136
	Emission standard		Euro 3
Brakes	Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Steering Gear	Power steering, hydraulic steering with power assistance
Tank	Capacity(m³)		8
	Tank material		Stainless steel

Reference photos

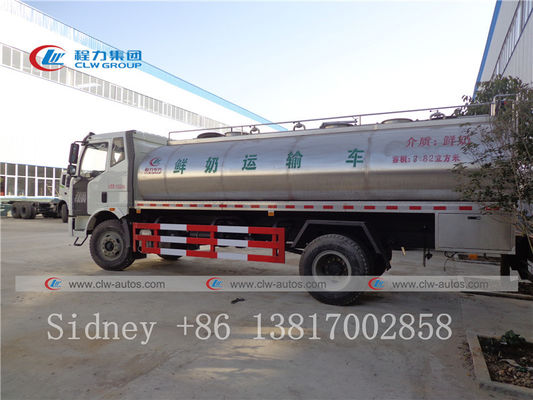

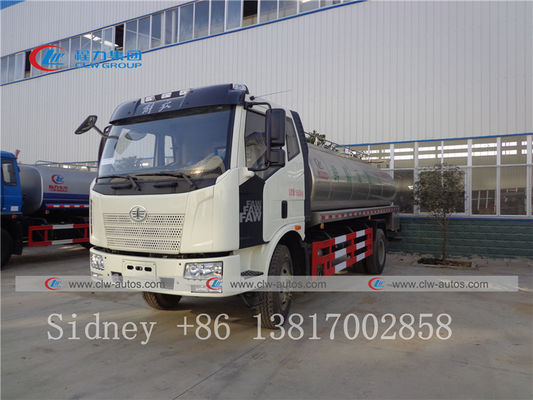

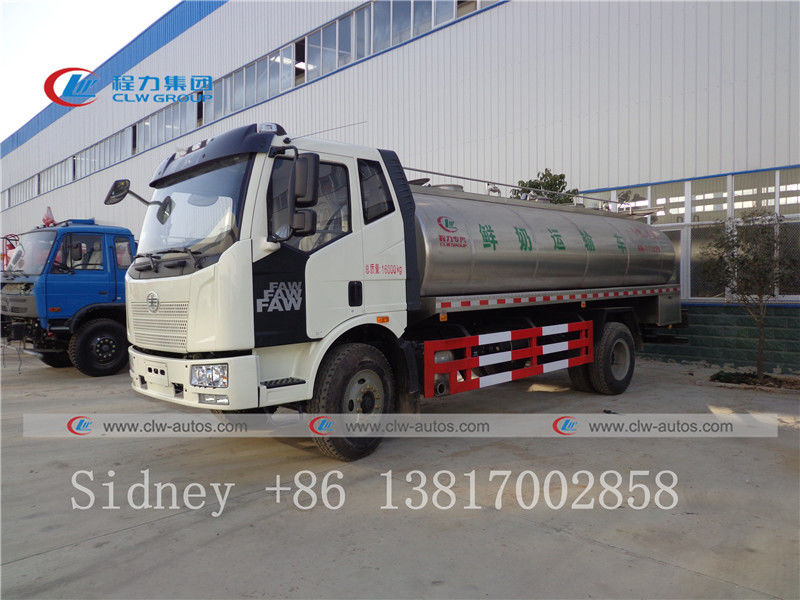

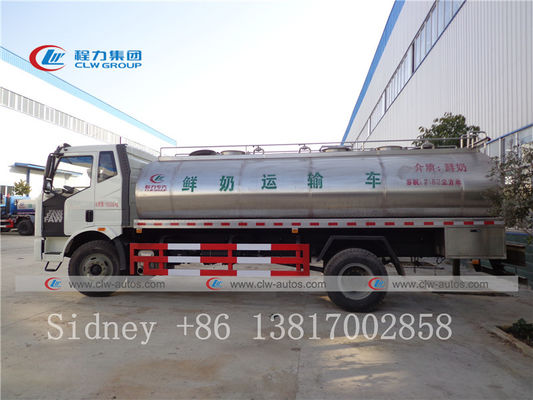

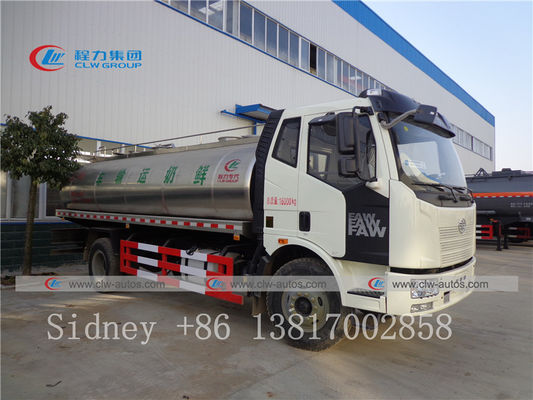

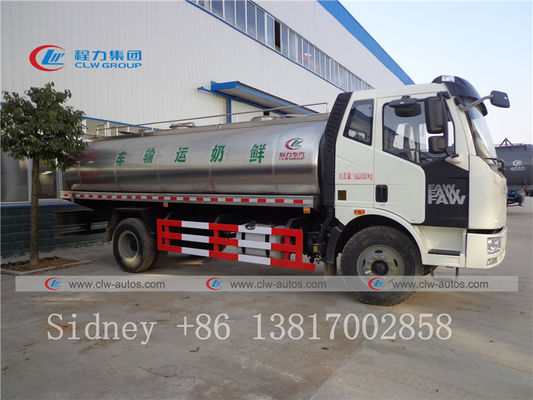

FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck 0

Stainless cleaning inlet and outlet of milk

FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck 5

FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck 6

Parts photos

FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck 7

Production process

FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck 8

FAW 4X2 8cbm Stainless Steel Fresh Milk Tanker Truck 9
