FAW XinDaWei 6600 Gallon 20 Ton Refueler Truck With Dispenser

Duży Obraz : FAW XinDaWei 6600 Gallon 20 Ton Refueler Truck With Dispenser

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC, ISO
Numer modelu:	CLW5090JSQ

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Pakiet Nude z woskowaniem
Czas dostawy:	30-40 dni roboczych

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stal węglowa o grubości 5,0 mm	Kształt zbiornika:	Kwadratowy Okrągły
Marka ciężarówek:	FAW	Model:	XinDaWei
SILNIK:	Weichai 380KM	Skrzynia biegów:	12 do przodu i 2 do tyłu
MARKA SKRZYNI BIEGÓW:	Szybko	Malarstwo:	2 warstwy
Opona:	12.00R20	Ilość opon:	10 jednostek
Podkreślić:	FAW XinDaWei Mobile Refueling Truck , 6600 Gallon Refueler Truck , 20 Ton Refueler Truck

FAW XinDaWei 25000L 6600 Gal 20Ton Fuel Refilling Truck with Dispenser

Product Description

FAW 20Ton Fuel Transport Truck

Transport medium: gasoline,
Medium Dnsity: 0.7 tons/m3,
Effective tank volume: 24.1 cubic meters,
Overall dimensions of the tank (mm) are: 7700 × 2480 × 1880.
Protective material: Q235A carbon steel,
Connection method: Welding connection is used for the left and right side and rear lower protection.
Rear protective section size (mm): 135×50,
Ground clearance of rear protection (mm): 520.
Only use chassis radial tires and chassis with ABS;
The front wheels of the car are equipped with disc brakes, front exhaust pipes,
Speed limit device with a speed limit of 79km/h.
Install a driving recorder with satellite positioning function, with ABS
The color of the vehicle is optional and the position of the text spraying can be changed.

Chassis:

FAW XinDaWei,
Wiechai 380HP Engine,
FAST Gearbox 12 Forward & 2 Reverse,
7Ton Front Axle, 16Ton Rear Axle,
12R22.5 Tire.

Specifications of 20Ton FAW Fuel Dispensing Truck

24,000L 6x4 Oil Tank Truck
Item No.	Parameters
Overall Dimension	10200x2500x3600 mm
Gross Vehicle Weight	25000 kg
Curb weight	10870 kg
Loading Weight	14000 kg
Wheel Base	4600+1350 mm
Front/Rear Tread	2022 / 1830 mm
Front Axle	9Ton, 1x9000 kg
Rear Axle	16Ton, Heavy Reduction Drive Axle, STR Hub-reduction with Differential Locks between Wheels and Axles, Ratio 5.73
Engine	Weichai Engine 380HP, 6-cylinder in line, 4-stroke, Water-cooled, Turbo-charged & inter-cooled, Direct Injection
Engine horsepower	380 HP Euro II
Displacement	9.726 L(Diesel)
Full loading Fuel Consumption Rate	Maximum 193 g/kW.h
Max Driving Speed	90 km/h
Gear Box	FAST, 10 Forward Gear & 2 Reverse Gear, High and Low Shifting

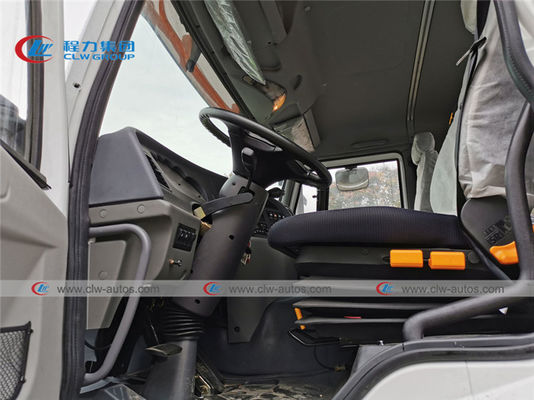

Cabin	XinDaWei Cabin, 2 Passenger Allowed with 1 sleeper, Left Hand Driving, With Air Conditioner,
Tire	11.00-20, 10 pieces with one spare tire
Tank Capacity	25,000 Liters
Tank Material	Q235 High Tension Steel, 6mm Thick Carbon Steel, With 6 Separated Compartment, Customized Tank Color, Can also Paint Customer's Logo or Advertisement on Tank.

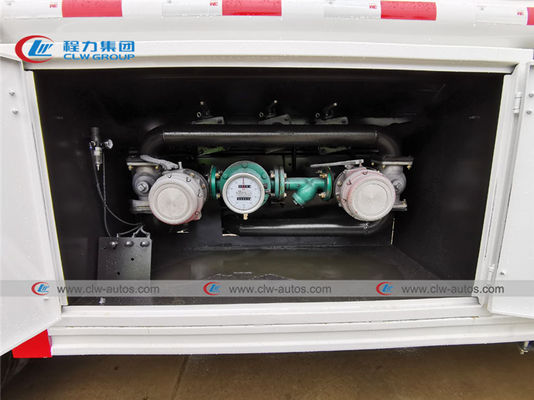

Other Equipment	6 Ball Valves in each compartment for gravity discharging. 6 Emergency Cut Off valve.

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
