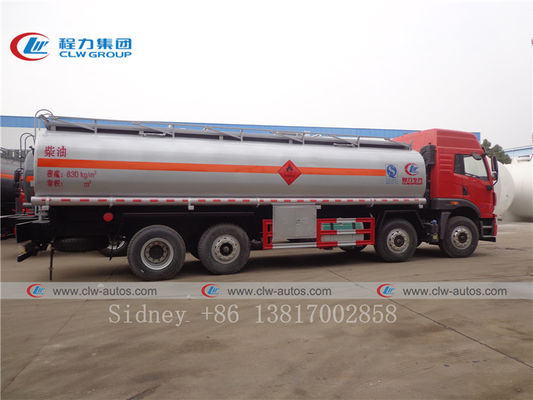

FAW 8X4 30000L Fuel Delivery Tank Truck With Flow Meter

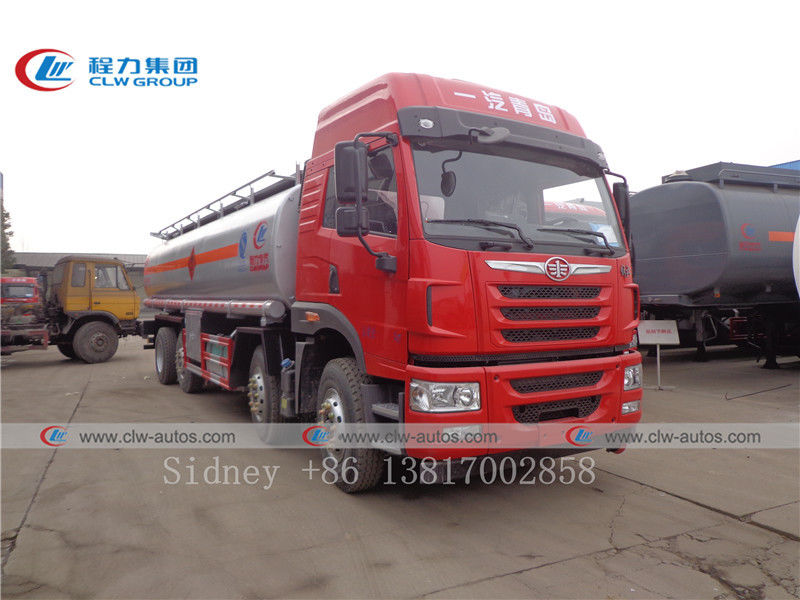

Duży Obraz : FAW 8X4 30000L Fuel Delivery Tank Truck With Flow Meter

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,BV,SGS
Numer modelu:	CLW535F

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	28500USD/unit~42500 USD/unit
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	20 ~ 25 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	1000 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Tworzywo:	Q235b, Q345b	Grubość materiału:	4mm do 5mm
Pojemność czołgów:	30000 litrów, 8000 galonów, 30 m3, 30 CBM	Ładowanie wagi:	24 tony metryczne
Marka ciężarówek:	FAW	Opona:	Opona bezdętkowa 12R22.5
Kabina:	LHD lub RHD, z klimatyzacją	SILNIK:	Foton Cummins
Skrzynia biegów:	10 do przodu i 2 do tyłu
Podkreślić:	8X4 Fuel Delivery Tank Truck , FAW Fuel Delivery Tank Truck , 30000L Fuel Transport Trucks

FAW 8x4 30000Liters 8000galon Diesel Petrol Gas Tanker Delivery Truck

Description:

1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Specifications

Description	FAW 8X4 30cbm Fuel Tank Truck
Drive Model	8x4
Fuel Type	Diesel
Chassis	FAW CA1310
Vehicle Main Dimensions	Dimensions(L x W x H)mm	11980X2500X3500
	Wheel base (mm)	1900+4500+1350
	Overhang (front/rear) (mm)	1375/2855
	Wheel track (front) (mm)	1914/1914
	Wheel track (rear) (mm)	1847/1847
	Approach/Departure angle(°)	16/10
Weight in KGS	Curb Weight	11205
	GVW.	31000
Max. driving speed(km/h)		79
Engine	Model	BF6M1013
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	276HP
	Emission standard	Euro III
Gearbox	8 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	380
Tire	11.00R20, 12pcs + 1 spare
Number of axles	4
Brakes	dual circuit compressed air brake
Tank
Material	Aluminum alloy 5083(Aluminum, stainless steel optional)
Tank Shape	Elliptic cylindrical
Medium and density	Petrol 700kg/cbm
Body Internal Dimension	9200x2480x1680mm
Thickness	6mm
Fact cubage	29.4cbm
Standard Equipment	1.Europen standard tank mouth 2.Ladder 3. Guardrail 4. Anti-wave partition 5.Sea valve 6. ABS and GPS
Optional Equipment	1. Adding compartments 2. European standard vapor collecting system 3. Air conditioner

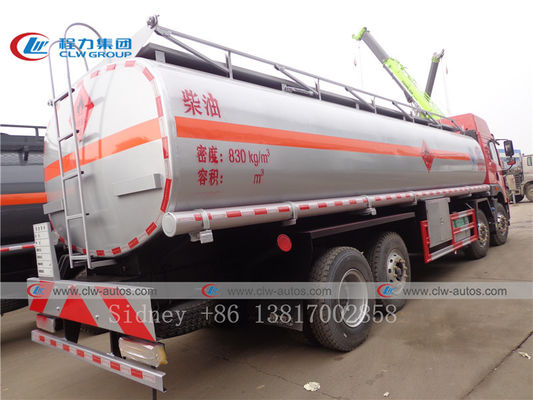

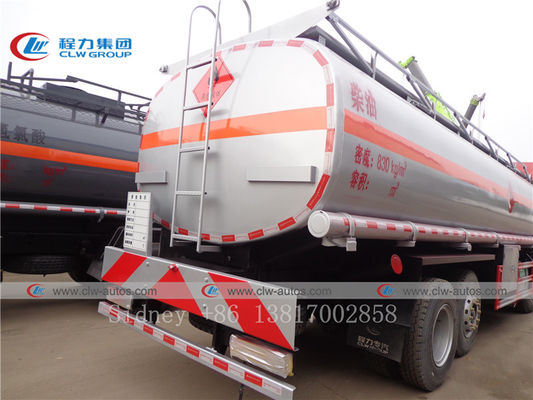

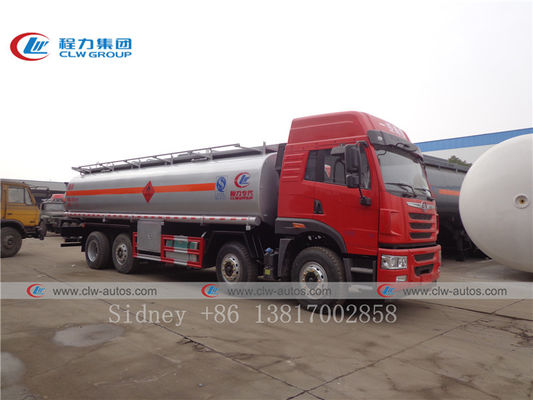

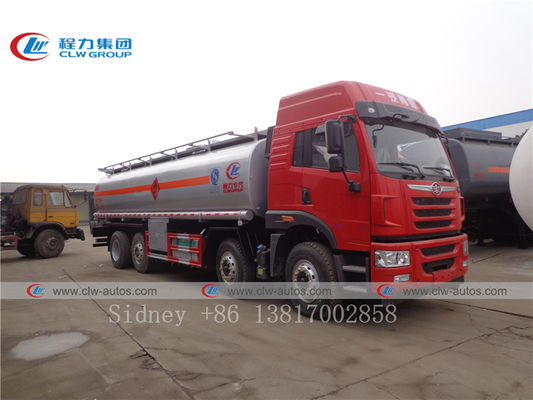

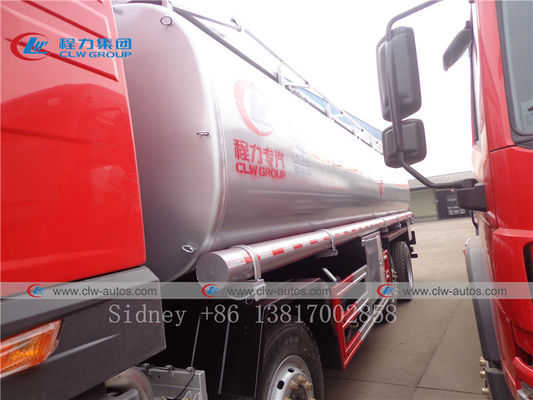

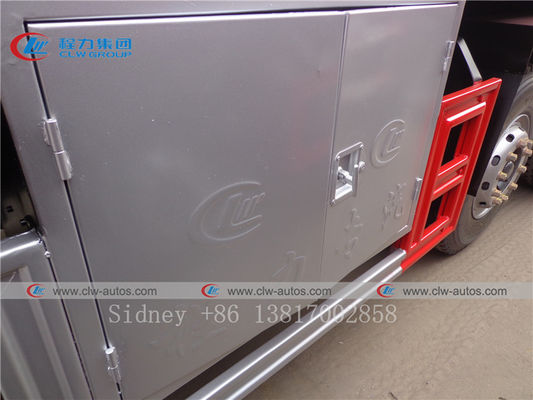

Reference photos

FAW 8X4 30000L Fuel Delivery Tank Truck With Flow Meter 0

FAW 8X4 30000L Fuel Delivery Tank Truck With Flow Meter 5

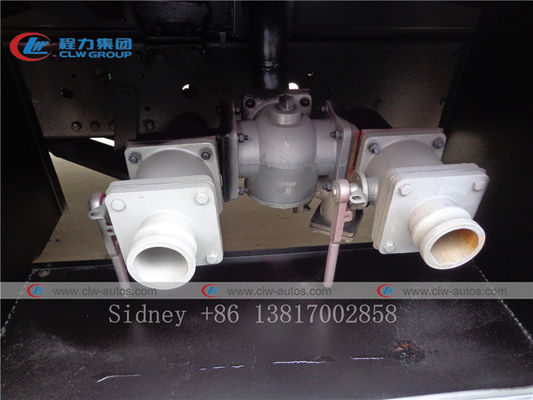

Parts photos

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
