20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck

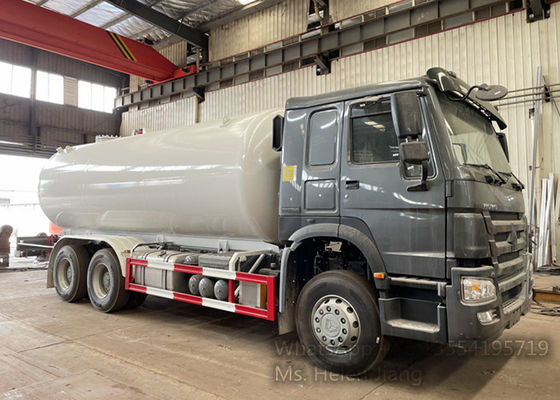

Duży Obraz : 20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck

Szczegóły Produktu:

Miejsce pochodzenia:	SUIZHOU, HUBEI
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW20210612

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiated
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Tworzywo:	Stal węglowa, Q345R, Q370R. Q420R	Nazwa produktu:	Ciężarówka z dystrybutorem LPG HOWO. Cysterna z gazem LPG
Typ napędu:	6X4 10 KOŁA 10 KOŁÓW	Model napędu:	Kierownica po lewej stronie lub kierownica po prawej stronie
Pojemność ładowania:	8 ton, 9 ton, 10 ton, 5T, 6T. 7T, 8T. 10T	Marka ciężarówek:	Sinotruk/Sinotruck HOMAN, shacman, FAW, FOTON, jac
Typ zakładki:	Bobtail LPG, cysterna do tankowania LPG, cysterna LPG	Inne wyposażenie:	z pompą, silnikiem, przepływomierzem itp.
Stan:	Marka Sinotruk HOWO, fabrycznie nowa ciężarówka
Podkreślić:	371HP LPG Gas Tanker Truck , 6X4 LPG Gas Tanker Truck , 20cbm Bobtail Tanker Truck

Sinotruck HOWO 6x4 371hp 20000L 10tons 20cbm LPG Gas Tanker Truck LPG Tank refilling Bobtail

Product Description

1-- Truck Brand of 10tons LPG Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
2-- Tank Size of 10tons LPG Bobtail : 20,000liters,20000L,20cbm,24000liters 24000L,24cbm,15000 Liters,15000L,15cbm,
3-- Function of 10tons LPG Bobtail: mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
4-- Refiling System of 10tons LPG Bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
5-- Truck Spec of 10tons LPG Bobtail : wechai Engine 290HP, HW19710 Gearbox 10 Forward & 2 Revers, 12R22.5 Tires

product Specification

Item No.	Parameters
Overall Dimension	10590x2495x3350 mm
Driving Model	Left hand drive
Gross Vehicle Weight	25000 kg
Curb Weight	14000kg
Payload	10000kg(10Ton)
Wheel Base	4600+1350 mm
Front/rear Tread	2022/1830 mm
Approach/Departure Angle	16/12 degree
Front Axle	7000kg
Rear Axle	18000 kg*2
Engine	WD615.69,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower	336HP EUROIII
Displacement	9760mL (Diesel)
Max Driving Speed	95 km/h
Gearbox	HW19710
Cabin	Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner
Tire	12R22.5 (11 pieces)
LPG tank
Volume:	20cbm
Tank material:	Q345R
Tank diameter:	2000mm
Tank thickness:	10mm
End plate	12mm
Tank length:	6090mm
Gas phase	DN50
Liquid Phase	DN80
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
Level Gauge	Manual rotation type,at the rear of tank
Safety Valve	1,DN80
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher	2
Exhaust shaft	At the front of truck for safety

Sinotruck HOWO 6x4 371hp 20000L 10tons 20cbm LPG Gas Tanker Truck LPG Tank refilling Bobtail

20cbm Sinotruck HOWO 6X4 371HP LPG Gas Tanker Truck 0

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .

Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
