70000m2/H 5T Vacuum Sweeper Truck With Cummins ISUZU Engine

Duży Obraz : 70000m2/H 5T Vacuum Sweeper Truck With Cummins ISUZU Engine

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	clw
Orzecznictwo:	CCC,SGS,BV
Numer modelu:	clw5070

Zapłata:

Minimalne zamówienie:	1Unit
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	30 dni od otrzymania wpłaty na konto
Zasady płatności:	L/C, T/T, Western Union, Moneygram, D/A, D/P
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Marka ciężarówek:	Dongfeng	Tom:	280 stóp sześciennych
Model napędu:	6 kół	ilość pędzli:	Brak lub jako opcja
Pojemność zbiornika na wodę:	70 stóp sześciennych	Pojemność pojemnika na śmieci:	200 stóp sześciennych
Silnik pomocniczy:	ISUZU lub Cummins 77KM	Zawór:	Siemensa
Wydajność zamiatania:	70000m2/godz	Szybkość przebicia:	5-15 km/godz.
Podkreślić:	5T Vacuum Sweeper Truck , Cummins ISUZU Engine Vacuum Sweeper Truck , 70000m2/h Street Vacuum Truck

70000m2/h Dust Sweeping Suction 5Ton Vacuum Sweeper Truck with Cummins ISUZU Engine

Product Description

Main Data:

Cleaning width 3.4 meters,

Cleaning particle diameter 100mm,

Dust Tank Volume: 5 cubic meters,

Water Tank Volume:2 cubic meters,

High-pressure pump: imported Italian pump,

Flow rate: 130L/min,

Cleaning rate can reach 99%.

Cleaning speed is 5-20km/h.

sweeping capacity is 70,000㎡/h

Specifications of 5cbm road sweeper truck

Cabin

Driving type 4x2 LHD OR RHD

single row,with A/C ,with two seats,audio with USB,

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

5950×1990×2500

Wheel base (mm)

3300

Wheel track (front/rear) (mm)

1506/1530

Approach/Departure angle(°)

24/13

Weight in KGS

Tare Weight

4950

payload

2270

Front axles loading capacity

1x2940

Rear axles loading capacity

1x4410

Max. driving speed(km/h)

Engine

Brand

ChaoChai

Model

CY4102 C3F

Horse Power(HP)

95HP

Emission standard

EuroIII

Gearbox

5 forwards & 1 reverse

Steering

Right hand drive

Tire

7.00-16,6 tires with one spare

Max. Cleaning Width

Sweeper Speed

3~20 km/h

Max. Cleaning Capacity

60000 m2/h

Max. Suction grain size

≥110mm

Dumping angle

≥45°

Hopper

4000liters,double layer,Stainless steel inside

Water tank

1500Liters

Auxiliary Engine

Model&Manufacturer

JIANGLING JX493ZQ

Type

Four-injection,water-cooling,turbo-charged,diesel engine

Power

77hp/3600r/min

Max. Rotation Speed

2400r/min

Oil type

0# Diesel,share the same fuel box with chassis

Aerator

Type

High pressure centrifugal Aerator

Curb rotation speed

2600-2900r/min

Driving model

Driven by auxiliary engine and transferred by transmission parts,clutch and belts

Hydraulic System

Type

electro-hydraulic Centralized Control

Main parts

Gear pump,gerotor motor,hyraulic oil cylinder,magnetic valve,manual pump

Overflow pressure

14MPa

Hydraulic oil type

L-HV46(when temperature is 30℃-5℃)
L-HM46(when temperature is 5℃-40℃)

Hydraulic oil box

70L

Water sprinkling

Main parts

Water pump,water filter,sprinkler,water box

Electrical system

Con-structure

Two batteries(in series)

Voltage

24V

Battery model

12-80A.H

Sweeping System

Type

Fours brushes installed between front and rear axle,driven by gerotor motor.Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are gang controlled for up and down.

Sweeper Diameter

900mm

Sweeper rotation speed

80r/min

Sweeper angle adjustment

Forerake 4°-6°and extroversion 2°-4°

Suction Nozzle

Type

U-shaped

Nozzle diameter

200mm

Nozzle ground clearance when operation

5-10mm

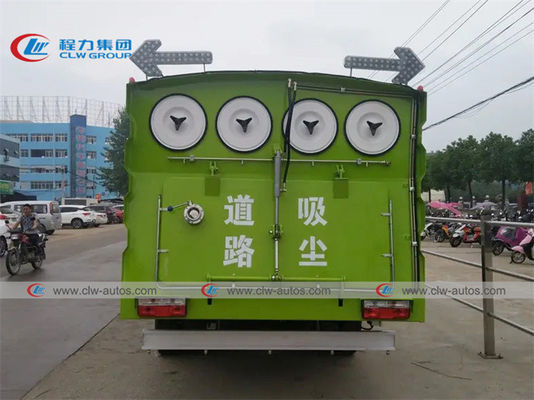

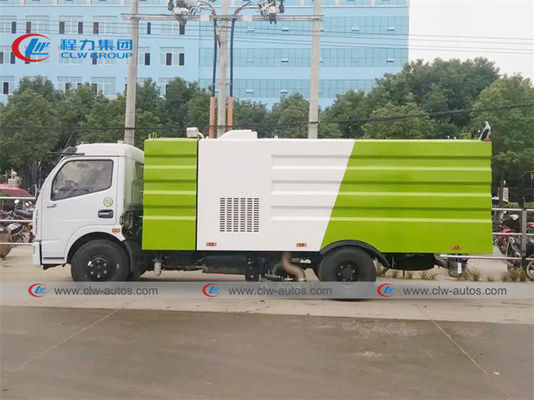

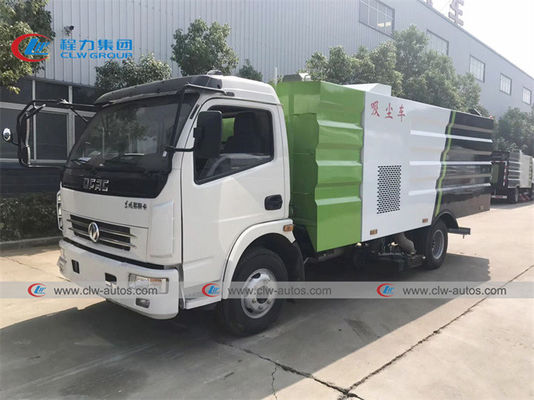

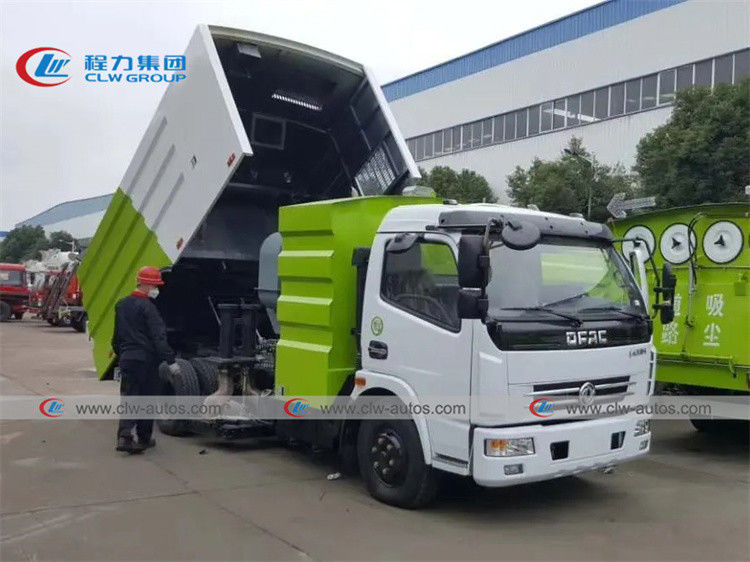

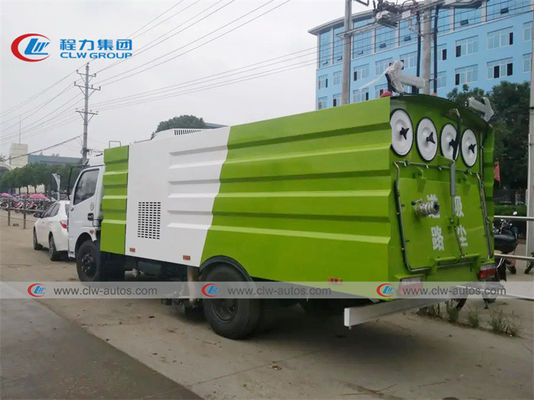

Truck Photos

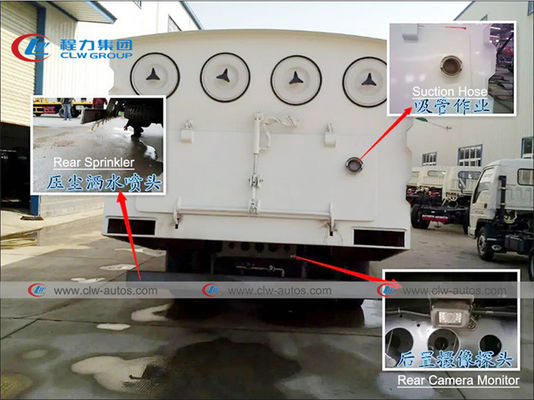

Structure of Sweeper Truck

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of sweeper trucks I can order from your company?

A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied sweeper products to any overseas companies?

A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
