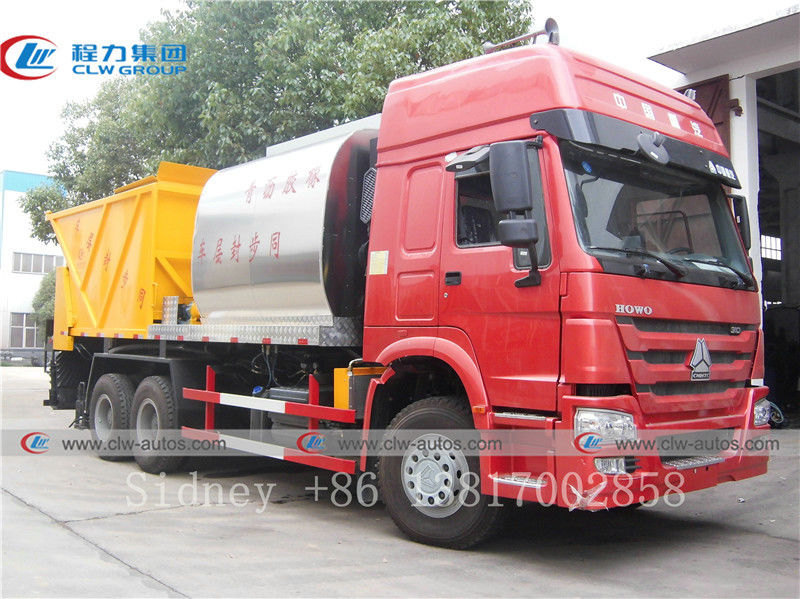

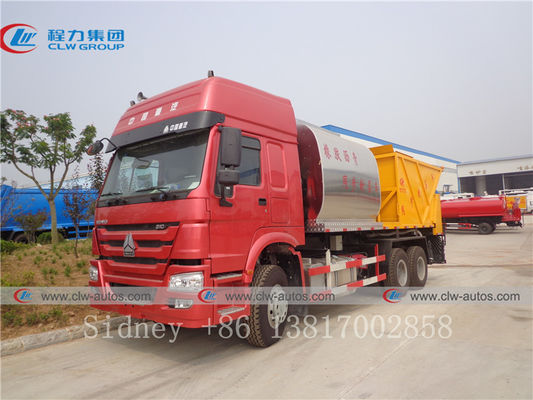

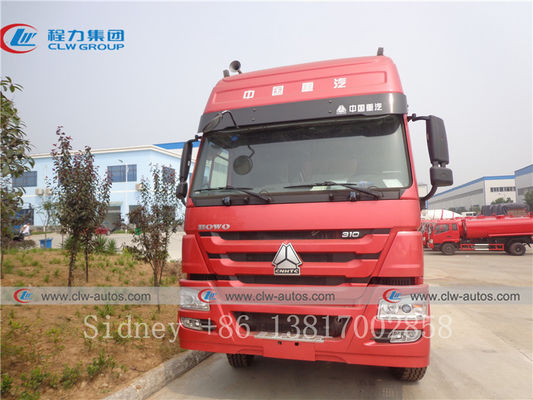

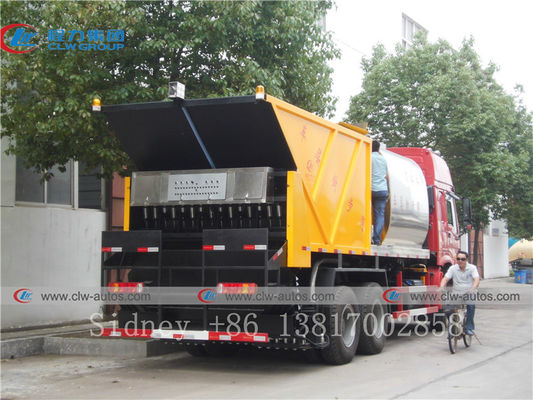

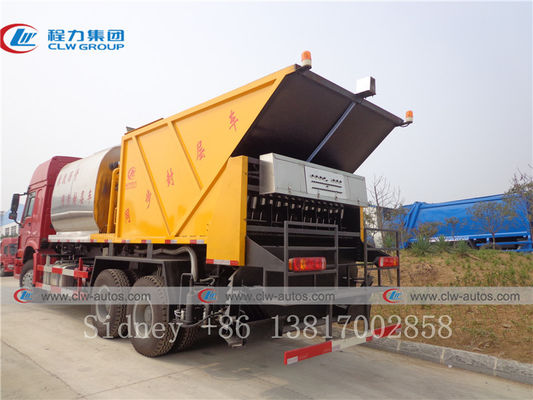

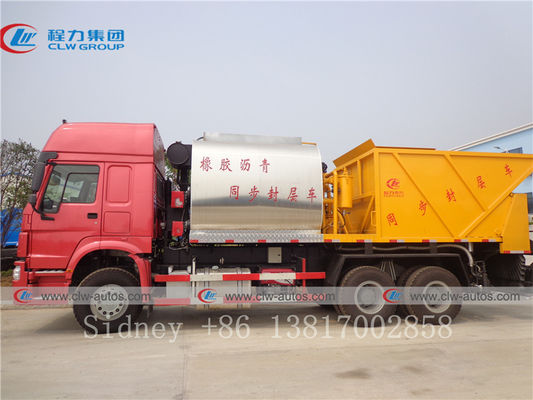

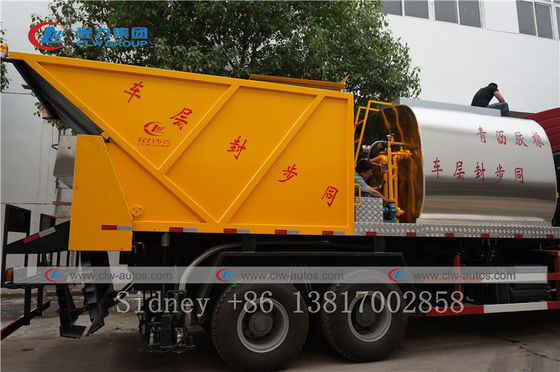

HOWO 6x4 Asphalt Pavement Truck Synchronized Crushed Stone Seal Layer Gravel Synchronous Slurry Seal Chip Sealer Truck
Description
1. Compact structure, short turning radius, applicable to road construction in mountainous and rural areas, widely applicability
2. Materials fall independently due to gravity, how height to be easily operated in height-limited areas including tunnels and culverts
3. Diesel oil burner heats up asphalt via heat-conducting oil, temperature controlled automatically
4. Automatic control, excellent human-machine interface
5. Recycling and spraying of asphalt are automatically controlled by the cab, easy to operate
6. Built-in stirring device, not only spray the emulsified asphalt, cutback asphalt,base asphalt and modified asphalt, but also rubber
(power) asphalt

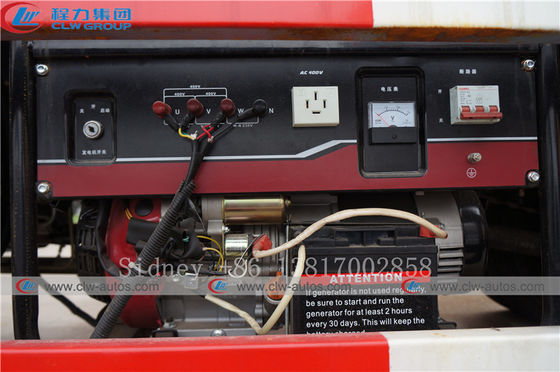

7. Independent external power driving force system to ensure scratch spray
8. Efficient oil heating system, improve the heating efficiency, reduce construction auxiliary time
9. All nozzles and pipes are used oil heating, insulation, ensure asphalt cycle smoothly
10. The computer can automatically control the spray amount of work based on the input parameters and radar data, spray gun
can also be used manually.

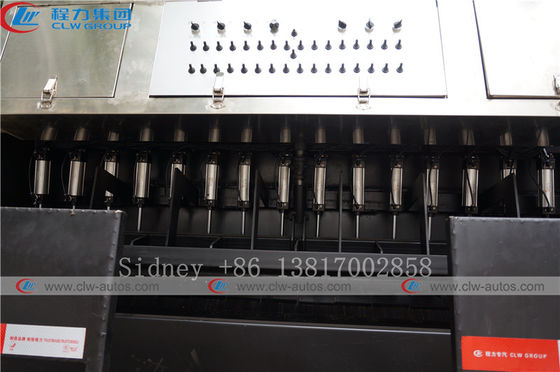

11. The manual / automatic are both implemented independently controlled each nozzle, with the easy to adjust spraying width
12. Good thermal insulation ensure static performance index ≤12 ºC / 8 hours
13. After sprayed,high-pressure air can be used to empty the pipeline pitch; and the machine equip with a diesel fuel filler neck, can be added to an appropriate amount of diesel fuel, combined with high-pressure air more thoroughly emptied of residual bitumen
14. Stainless steel plate packaging, corrosion and durable
Specification
| Product Model |
SINOTRUK HOWO Synchronous Pavement Surface Vehicle |
Overall Dimension(L*W*H)(mm) |
10200×2500×3563 |
| Wheelbase(mm) |
4600+1350 |
Asphalt TankDimension(L*W*H)(mm) |
2400*2350*2020 |
| F/ R suspension(mm) |
1500/2725 |
Front/Rear tread(mm) |
2022,1830/1830 |
| Gross weight (kg) |
25000 |
Number of Axles |
3 |
| Curb weight(kg) |
17370 |
F/R axle load(Kg) |
7000/16000/16000 |
| Approach/ departure angle (° ) |
16/14 |
Max Speed (km/h) |
90 |
| Cab capacity |
2 persons |
Cab Type |
Flat proof, single sleeper, air conditioning |
| Chassis Technical Parameter |
| Chassis Model |
ZZ1257 |
Chassis manufacturer |
CNHTC Jinan Truck Co., Ltd |
| Transmission type |
Manual |
Gear Box |
10 forward and 2 reverse |
| Steering Type |
LHD/RHD, power steering |
Traction Type |
6*4 |
| Brake System |
Air brake |
Tire size/type |
12.00R22.5 |
| Engine Technical Parameter |
| Engine Model |
WD615.69 |
Engine manufacturer |
CNHTC |
| Fuel type |
diesel |
Displacement( ml) |
9726 |
| Emission stand |
Euro 2 |
Power/Horse power(KW)/(HP) |
247(336hp) |
| Equipment & Performance |
1. Asphalt Tank volume: 8m3 with 80mm insulation layer, Macadam Tank Volume: 12m3 |
| 2. Transport medium: emulsified asphalt. |
| 3. All pipes can be held thermal insulation by conducting oil |
| 4. Control system is imported PLC from Germany, burners is imported from Italy |
| 5. Asphalt spraying width: 0.3-4m, spraying quantity: 0.3-3.5L/m2, Stone spraying width:0.3-4m, |
| 6 Asphalt heating way: automatic diesel oil burners |
| 7 Main parts of hydraulic system is imported |
Reference Pictures
Main Structure Diagram
Working Scene
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
