HOWO 4X2 LHD 15000 Liters LPG Gas Truck 15cbm 7.5 Tons Bobtail Propane Truck with dispenser for AA RANO
Description
1) Truck Brand of LPG Gas Tanker Truck: SINOTRUK Howo OR Other customized truck chassis brand: dongfeng, isuzu, foton, shacman and so on.
2) Tank Size of LPG Gas Tanker Truck: 15000 Liters, 15000L, 15cbm, or other customized volume as need.
3) Function of LPG Gas Tanker Truck: Propane or Butan Gas Delivery/ Refilling/bottling/filling

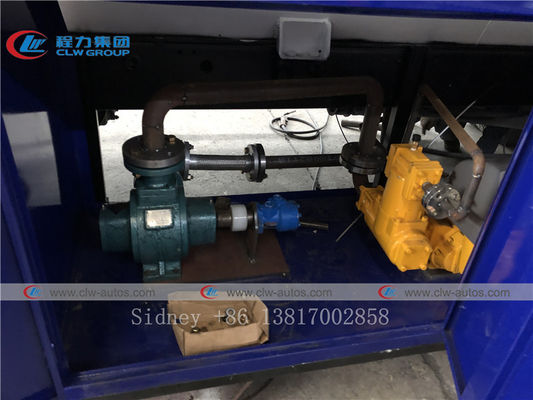

4) Refiling System of LPG Gas Tanker Truck: 2" Flowmeter or intelligent filling dispenser machine, 2" Corken or Chinese brand Pump, 15meters Filling Hose Reel
5) Truck Spec of LPG Gas Tanker Truck: Yuchai Engine 140HP, WLY6T51 Gearbox 6 Forward & 1 Revers, 8.25R20 Tires
Specifications
| Item No. |
Parameters |
| Overall Dimension |
7600x2230x2810 mm |
| Gross Vehicle Weight |
12000 kg |
| Curb Weight |
5000 kg |
| Loading Weight |
7000 Kg |
| Wheel Base |
4700 mm |
| Front/rear Overhang |
1115/1485 mm |
| Front/rear Tread |
1586/1530 mm |
| Approach/Departure Angle |
18/12 degree |
| Engine |
Chaochai engine CY4E160-33 Diesel Engine( Mechanical Pump), Four Stroke, 4 Cylinder in line. |
| Engine horsepower |
160 HP Euro II |
| Displacement |
4257mL(Diesel) |
| Max Driving Speed |
100 km/h |
| Gear Box |
Manual Transmission 5 Forward & 1 Reverse Gear |
| Cabin |
Left Hand Driving, 2 Passengers Allowed, with Air Conditioner or RHD Customized |
| Tire |
8.25R20, 6 pieces with 1 spare tire. |
| Tank Capacity |
15,000 Liters |
| Filling Content |
Liquefied Petroleum Gas (Propane) |
| Tank Material |
Q345R high tension steel, 10mm Thick Tank Body. |
| Standard Equipment |

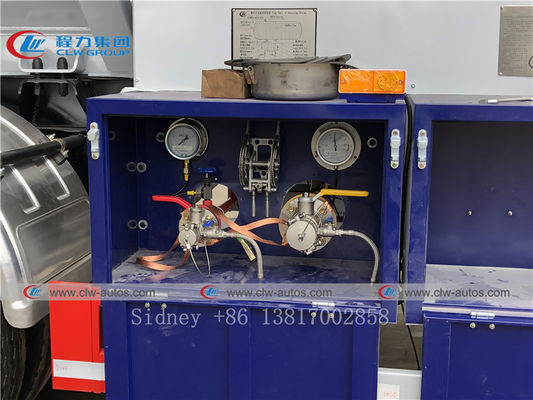

Safety Valve, Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. |
| Specification |
Designed Pressure: 1.66Mpa
Liquid Density: 500-590 kg/m3
Working Temperature: under 50 centi-degree
Corrosion Allowance: 1mm |

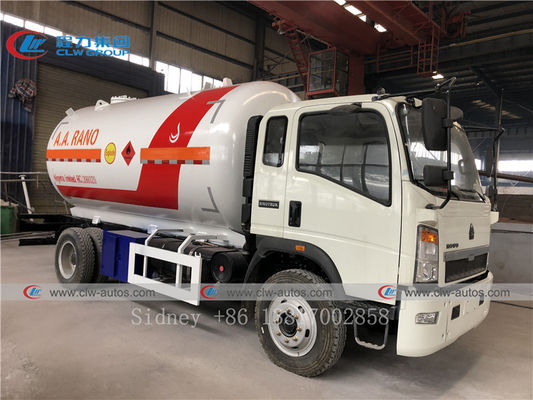

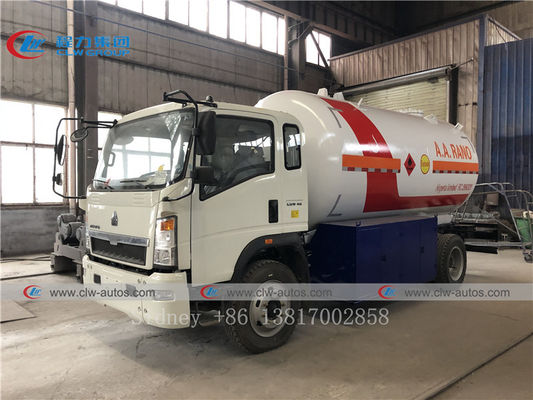

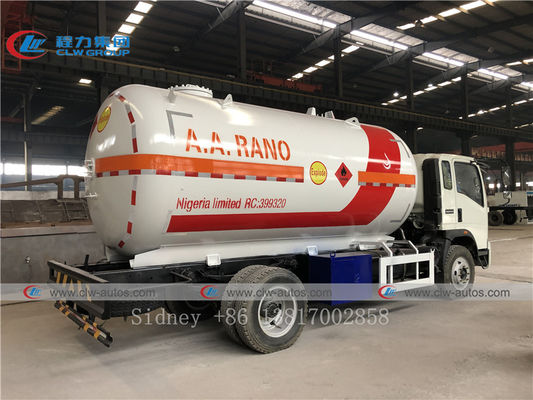

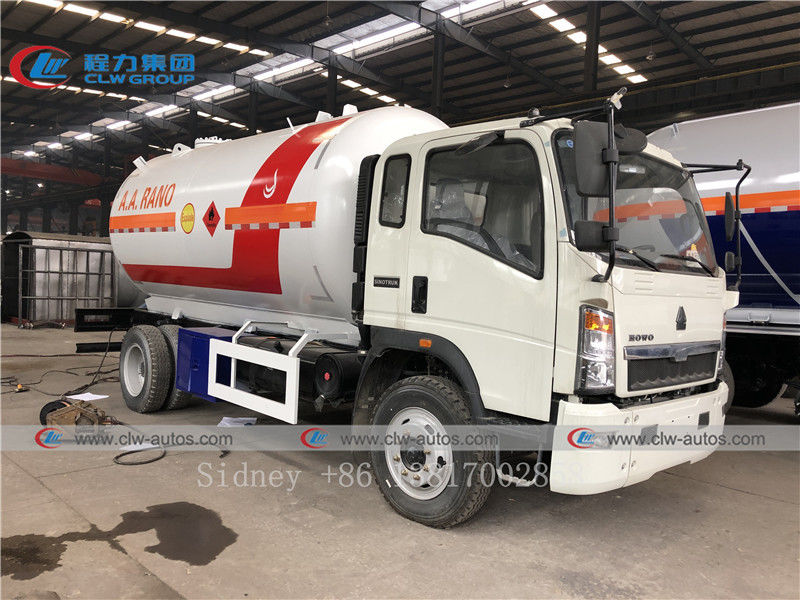

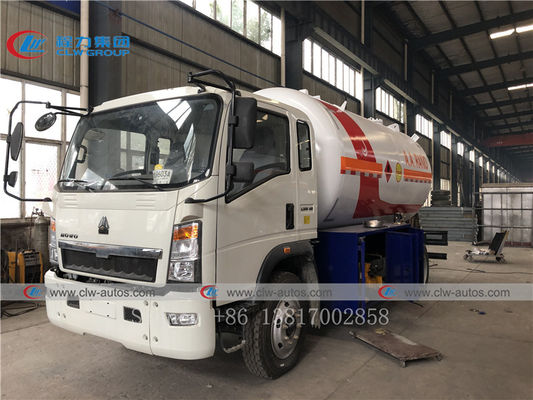

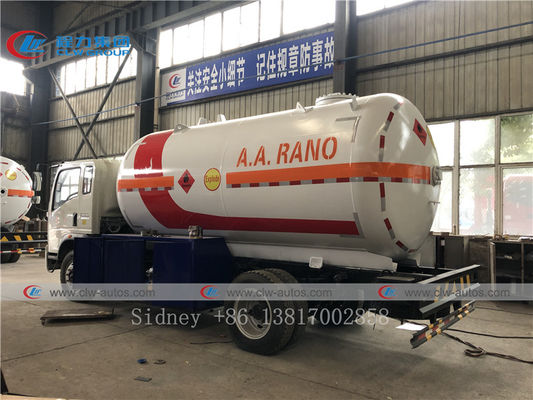

Reference photos
Production Process of Propane Gas Storage Tank
After sales service
Before purchasing:
1- Quick reply on customers' inquiry;
2- Professional suggestion on truck choice according to different countries.
3- Details quotation with spec.and reasonable price.
4- Welcome to visit our company before purchasing.
After purchasing:
1- Production pictures and video updated every week.
2- Customer can visit factory after truck completion or arrange third party inspection.
After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
FAQ
Q1: What kinds of lpg bobtail I can order from your company?
A: We can supply lpg bobtail from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.
Q2: What is your production standard of lpg bobtail? Whether your lpg bobtail exported to others countries?
A: lpg bobtail is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.
Q3: What's the difference between your company and other chinese supplier?
A: As the top manufacturer of lpg trucks and products for more than 15 years,our salesmen are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
