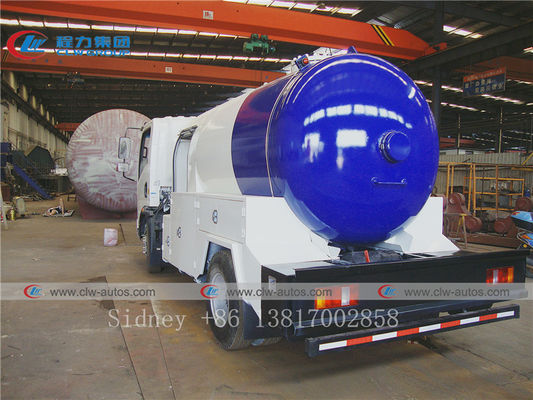

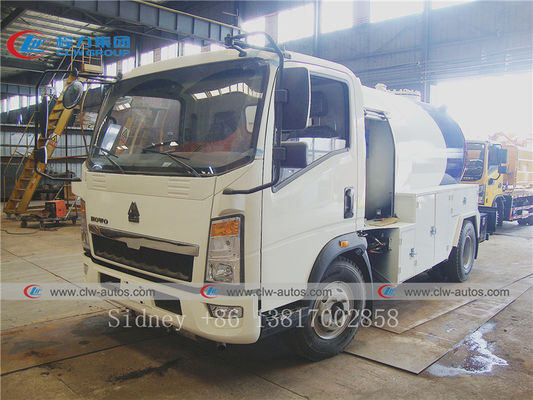

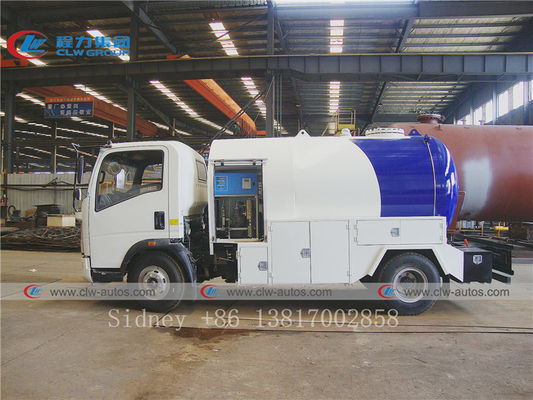

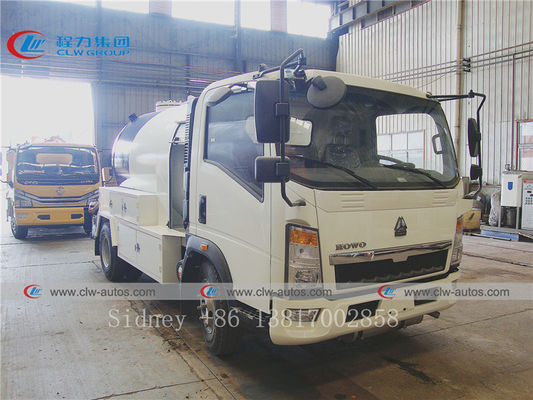

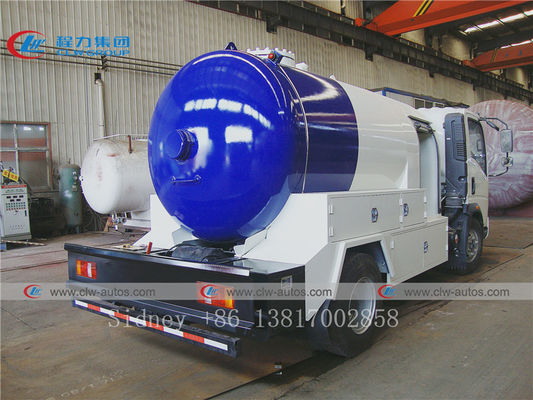

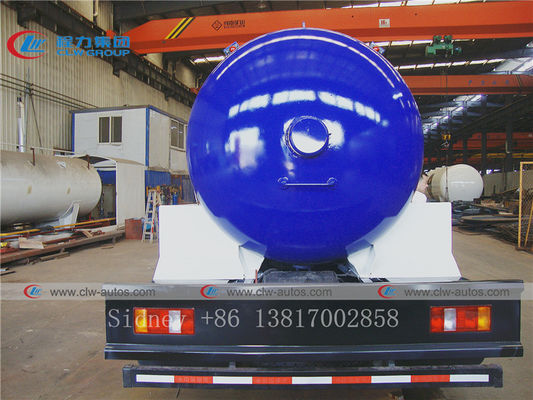

5cbm 5000liters Sinotuck HOWO 4X2 LPG bobtail Tanker Truck with Dispenser
Product Description
1. Storage medium of LPG bobtail truck : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Truck Brand of LPG Gas Bobtail : Howo,optional for dongfeng,faw,isuzu,foton and other brands
3. Available tank capacity of LPG bobtail truck: 5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.
4. Function of LPG Gas Bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling
5. Manufacturing standards of LPG bobtail truck: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008

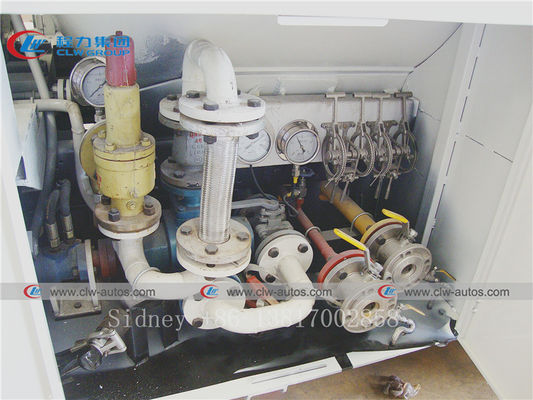

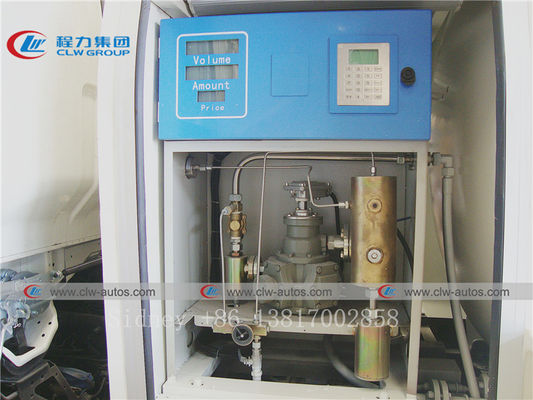

6. Refiling System of LPG Gas Bobtail: 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel
Specification
| Main Technical Parameter |
| Model Name |
HOWO 4x2 5000Liters LPG bobtail truck with dispenser |
| Driving Type |
4x2,left hand drive |
| Weights |
| Rated payload weight(kg) |
5000 |
| Curb weight(kg) |
4990 |
| Dimensions |
| Wheelbase(mm) |
3360 |
| Overall Dimension(mm) |
5900×2045×2600 |
| Tank volume |
5000L |
| Max speed(km/h) |
90 |
| Engine |
| Engine model |
CHAOCAI 120HP |
| Engine type |
Diesel 4-storke, Inter-cooling,water-cooling |
| No. of cylinders |
straight-4 cylinders |
| Displacement(ml) |
3856 |
| Rated power Rev((Kw) |
88 kw |
| Drive Line |
| Transmission |
6 speeds,6 forwards, 1 reverse gear,manual operation |
| Brake system |
Air break |
| Cab |
| cabin |
SINOTRUK HOWO |
| Axle |
| Front axle |
2.4 tons |
| Rear axle |
4.2 tons |
| Tire specification |
| Tire specification |
7.00R16 standard tire |
| Tire quality |
6 tires+1 spare tire |
| Other |
| Electric system |
24V |
| Tool |
Standard equipment |
| Configuration |
| Tanker material |
Q345R |
| Others |
Storage for:liquified propane |
| design pressure 1.77Mpa; |
| design temperature 50 ; |
| filling density: 0.42T/M3; |
| corrosion allowance: 1mm; |
| Industry Protocol |
GB150-1998 "Steel Pressure Vessels," Pressure Vessel Safety technical monitoring procedures, LPG safety inspection procedure |

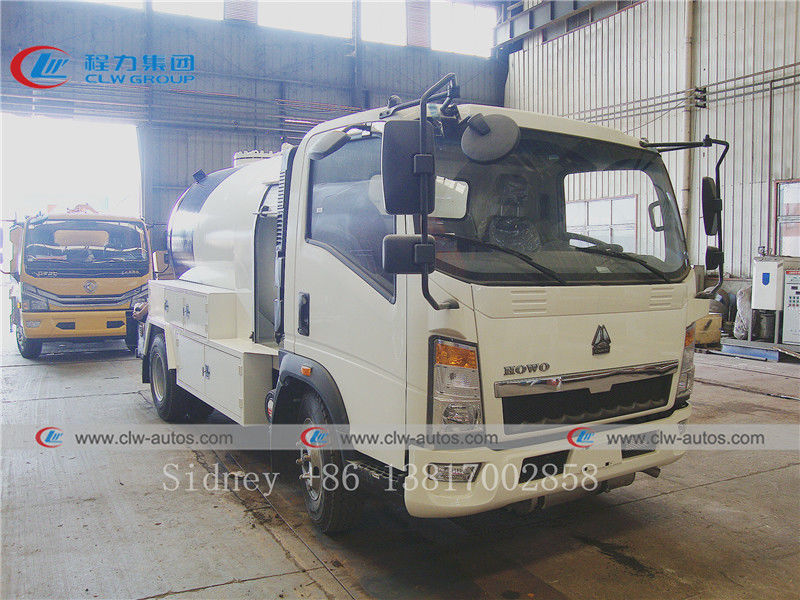

Reference photos
Production Process of Propane Gas Storage Tank
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
