Dongfeng Duolia 4000L 4CBM stainless steel tank Milk Delivery Truck Milk Tanker Truck fresh milk transport truck
Function:
Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.
We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.
Milk tank truck can be devided into many compartments to transport different types of drinkable liquid, milk, ewe's milk...Every compartments are equipped with CIP cleaning function.
Description:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Specification
| Item No. |
Parameters |
| Overall Dimension |
5995x2100x2450mm |
| Driving Model |
Left hand drive |
| Loading Weight |
4000 Kg |
| Wheel Base |
3360mm |
| Front/rear Tread |
1015/1972 mm |
| Approach/Departure Angle |
22/14 degree |
| Front Axle |
2550kg |
| Rear Axle |
4550kg |
| Engine |
CY4102 |
| Engine horsepower |
95HP |
| Displacement |
3856mL |
| Max Driving Speed |
105 km/h |
| Gearbox |
WLY6T46, Manual Transmission |
| Cabin |
Air Conditioner optional |
| Tire |
7.00R16 |
| Milk Tank Body |
|
| Tank Volume |
4000Liters/4cbm |
| Tank Size |
According to design drawing |
| Tank Material |
Inner Stainless Steel material:304/2B food degree;
Insulation material:100mm polyurethane foam
Cover steel:2mm mirror Austenite SUS 304 stainless steel |
| Compartment no. |
1 |
| Discharging Outlet no. |
1 |
| Breath valve no. |
1 |
| Water Inlet pipeline |
Ф38mm |
| Manhole |
DN500mm with food grade rubber |
| Washing equipment |
Automatic cleaning ball in every compartment |
| LOGO |
Company Logo or any advertisement can be printed on the tank according to the customer's design. |

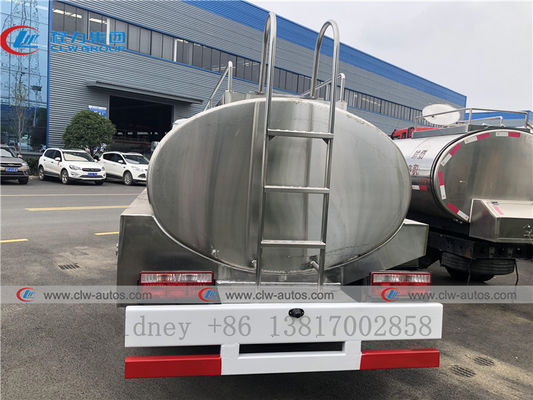

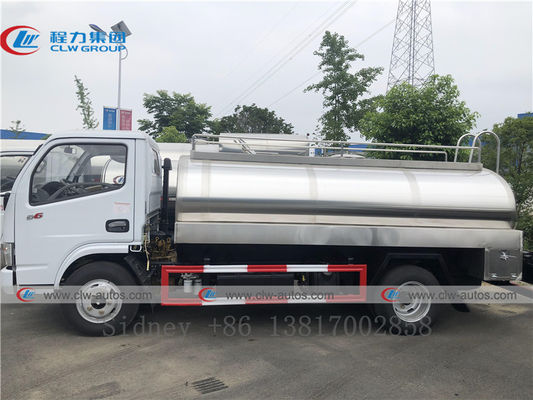

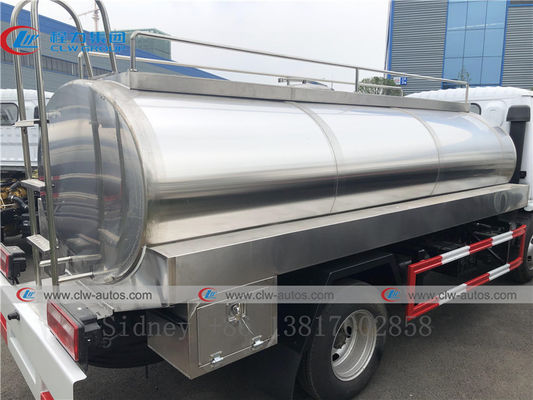

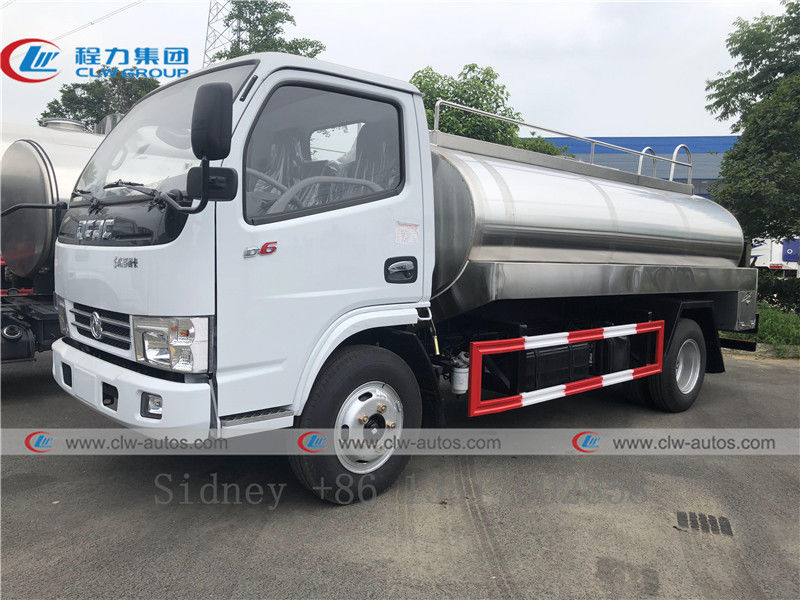

Reference Pictures of milk delivery truck

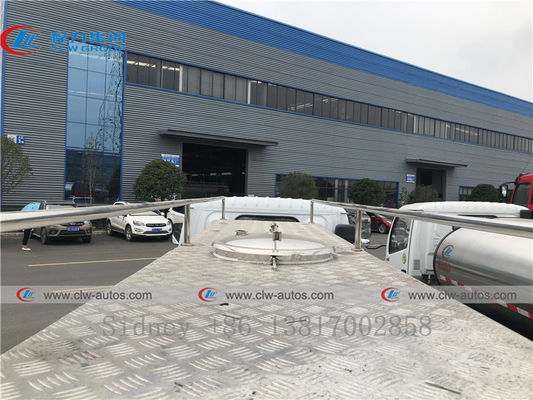

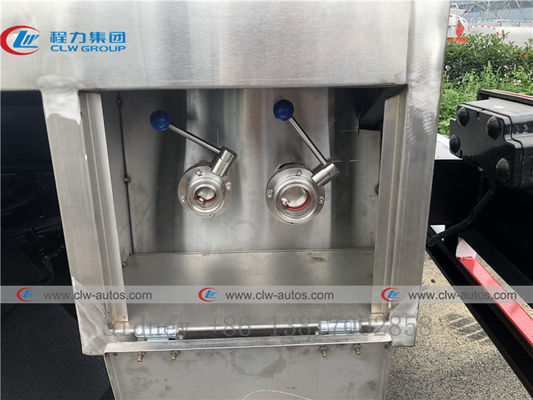

Parts details
Workshop overview
Factory overview
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
