CCC 42CBM Air Suspension Fuel Tanker Trailer With 6 Compartments

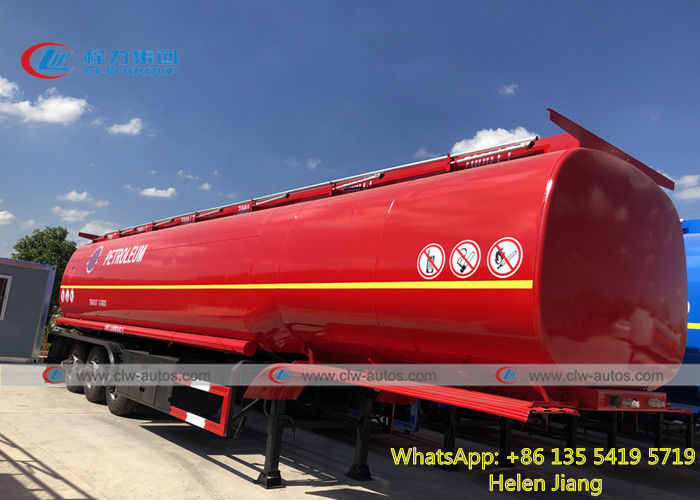

Duży Obraz : CCC 42CBM Air Suspension Fuel Tanker Trailer With 6 Compartments

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW2021060726

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiated
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Materiał cysterny:	Stal węglowa, stal nierdzewna, stop aluminium	Oś:	Marka FUWA, BPW, L1, HJ
Obciążenie osi:	13 ton lub 16 ton	Zbiornikowiec:	42M3, 42 metry sześcienne, 42000 LITRÓW
Przedział:	2 3 4 5 6 przegródek	Przednia oś:	13 ton lub 16 ton, podnoszona oś przednia
zawieszenie:	Zawieszenie powietrza	Transport:	Paliwo, olej, olej napędowy, benzyna, benzyna
Sprzęt:	3 osie, zawieszenie przednie z poduszką powietrzną	Pojemność czołgów:	42M3 45M3 46M3 48M3 50M3 55M3 60M3
Podkreślić:	42CBM Fuel Tanker Trailer , CCC Air Suspension Fuel Tanker Trailer , 42CBM Oil Tanker Trailer

Tri Axle 42CBM 42m3 42000Liters Air Suspension Fuel Oil Transport Tank Trailer With 6 Compartments

Description:
** Tank material could be carbon steel, stainless steel, alluminum...
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.

1. Purpose: It used for transporting all kinds of chemical liquid such as diesel and gasoline etc.
2. Main parts: Axle, Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304, Stainless steel 316, Stainless steel 316L and Aluminium alloyetc.
4. Available tank volume: 38CBM - 60CBM/2 Axles/3 Axles/4 Axles
5. Axle brand: China famous brand FUWA/China brand L1/Germany brand BPW.

product Specification

Main Dimensions
Overall Length	11240mm
Overall Height	2800mm
Tare Weight	11500KGS
Loading Capacity	42m3
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape		Mono block Cylinder
Total Volume(m³)		4wCBM
Tanker Body Material		6mm steel / Q235 high tensile strength steel
End plate		6mm steel sheet/Q235 high tensile strength steel
Manhole cover		Aluminum alloy API manhole cover, ∮500mm ,6 sets with 6 breather valve
Bottom Valve		1-6 sets of Aluminum API Pneumatic Bottom Valve
Discharging valve		1-6 set ∮100mm discharging valves
Discharging Pipe		4”rubber hose, 2 pcs, 6m long
Chassis
Main Beams		Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation;
Axle		3 axles,
		BPW or FUWA 13 Ton
Landing Gear		JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin		JOST brand 2” bolt-in king pin
Suspension		Air suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim9		9.25R22.5 wheel rim, 13 pieces
Tire		315/80R22.5 tubeless tire with one spare tire, 13 pieces
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories		One standard tool box

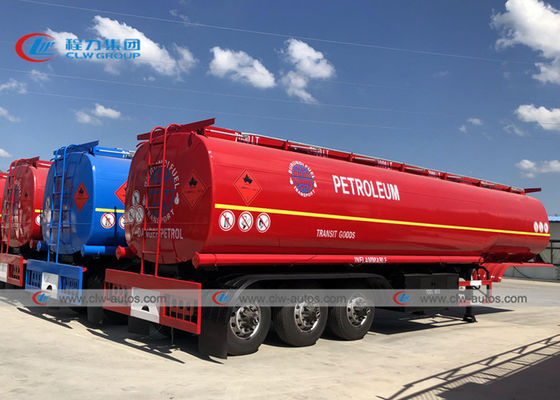

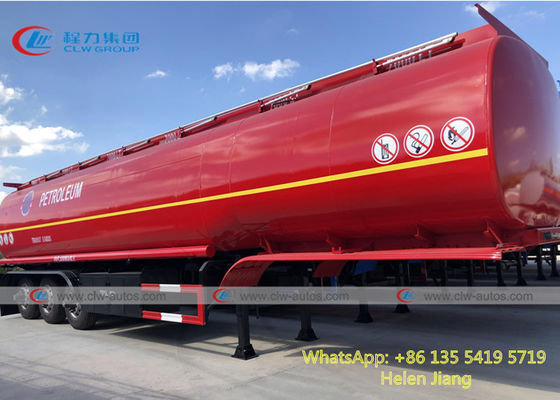

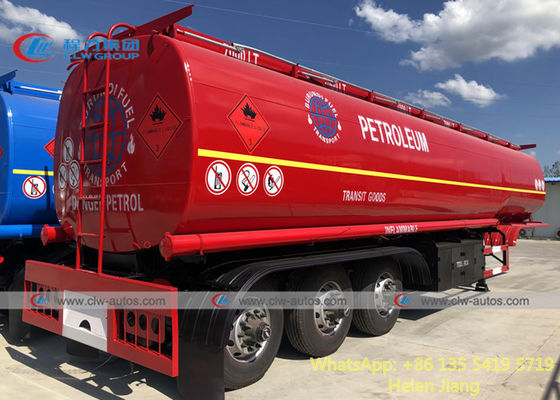

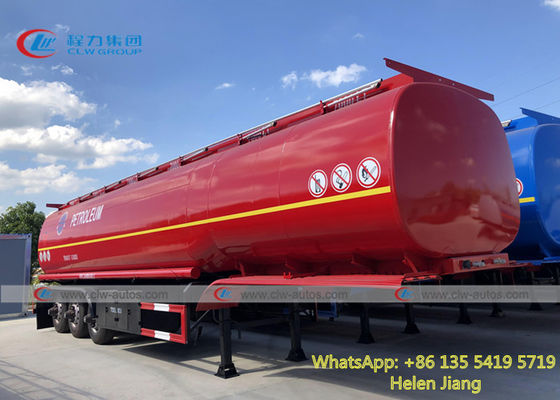

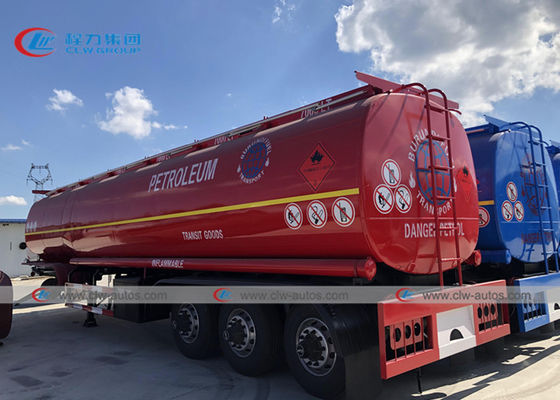

CCC 42CBM Air Suspension Fuel Tanker Trailer With 6 Compartments 0

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

Our service

Before purchasing:

Quick reply on customers' inquiry;
Professional suggestion on truck choice according to different countries.
Details quotation with spec.and reasonable price.
Welcome to visit our company before purchasing.

After purchasing:

Production pictures and video updated every week.
Customer can visit factory after truck completion or arrange third party inspection.

After-sales service:
1- English Operation Video
2- Free operation and technical train at factory but not include accommodation
3- Spare parts supplied at factory price whenever needed.
4- Engineers can be sent to your country and offer local engineering support and train.
