HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Dom ProduktyCiężarówka zamiatająca drogi

Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck

Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck
Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck

Duży Obraz :  Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Hubei, Chiny
Nazwa handlowa: CLW
Orzecznictwo: CCC, ISO9001, BV, SGS
Numer modelu: CLW20210727

Zapłata:

Minimalne zamówienie: 1 jednostki
Cena: Negotiated
Szczegóły pakowania: Nago woskowana przed dostawą
Czas dostawy: 35-40 dni roboczych
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 500 jednostek miesięcznie
Szczegółowy opis produktu
Nazwa produktu: Zamiatarka drogowa, pojazd do odkurzania Marka podwozia ciężarówki: JMC, DONGFENG, HOWO, FAW inna chińska marka
Pojemność kosza na śmieci: 3m3, 5m3, 7m3, 8m3, 12m3 Typ ciała: Zamiatarka próżniowa Zamiatanie. Ssanie
Kształt zbiornika zamiatarki drogowej: Okrągły, kwadrat Typ ciężarówki: Zbiornik zamiatarki modlącej się na wodę, sprzątanie ulic
Typ napędu: Kierownica po prawej stronie, kierownica po lewej stronie Model napędu: 4X2, 6-kołowy. 6X4, 10-kołowy
Zbiornik czystej wody: 1m3, 1,5m3, 2500litrów. 4cbm Specyfikacja: 3000L, 4000L, 5000L, małe rozmiary
Podkreślić:

4x2 Street Sweeper Vacuum Truck

,

FAW Street Sweeper Vacuum Truck

,

FAW Vacuum Road Sweeper Truck

4*2 Vacuum Road Sweeper Truck Street Cleaning Vehicle with FAW truck





Features
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.

Road Sweeper (sweeper truck) is one of the sanitation equipments. It is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling and transportation. It can be widely used in road highways, municipal and airport roads, urban residential areas, parks and other roads. Pavement sweepers not only clean trash, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working conditions of the road surface, and reduces and prevents traffic accidents. The occurrence and further extend the life of the road. It has become a trend to use pavement sweepers for road maintenance in China.

The road sweeper is a special sanitation vehicle equipped with a sweeping brush and other cleaning systems. It is mainly used for sweeping operations in large and medium-sized urban sanitation departments. Road sweepers have greatly liberated the work intensity of sanitation workers, increased work efficiency, and reduced secondary pollution such as dust.



Specification for Road Sweeper ttruck:

Condition New condition/Left hand drive/4x2
Chassis Curb weight(kg) 10520
Wheelbase(mm) 4500
Dimensions(mm) 7880*2470*3150
Overhang (front/rear) (mm) 1430/1950
Wheel track (front/rear) (mm) 1880/1800
Approach/Departure angle(°) 20/10
Axle Load(kg) 6000/10000
Max. driving speed(km/h) 90
Brand Japanese brand

Model DFL1160
Tire Number 6pcs with one spare tire
Specifications 9.00-20
Clutch Reinforced diaphragm clutch
Gear box Manual type, 6 Forwards & 1 Reverse
Cab It can accommodate three people
Engine Model 4HK1-TCG40
Displacement(ml) 5900
Power(kw)/Horsepower(HP) 125/190
Emission standard Euro 4

Brakes Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Upper
Tank Garbage tank Tank material Stainless steel 304
Tank volume(cbm) 8.0cbm
Water tank Tank material Stainless steel 304
Tank volume(cbm) 4.0cbm
Auxiliary engine Model Dongfeng Cummins(Famous brand)
Power(kw) 100kw
Brush Quantity(pc) 4 pcs
Working area(m) 3.0-3.5m
Remarks 1, With water spray-bar
2, Rear vacuum cleaner
3, Blower
4, Color is optional
Optional 1, Front and rear water spray-bar
2, Visual imaging system
3, Front hydraulic cleaning brush



Road sweeper structure parameters
Dust tank volume 4500L Water tank volume 1000L
Sweep width 3000m Cleaning speed 3-20km/h
Cleaning ability 9000-60000 m2/h Cleaning efficiency 98%
Maximum suction particle 120mm Min. clearance of suction nozzle 200mm
Unloading angle 45° Unloading height 970mm
    Color and Logo Optional
Standard configuration Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration surveillance system,rolling brush.

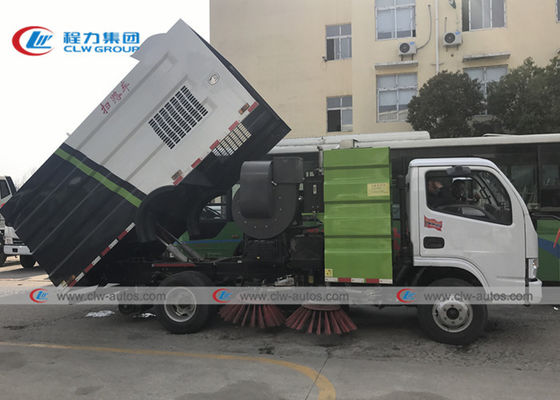

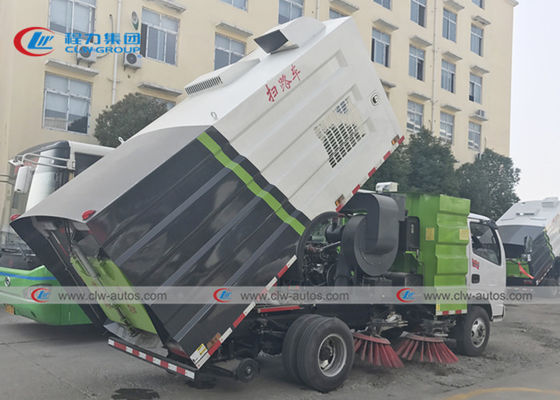

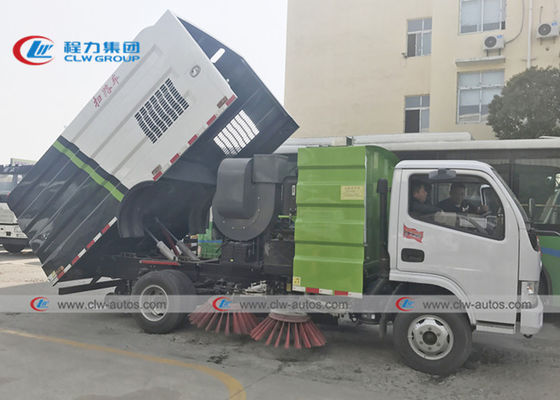

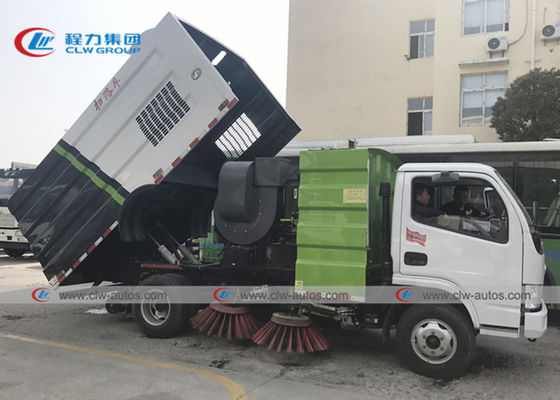

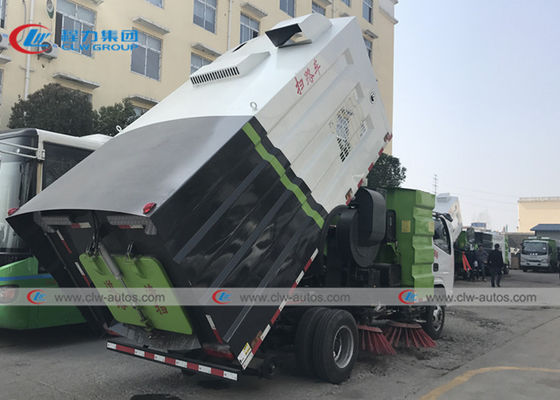

More pictures for Road Sweeper Truck:

Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck 0Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck 1Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck 2Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck 3

Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck 4

Euro 4 Standard FAW 4x2 Street Sweeper Vacuum Truck 5



ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • 12 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • LPG/Truck Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
