Sweeping Mode:
Road Sweeping mode, which only uses the sweeping brush to sweep the road.
Working Flow Chart:
Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes
Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside
Washing and Sweeping mode:
Road Sweeping and road cleaning functions are turned on at the same time.
Working Flow Chart:
Auxiliary Engine----Hydraulic Oil Pump-----Left & Right Sweeper Disc----Left & Right Sweeping Brushes
Auxiliary Engine--- Fan Working----Dust Tank, Suction Pipe & Sution Nozzle---High Speed Air Flow bring garbage Inside
Auxiliary Engine---Auto Clutch—High Pressure Water Pump---Delivery Water----Left & Right Cleaning Nozzle
Rear Spraying:
This function is the same as the sprinkler function, mainly used to reduce dust on the road.
There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.
Front Flushing:
This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.
Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.
Specifications of 10Ton Vacuum Road Sweeper Truck
Rear Spraying:
This function is the same as the sprinkler function, mainly used to reduce dust on the road.
There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.
Front Flushing:
This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface.
Use the low pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.
Product
Dongfeng Kingrun Cleaning Sweeper Truck
Model No.
CLW5180TXSD6
Chassis Model No.
DFH1180EX8
DAFC
Standard
GB3847-2005, GB17691-2018
Euro 2-Euro6
Engine
Truck Engine
Engine Model
B6.2NS6B210 Cummins
Power(kw)
154
Hp(ps)
210
Displacement (ml)
6200
Deputy Engine
Sweeper Engine Model
B170 33
Power (kw)
125
HP(ps)
170
Displacement(ml)
5900
Diesel Type
Same Type of Diesel as truck
Truck Specification
Overall Size mm
L 8550* W2480* H3130
Wheel Base(mm)
5000
Tire
275/80R22.5 18PR
Tire Quantity
7(include 1 Spare)
Wheel Track
Front(mm)
1876
Rear(mm)
1820
Passenger Allowed
3人
Overhang Front/Rear (mm)
1430/2220
Approaching Angle
17°
Departure Angle
25°
Ground Clearance(mm)
320
Loading Weight(kg)
6870
Truck Weight(kg)
11000
Gross Vehicle Weight (kg)
18000
Sweeping Specification
Garbage Box( m3 )
7,000L Stainless Steel
Water Tank( m3 )
9,000L Stainless Steel
Sweeping Width (mm)
2800-3200
Sweeping Speed (km/h)
3-15
Truck Speed in cleaning (km/h)
15-20
Sweeping Capacity (m2/h)
48000
Suction
Capacity
Density(g/cm3)
2.0
Weight (kg)
1.5
Max Diameter (mm)
≥100
Garbage Box Dumping Angle
≥45°
Sweeping Efficiency
≥96%
Working Noise(db)
<88 Meet GB7258 Standard
Dust Control System
Spraying Type
Low Pressure Fog Type
Main Components
Imported high pressure pump water filter pipeline stainless steel spray frame high pressure nozzle
Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches
Control Switch
Schneider Shanghai
PLC
BaichaoFu
Braker
Higer
Battery
12V-70A.H (2 units in parallel)
Fan System
Type
High-pressure Centrifugal Fan
Brand
Changsha Lianyue
Rated working speed
2700 r/min
Transmission type
Auxiliary engine, clutch, high temperature resistant A-belt drive with teeth (4)
Fan Belt
Zhejiang Sanshili
Automatic clutch
centrifugal type, imported material
Air Volume
5000 ~ 7800 (m3/h)

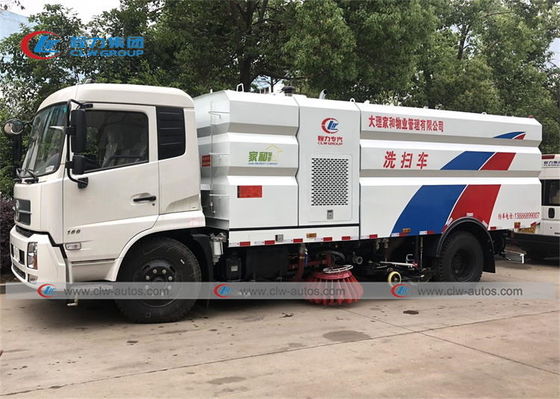

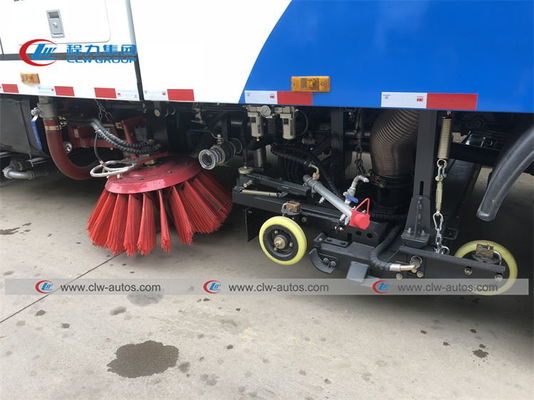

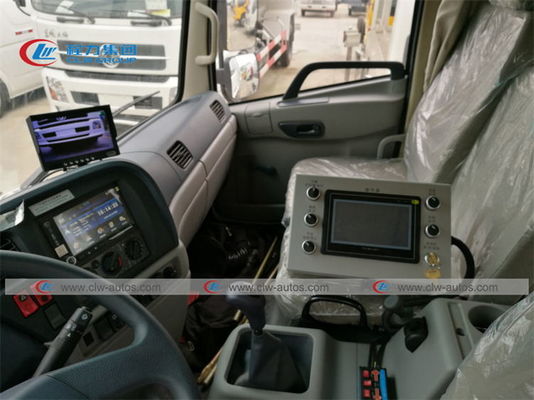

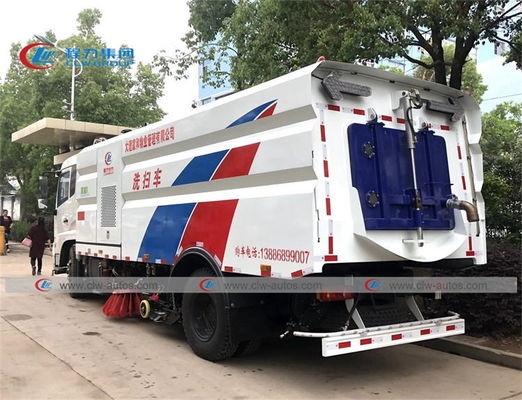

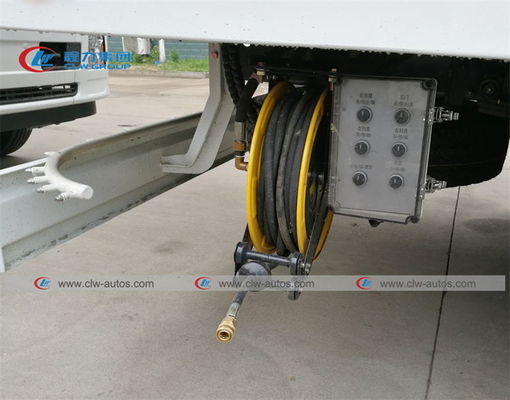

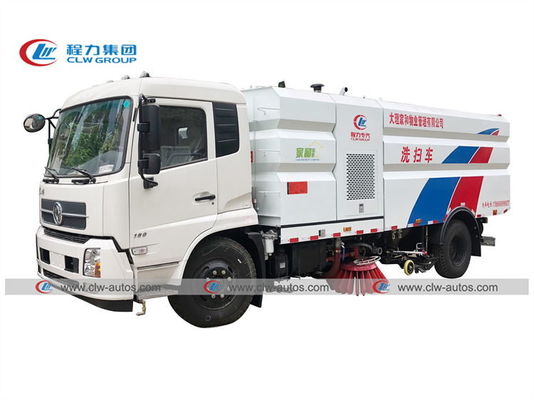

Truck Photos:
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
