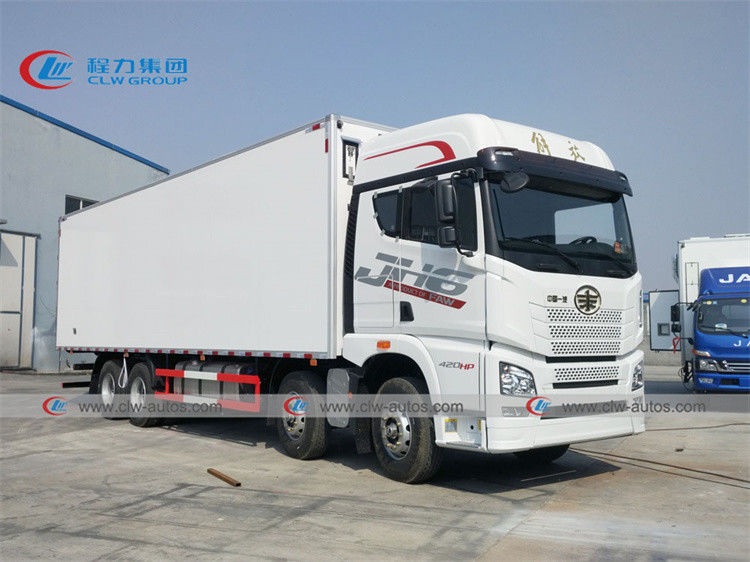

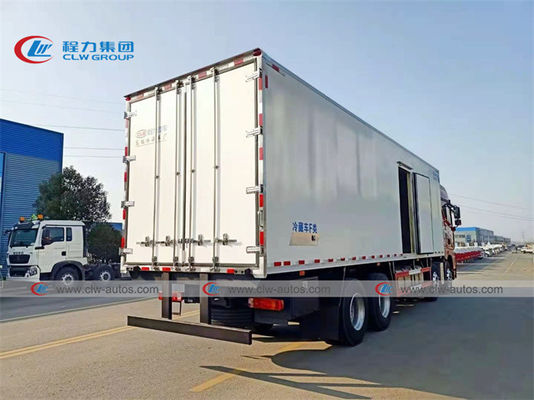

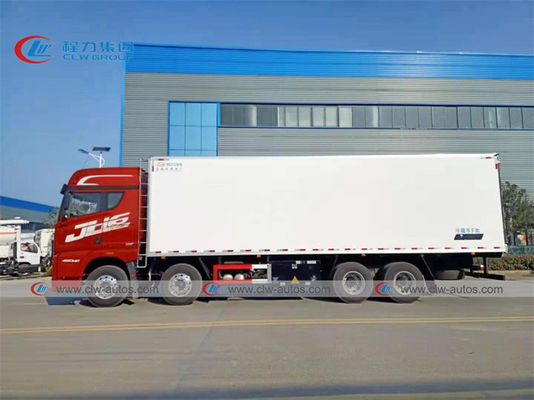

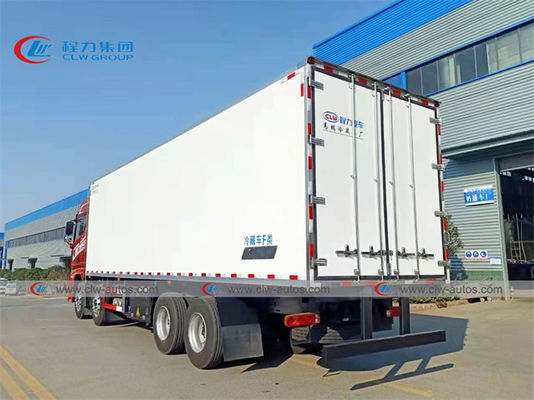

FAW JH6 30T MP4000 Thermo King Refrigerator Van Truck

FAW JH6 30Ton MP4000 Thermo King Refrigerateor Van Truck

Overall Truck Data:

Vehicle model: CA5310XLCP25K2L7T4E5A80

Vehicle size: 12×2.6×3.995meter

Volume: 56 square meters /1978 square foot

Box Dimension: 9.4×2.43×2.48meter

Total mass: 31 tons

Truck weight: 13.6 tons

Actual loading: 20-30 tons

Tire: 12R22.5 18PR

Chassis Specification:

Cabin: JH6 flat floor, Half Row, Semi-high Roof cab (four-point air suspension) pilot version,

Engine: Xichai CA6DM2-42E51 420 HP Engine,

Gearbox: FAW CA12TAX210M3 (all aluminum shell),

Rear Axle: 435 upgraded stamping and welding bridge (speed ratio 3.727),

Battery: Camel brand 180Ah battery,

Fuel Tank: 800L aluminum fuel tank, TRW steering gear,

Clutch: WABCO clutch booster, WABCO valve for the whole vehicle,

Electric lift, Electric Rearview Mirror, Electric Doors & Windows, Air Conditioner.

9.6 meters long FAW JH6 Refrigerated Truck Features:

• Airtightness

The container of a refrigerated truck needs to be tightly sealed to reduce heat exchange with the outside, so as to ensure that the temperature in the refrigerated container is kept low.

• Refrigeration

The installed refrigeration equipment is connected to the container and provides continuous refrigeration to ensure that the temperature of the container is within the allowable range of the goods.

• Portability

Generally, the goods transported by refrigerated trucks are items that cannot be stored for a long time. Although there are refrigeration equipment, they still need to be delivered to the destination quickly.

• Thermal Insulation

The container of a refrigerated truck is similar to a container, but it is made of materials with better thermal insulation, which reduces heat exchange.

Freezer Body Structure:

Adopting polyester wet panel making technology and glass fiber reinforced whole wooden box frame structure, using the most advanced fifth-generation fully enclosed polyurethane panel bonding method in the world.

Box Material:

• The internal and external wall panels are made of domestic high-quality machine-made 2.2mm FRP;
• Thick imported polyurethane is selected as the intermediate insulation material. The thickness of the box body is 80mm, the thickness of the door is 80mm; the upper and lower glass plates of the bottom plate.
• Freezer body is surrounded by 2.5mm aluminum alloy edging, stainless steel corners, stainless steel door locks, 4 pieces of anti-collision rubber, stainless steel door frames, stainless steel hinges, and energy-saving lighting in the box.
• The thickness of the box can be 100mm or 120mm. The material can be optional glass fiber reinforced plastic, color steel plate, stainless steel, aluminum alloy

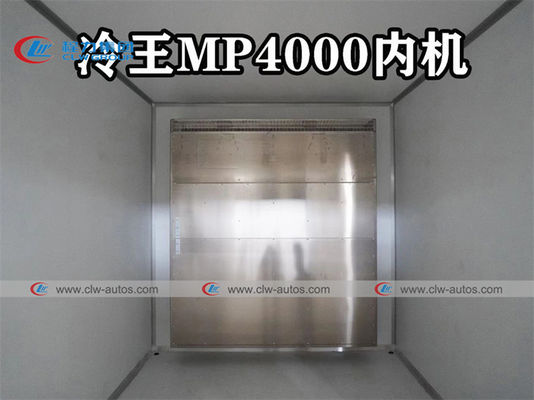

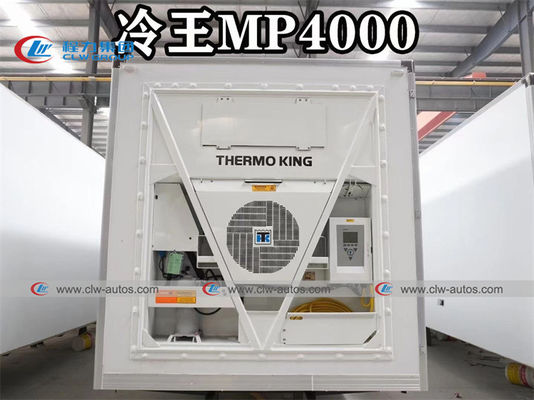

Refrigeration Equipment:

1. Chinese refrigerator Brand: Bing Li, Hanxue, K brand and other domestic well-known brands 0～-5°C/-10°～-15°C;
2. International Refrigeration Brand: American Carrier, Thermo King, Hanya, etc. 0～-5°C/-10°～-18°C.

Optional Requirements:

• Meat hook car: top rail slide, stainless steel meat hook;
• Ventilation system: ventilation slots on the floor, ventilation partitions around the compartment;
• Temperature and humidity recorder: onboard printing, high and low temperature alarm, GPS positioning;
• Install side door: single side door, double side door,
• Emergency power supply and hydraulic tail plate can be added to facilitate unloading
