Dongfeng High Pressure Road Washing & Sweeper Truck/Vacuum Road Sweeper Truck/Street Cleaning Truck
Product Advantages
1. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
2. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
3. With efficient filtration system.
4. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
5. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
6. Certification: ASM, ISO, BV, SGS, CCC etc.
Features:
1. We can supply all brands of special trucks, such as Dongfeng, ISUZU, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.
4. Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
5. The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
6. With efficient filtration system.
7. Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
8. Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
Specification for Road Sweeper ttruck:
| Description |
Specification |
| Automotive chassis |
Model,categoryand manufacturer of chassis |
DFL1160BX4 |
| Model and manufacturer of engine |
CUMMINS 190HP |
| Rated power of engine |
141kW/2600r/min |
| Tire |
Front wheel |
9.00R20 steel wire tire |
| Rear wheel |
9.00R20 steel wire tire |
| Fuel type |
Diesel meeting the discharge requirements in the fifth stage,
select an appropriate diesel grade according to the temperature
|
| Auxiliary engine |
Standard configuration |
Model and manufacturer |
EQ6BT5.9 or
QSB5.9-C160-30(Standard ChinaⅢ)
|
| Power |
118kw/2500r/min;120kw/2200r/min |
| Clutch |
Single plate, dry type and diaphragm spring |
| Fan |
Type |
Special high-pressure centrifugal fan |
| Mode of transmission |
Narrow V belt drive |
| Hydraulic system |
Type |
Open type, EHC and centralized control |
| Main elements |
Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc. |
| Overflow pressure |
14MPa |
| Hydraulic oil capacity |
60L |
| Electrical system |
Control mode |
PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc. |
| Chassis system voltage |
24V |
| Working device system voltage |
12V |
| Model of storage battery |
Chassis: 12V-70A.H (2 pieces connected in parallel) |
| High-pressure cleaning system |
High-pressure water pump |
Type |
Plunger type |
| Model |
Italian Pratissoli KEB36R |
| Rated pressure |
10MPa |
| System working pressure |
9MPa |
| Rated flow |
80L/min |
| Rated speed |
1150r/min |
| Water valve and control |
Type of water valve |
High-pressure stainless steel ball valve, 10MPa |
| Control mode |
Oil cylinder drive, electrical control |
| Type of nozzle of water spray rod |
High-pressure washing type |
| Dust falling system of sweeping plate |
Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system |
Sweeping system |
Type |
Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted. |
| Diameter of sweeper |
Φ850mm |
| Speed of sweeping plate |
High gear (normal operation gear): 110r/min; intermediate gear: 80r/min; low gear: 60r/min |
| Adjustment to dip angle of sweeping plate |
Front inclination: 4°-6°; outward inclination: 2°-4° |
| Suction nozzle |
Type |
Double suction ports, built-in long spray lance with a high-pressure nozzle, the body of suction nozzle moves with the pavement. Lifting of the suction nozzle is controlled by the oil cylinder. A spring is used for floating suspension. |
| Diameter of sucker |
Φ180mm |
| Ground clearance of suction nozzle during working |
5~10mm |
| Left & right spray lance |
Pendulum angle of spray lance |
65° |
| Nozzle ground clearance |
340mm |
| Total number of nozzles |
8pcs |

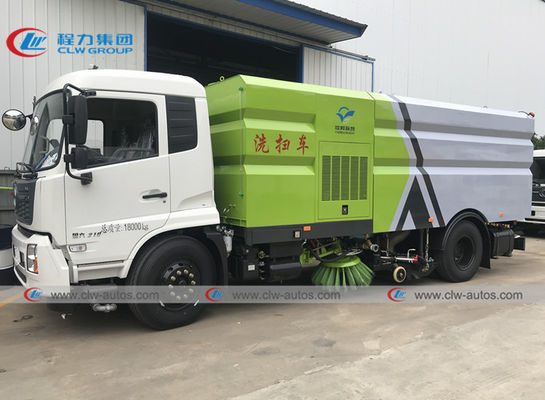

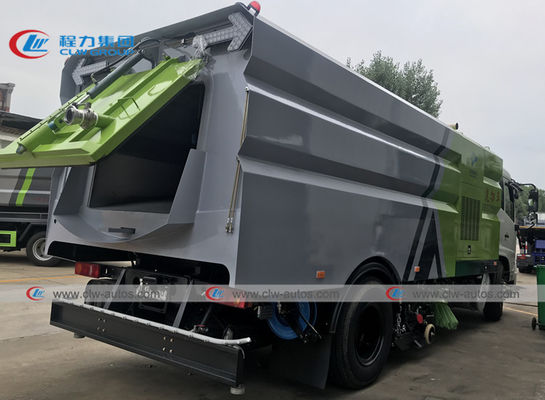

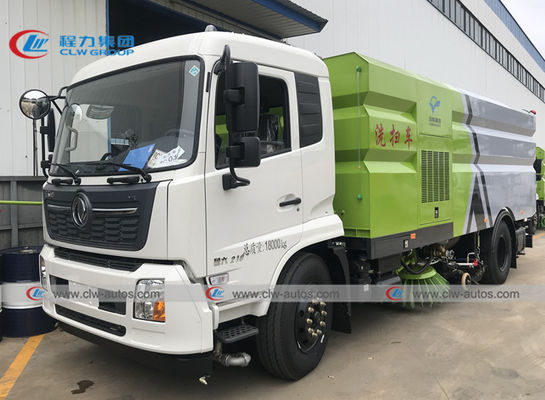

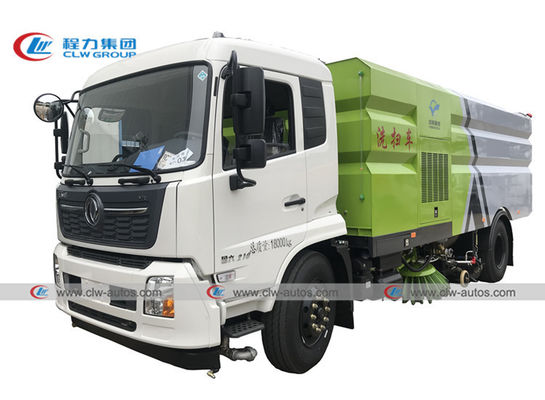

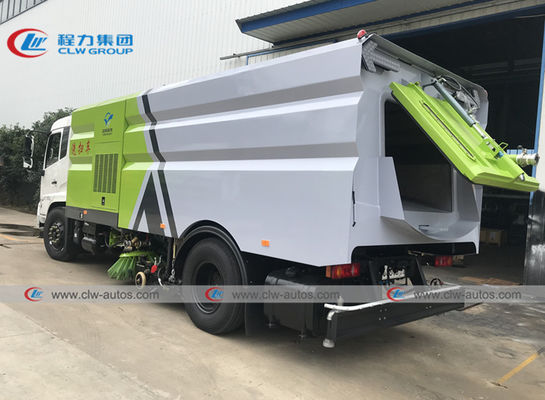

More pictures for Vacuum Dust Suction Truck Street cleaning Truck:
