Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport

Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Chiny HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Certyfikaty
Im Online Czat teraz

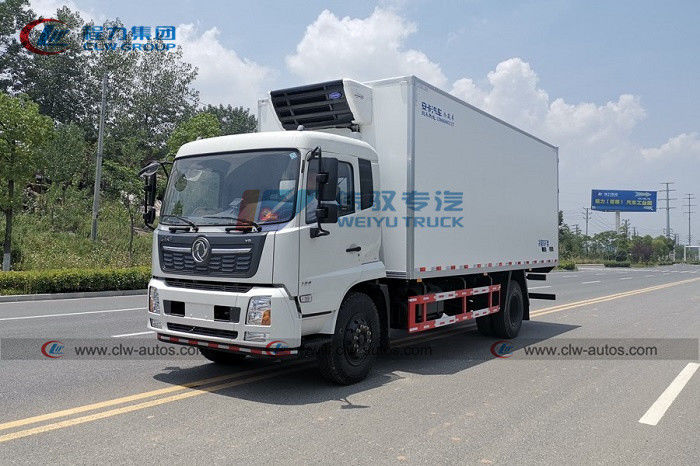

Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport

Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport
Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport

Duży Obraz :  Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport

Szczegóły Produktu:

Miejsce pochodzenia: Suizhou, Chiny
Nazwa handlowa: CLW
Orzecznictwo: ISO, CCC, SGS, BV, ASME
Numer modelu: CLW5056A

Zapłata:

Minimalne zamówienie: 1 jednostka
Cena: negotiable
Szczegóły pakowania: Nagi, woskowany, statek masowy, Ro-Ro
Czas dostawy: 30-35 dni
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply: 500 jednostek/miesiąc
Szczegółowy opis produktu
Marka podwozia: Dongfeng, Howo, Foton, Isuzu, JMC itp. Materiał furgonetki: Kolorowa tablica wewnątrz, FRP na zewnątrz furgonetki, środek z pianki poliuretanowej
Grubość zewnętrzna Van: 1,2 mm 1,5 mm 1,8 mm 2,0 mm Grubość warstwy pośredniej Van: 80 mm 100 mm 120 mm
Grubość wewnętrzna Van: 1,2 mm 1,5 mm 1,8 mm 2,0 mm Ładowanie wagi: 3-5 ton
Model lodówki: Thermo King, Carrier, Hanxue, Huatai, Bingli Marka podwozia: Isuzu, Dongfeng, Foton, Howo itp.
Model napędu: 4x2/6x4/8x4; Zgodnie z rozmiarem super struktury Rozstaw osi: 3300 mm 3800 mm 4500 mm 4700 mm 5600 mm; 4300+1350mm; 1350mm+4300+1350mm
Logo i malowanie: Na życzenie klienta. Czas dostawy: 30-35 dni roboczych
Gwarancja: 1 rok
Podkreślić:

7.8m Freezer Box Truck

,

6.5m Freezer Box Truck

,

Dongfeng Food Transport Truck

Dongfeng 6.5m/7.8m Refrigerated Food Transport Freezer Vehicle Refrigerator Van Box Truck









Product Description

1. Insulation materials are imported grade insulation board.
2. The refrigeration unit has well-known domestic and imported unit selection, and the temperature can meet the requirements of deep cooling.
3. Sinotruk ,Dongfeng ,Shacman ,JAC,FOTON ,I-SUZU and any other chassis brand can be selected.
4. The entire vehicle is manufactured using the latest international technology and new technology, and it has good insulation property.





Product Specification

Item No. Parameters
Overall Dimension 8600/9995*2550/2530*3580/3900(mm)
Gross Vehicle Weight 16000kg
Curb Weight 6800kg
Wheel Base 5600mm
Gearbox 8 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Engine
Engine horsepower 180/210HP EURO 2or3
Displacement 5.9L (Diesel)
Max Driving Speed 98 km/h
Cabin 2or3 Passengers
Tire 9.00R20, 6pcs + 1 spare tire
Carriage Body
Size: 6400/7800*2300*2200/2400(mm)
Body Material Strong Fiberglass Inner and Outer Wall,
with 8cm Middle Polyfoam Insulation.
Refrigerator High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree.



Reference Photos

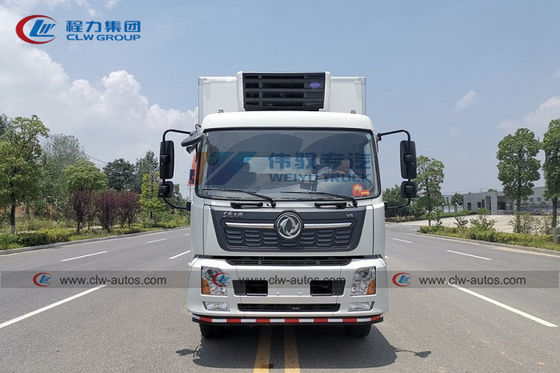

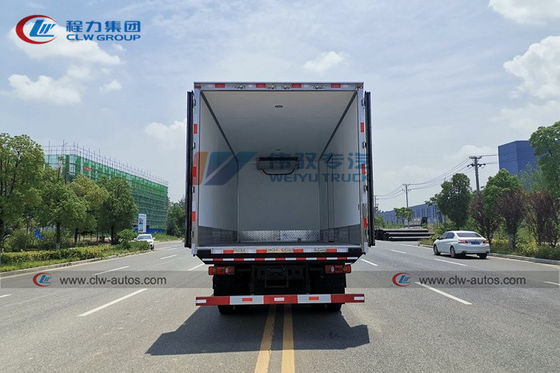

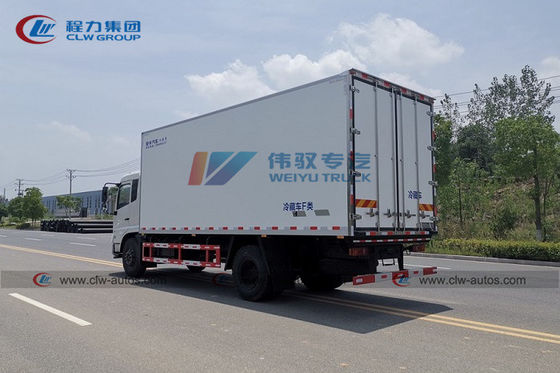

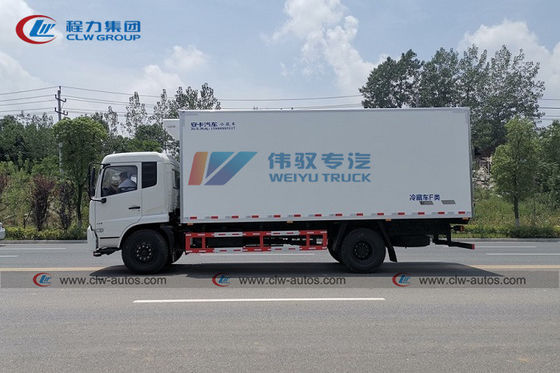

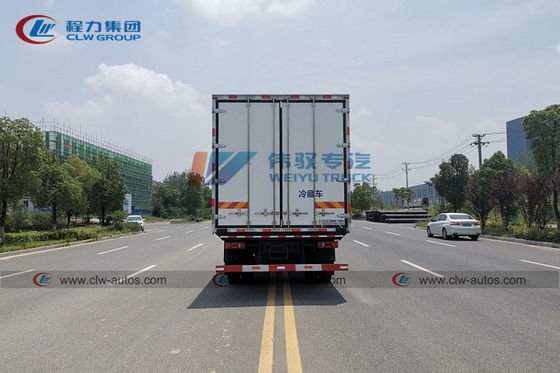

Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport 0

Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport 1

Dongfeng 6.5m 7.8m Freezer Box Truck For Food Transport 2



After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.



FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.



Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.



Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.



Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
