JMC 5T Small Refrigerator Truck For Fresh Fish Transport

Duży Obraz : JMC 5T Small Refrigerator Truck For Fresh Fish Transport

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC, SGS, BV, ASME
Numer modelu:	CLW5056A

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, Ro-Ro
Czas dostawy:	30-35 dni
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Dongfeng, Howo, Foton, Isuzu, JMC itp.	Moc silnika:	115 KM
Rozmiar pudełka do lodówki:	415017501750 (mm)	Materiał furgonetki:	Kolorowa tablica wewnątrz, FRP na zewnątrz furgonetki, środek z pianki poliuretanowej
Grubość zewnętrzna Van:	1,2 mm 1,5 mm 1,8 mm 2,0 mm	Grubość warstwy pośredniej Van:	80 mm 100 mm 120 mm
Grubość wewnętrzna Van:	1,2 mm 1,5 mm 1,8 mm 2,0 mm	Ładowanie wagi:	3-5 ton
Model lodówki:	Thermo King, Carrier, Hanxue, Huatai, Bingli	Marka podwozia:	Isuzu, Dongfeng, Foton, Howo itp.
Model napędu:	4x2/6x4/8x4; Zgodnie z rozmiarem super struktury	Rozstaw osi:	2600 mm 3360 mm 3800 mm 4500 mm 4700 mm 5600 mm; 4300+1350mm; 1350mm+4300+1350mm
Czas dostawy:	30-35 dni roboczych	Logo i malowanie:	Na życzenie klienta.
Gwarancja:	1 rok
Podkreślić:	JMC Small Refrigerator Truck , 5T Small Refrigerator Truck , JMC Freezer Delivery Truck

JMC 5 Tons Small Refrigerator Box Truck Light Freezer Refrigerated Truck

Product Description

1. Fresh fish transported truck is also called fresh live fishes truck, seafood transported truck, etc. With the functions of long transported time, large fish capacity, wide range of application, high survival rate, small exterior climate affects, etc. At present, this is the leading vehicles for long term distance.
2. the fish tank volume from 8cbm to 13cbm. Independent pump room Oxygen unit. the transportedcapacity of the fresh live fish transported truck usually 200kgs fish with 1cbm water. We can control the transported capacity according to the size of fish and time of transporting.
3. Features: International chassis brand and International refrigerating unit brand for optional.

Product Specification

Item No.	Parameters
Overall Dimension	599519502900(mm)
Gross Vehicle Weight	4495kg
Curb Weight	2800kg
Wheel Base	3360mm
Front/rear Tread	1120/2075mm
Approach/Departure Angle	21/20 degree
Gearbox	5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance
Engine
Engine horsepower	115HP EURO 2or3
Displacement	2.771L (Diesel)
Max Driving Speed	98 km/h
Cabin	2 Passengers
Tire	7.00R16, 6pcs + 1 spare tire
Carriage Body
Size:	415017501750(mm)
Body Material	Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation.
Refrigerator	High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree.

Reference Photos

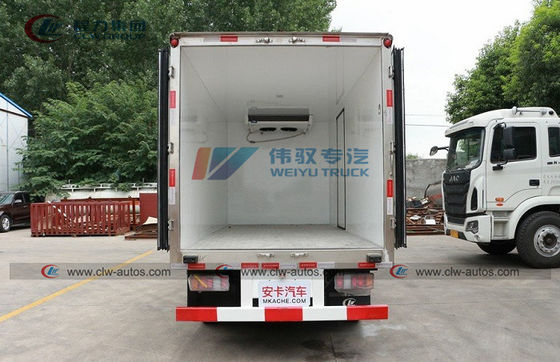

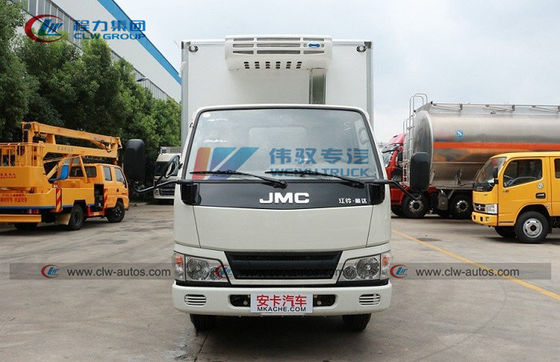

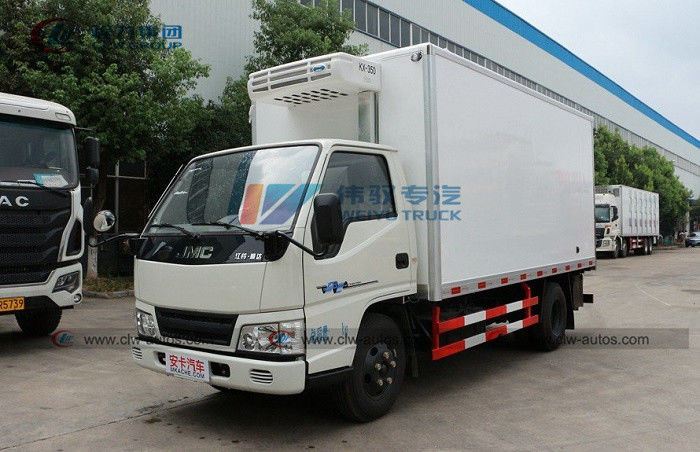

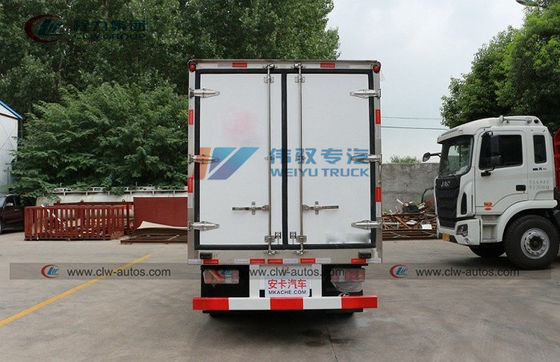

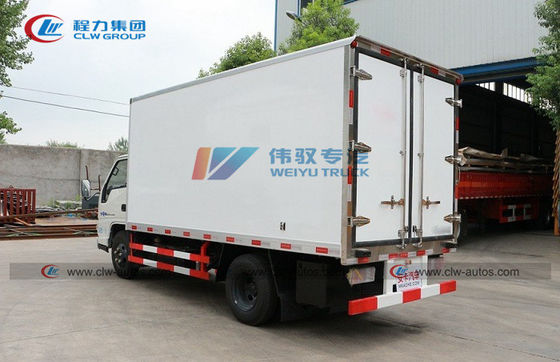

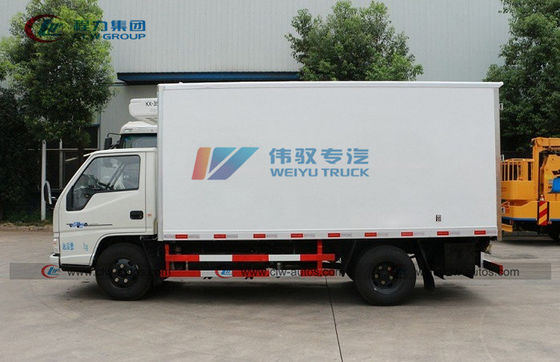

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 0

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 1

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 2

JMC 5T Small Refrigerator Truck For Fresh Fish Transport 3

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.Contact Lea for more details+86 155 2791 1810.

FAQ

Q1: What loading weight of refrigerator van truck I can order from your company?

A: We can supply 990kg-40tons chick transport/refrigrator trucks, if you need big size refrigerated semi trailer, we also can supply it, there have 2 axles and 3 axles 40tons to 60tons refrigerated semil trailer for optional.

Q2: What is your production standard of refrigerator van truck and trailer? Whether your refrigerated truck and trailer can export to USA, Canada and Europen countries?

A: Our CBU refrigerated truck and trailerg truck is produced as per China GB local standard; We can export super structure to those market, we ever exported chick transport truck super structure and refrigerated semi trailer to Europen countries before.

Q3: Can we adopt International brand refrigerating unit for chick transport truck and semi trailer?

A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
