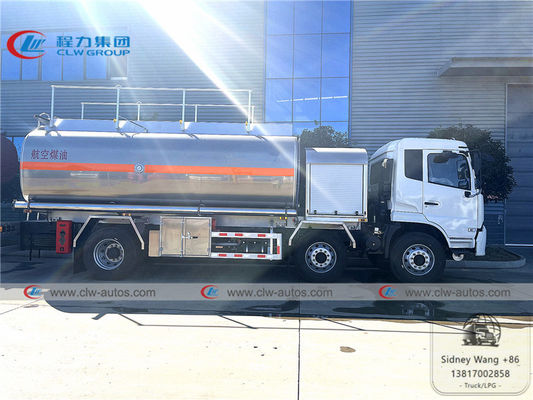

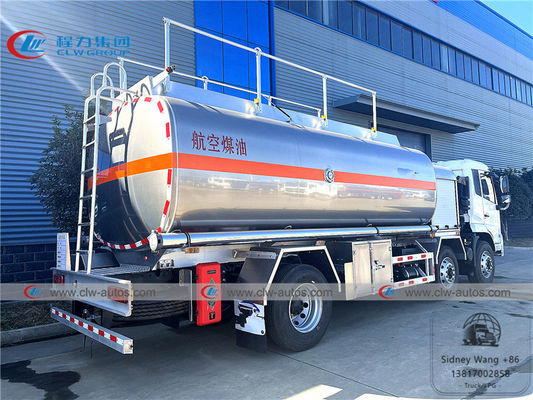

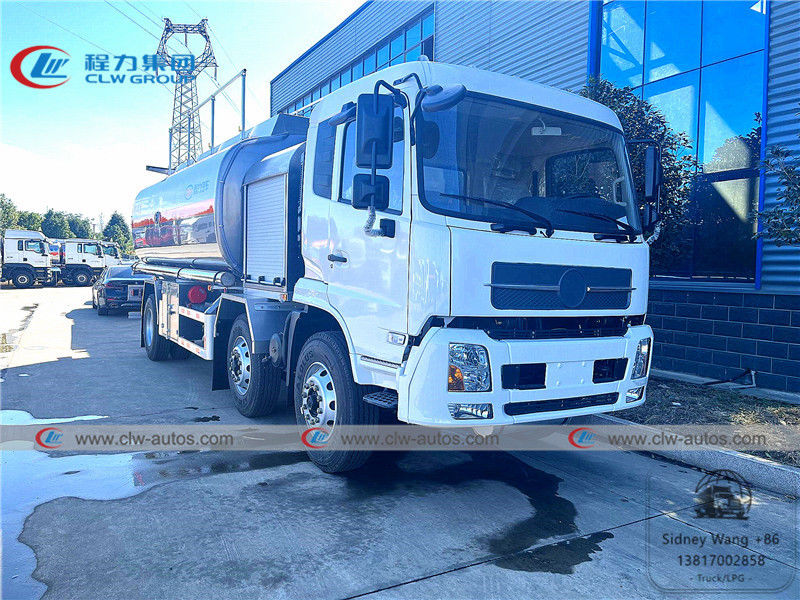

Dongfeng Kingrun tianjin 16,000liters 6x2 JET fuel aviation kerosene transportation fuel tanker truck
Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators (Baffle) to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specification
| Chassis |
| Chassis brand: |
Dongfeng, DFS1251 |
| Drive type: |
Manual, left hand drive,optional right hand drive |
| Drive wheel: |
6*2 |
| Tyre: |
10.00R20, 10+1pieces |
| Control system: |
Electrical hydraulic system |
| Transmission: |
8 speed forward with 1 reverse |
| Chassis dimension: |
7550*2462*2950mm |
| Braking system: |
Air braking |
| Clutch: |
Uniwafer, dry clutch, hydraulic remote control |
| Wheel base: |
1350+3800mm |
| Axis number: |
3 pieces |
| Cab Passengers: |
3 passengers |
| Engine |
| Engine: |
Cummins,B210-33 |
| Horse power: |
210HP |
| Exhaust: |
5900CC |
| electric system: |
24V |
| Emission standard: |
Euro 3 |
| Max speed: |
80km/h |
| Fuel: |
Diesel, optional gasoline |
| Main parameters technical specifications |
| Overall size: |
8500*2490*3350mm |
| Overall G.W.: |
18000kg |
| Curb weight: |
7795kg |
| Tank volume: |
16000liters |
| Tank shape: |
Oval |
| Tank material: |
Aluminum alloy |
| Tank color: |
Any color customer like |
| Tank thickness: |
5mm |
| Srpings: |
9/13 |
| Approach/departure angle: |
30/15. |
| Overhang F/R: |
1245/2905mm |
| Axis load: |
7000/10000kg |
| Warrenty: |
1 year |
| Certification: |
CCC, ISO... |
| Tank Parameter |
| Transfer of Media: |
JET FUEL, aviation kerosene |
| Functions: |
The tank can be separated several compartments to load |
| |
different oil or chemical varieties |
| Fuel dispenser: |
Optional single counting, double counting, and tax control |
| |
fuel dipenser |
| Oil Pump |
According to the purpose of tankers, you can choose |
| |
centrifugal pumps, gear pump, copper gear pumps. |

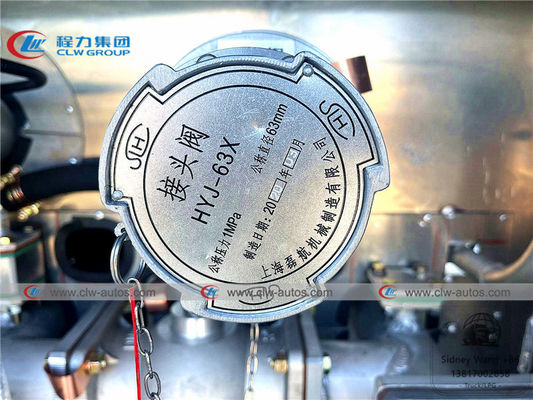

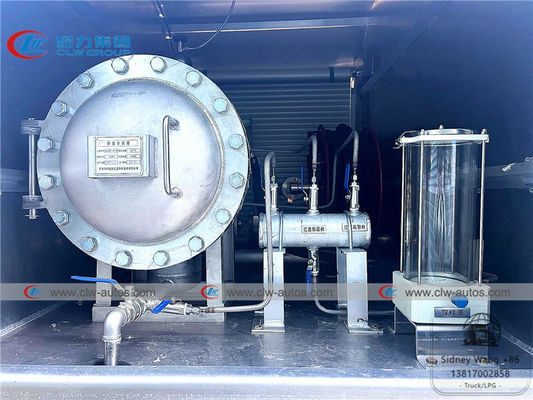

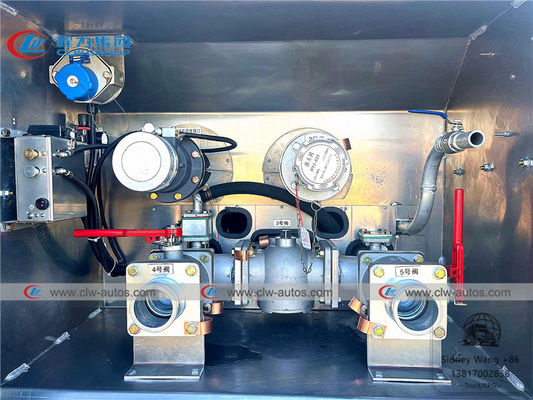

Reference Photos
Aluminum Alloy Tank Production Process
Other Kinds of Fuel Dispenser Trucks
Factory overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
