China FAW J6P High End 12 Ton Asphalt Distributor Truck 10m3 10000L for sale
Asphalt distributor truck is equipped with a heat preservation tanker, asphalt pump, heater and spraying system, used for spraying asphalt;It can also be defined as a kind of spraying hot asphalt, emulsified asphalt, residue and other liquid asphalt pavement construction machinery; It can be widely used in highway, city road, airport, port wharf and reservoir pavement construction;Large capacity asphalt distributor can also be used as asphalt delivery vehicles, mainly used for asphalt penetration method surface treatment, penetration layer, sticky layer, mixing in situ, asphalt stabilized soil and other construction and maintenance projects.
1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt
2) System of 10tons bitumen distributor truck
- manual/automatic control of spraying volume and working width,control of single spraying nozzle
- control in cabin or rear working platform
- automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
- Heating system(10~15℃/h) to improve heating efficiency
3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
4) Italy burner for automatic fire and temperature control
Specifications of 10Tons Bitumen Distributor Truck
| Item No. |
Parameters |
| Chassis |
| Overall Dimension |
8850x2500x3450mm |
| Gross Vehicle Weight |
16000 kg |
| Curb Weight |
10000 kg |
| Loading Weight |
12000Kg |
| Wheel Base |
4600 mm |
| Front/rear Tread |
1500/2277 mm |
| Approach/Departure Angle |
23/15 degree |
| Front Axle |
7000kg |
| Rear Axle |
13000kg |
| Engine |
WD615.62,Weichai Diesel Engine,
watering cooling, four stroke, 6 cylinder in line
|
| Engine horsepower |
266HP EURO II |
| Displacement |
9.726L (Diesel) |
| Max Driving Speed |
90 km/h |
| Cabin |
HW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner |
| Tire |
12R22.5 (10 pieces+1piece spare tire) |
| Asphalt Tank |
10cbm |
| Outside Material |
1.2mm Stainless plate |
| Insulation layer |
40mm rock wool insulation layer,≤20℃/8h |
| Asphalt pump |
QGB950,950L/min |
| Hydraulic System |
| Hydraulic pump |
CBQ550-L |
| Driving Motor |
05-130-BD31(NING BO TILORMS) |
| Proportional Valve |
EFBG-03-160-HF/Taiwan brand |
| Shuttle Valve |
Shanxi Yuci brand |
| Overflow Valve |
Shanxi Yuci brand |
| Control System |
| Control System |
CLW-32-01/Germany STW |
| Control Method |
Computer control |
| Smart asphalt nozzle |
36 pcs intelligent nozzles |
| Temperature sensor |
2 pcs from Zhejiang China |
| Speed sensor |
2 pcs from Germany |
| Heating System |
| Heating method |
Automatic heating by oil |
| Burner |
G20/Italy brand |
| Radiator |
RISEN brand |
| Heat transfer oil pump |
40-25-160(Hebei province,China) |
| Gasoline Engine |
LUTIAN brand,6kw |
| Spreading Width |
6m |
| Spreading Speed |
0.3~3.5L/min |
| Spreading Precision |
±2% |

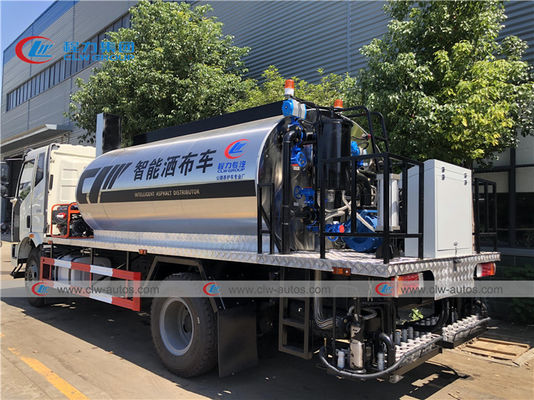

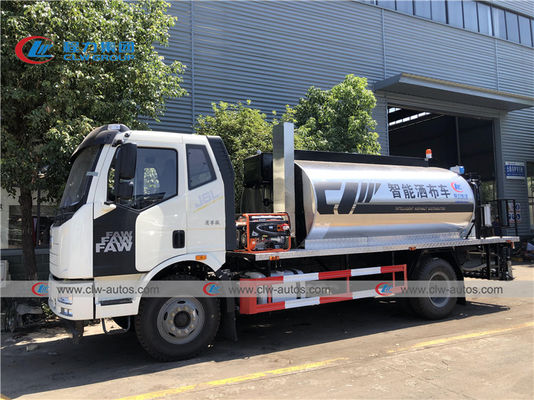

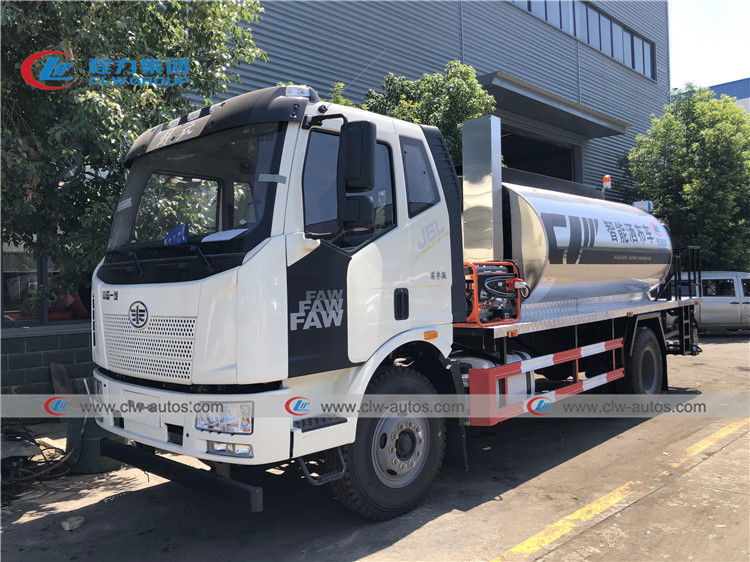

Reference Pictures of 10Tons asphalt Distributor Truck

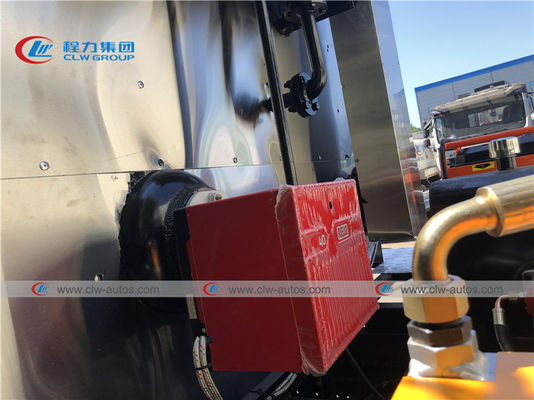

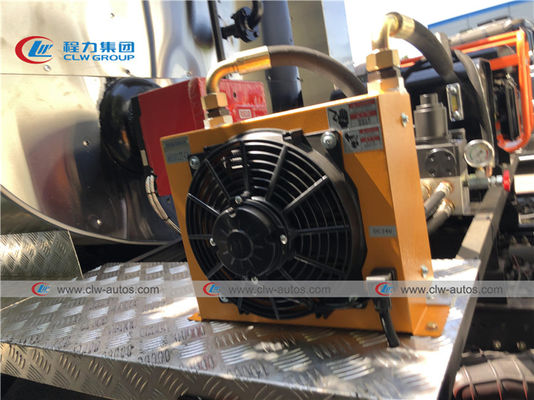

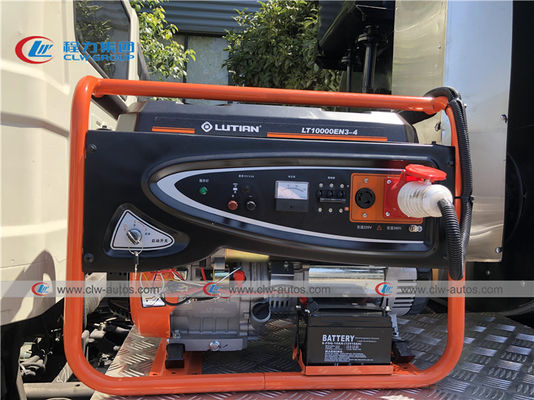

Key parts of 10Tons Bitumen Distributor Truck
Our Service
-
Quick feedback to solve your questions
-
Professional engineering and production team
-
Related Accessories and spare parts offered,no future worries
-
Regular customer after-sale visiting
-
Free technical staff training and guidance
-
Reasonable price and good quality
-
Quick delivery and shipment
FAQ
Q1: What kinds of 10Tons Bitumen Distributor Truck I can order from your company?
A: We can supply various sizes of 10Tons Bitumen Distributor Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of 10Tons Bitumen Distributor Truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?
A: Our 10Tons Bitumen Distributor Truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
