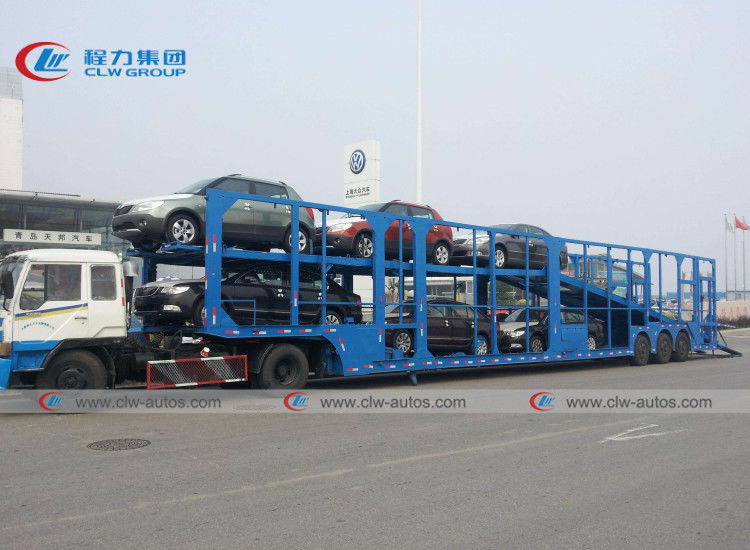

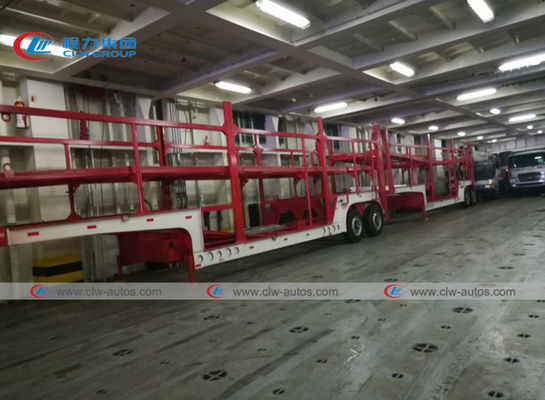

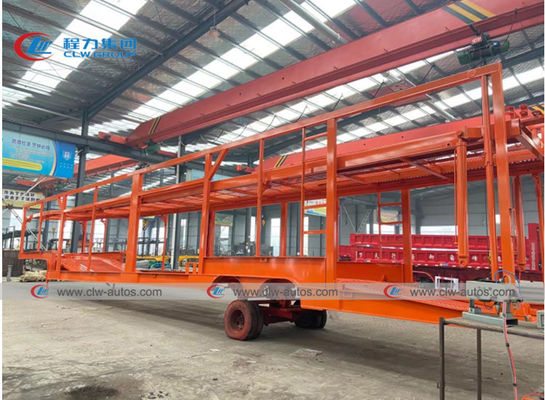

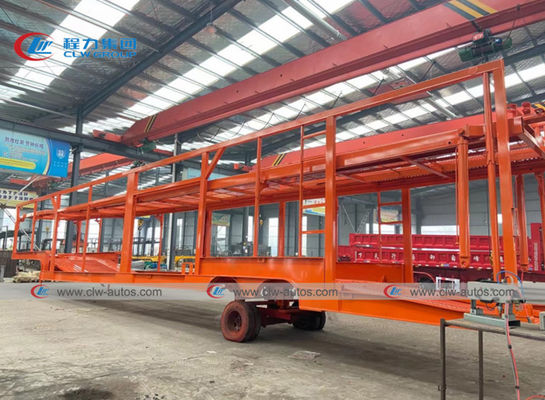

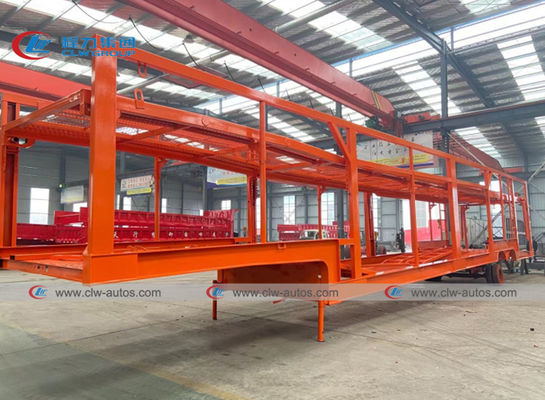

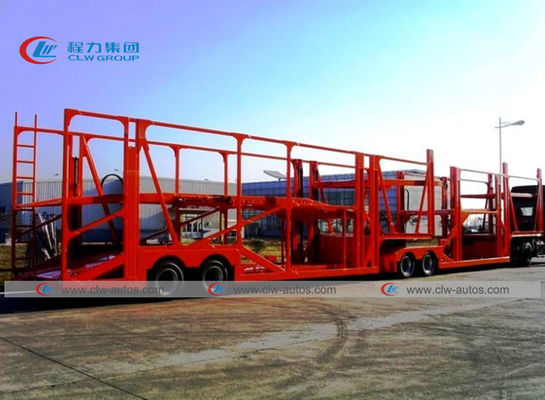

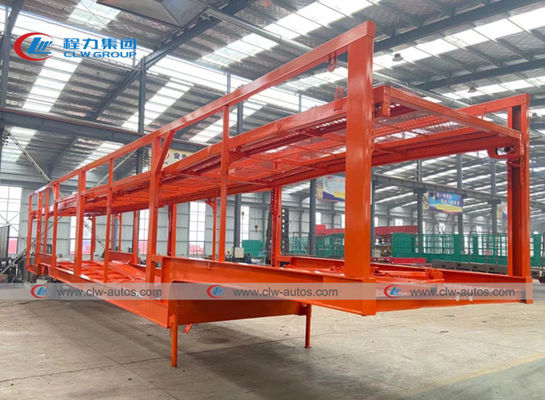

2 / 3 Axle Semi Truck Trailers For SUV Transport

Duży Obraz : 2 / 3 Axle Semi Truck Trailers For SUV Transport

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW20220110

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiated
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Wymiar:	1300030003850mm	Oś:	FUWA, BPW, L1, marka
Obciążenie osi:	13 ton lub 16 ton. 20 ton	Numery alxe:	2 osie, 3 osie, trzy osie
zawieszenie:	zawieszenie mechaniczne.	Długość:	13 metrów lub dostosowane
Podwozie:	Marka Josta	Pojemność ładowania:	40 ton, 50 ton, 60 ton, 80 ton.
Funkcjonować:	Samochody, SUV, transport, przewoźnik	Nazwa produktu:	Przyczepa do transportu samochodów SUV, naczepa do przewozu samochodów
Obciążenie:	50 60 80 100 ton
Podkreślić:	3 Axle Semi Truck Trailers , 2 Axle Semi Truck Trailers , SUV Transport 3 Axle Semi Trailer

SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers

Description:

1. Our trailer adopts hydraulic lifting system, which saves time and labor and has high working efficiency

2. A pair of ladders are provided at the rear end for loading and unloading of commercial vehicles (the ladder is light and durable, and made of high-strength square tube)

3. The trailer is designed to be loaded in two layers, and the height of the two layers can be adjusted (the space for loading commercial vehicles is more reasonable)

4. Rear tail part - if the vehicle is not loaded with enough data, the rear tail can be pulled and lengthened by about 1 meter

- Main beam material: Q345b
Good mechanical properties, high mild, good ductility and weldability, is mainly used as the low-pressure containers, tanks, vehicles, cranes, mining machinery, power plants, bridges, etc. under dynamic load configuration

- Assembly
The entire frame is positioned in a dedicated carriage assembly, welded, reasonable structure, high strength, beautiful appearance

Parameters for SUV Cars transport 2 or 3 Axles 6 Cars transport 8 units Car Carrier Semi truck trailers:

Main size	Overall length	15000mm
	Overall width	2700mm
	Overall height	3100mm
	Loading capacity	Loading 8 units of cars. Capacity of 25Tons.
Chassis	Main beam	Material of high strength steel T700. Height 400mm. Welded by automatic submerged-processes.
Chassis	Main cross beam	Material is high strength steel T700. Welded by automatic submerged-arc processes
Posts	Main posts	Material of high tensile steel T700. 5 pairs of each trailer
Posts	Side bars	Material is high strength steel T700. Multi numbers installed.
Floor	Material	Manganese steel plate floor thickness of 3mm. Multi holes designed. Yellow and red painted track.
Landing gear	20T model landing gear, brand Yahua, with static capacity of 50T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. JOST brand.
Axle	2 sets of 13T model axles. Axle beam 1840mm. Axle loading 13000kgs.
Tire	Tire sized 10R22.5, Double Star or Triangle brand. 4 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 8.0-20, Zhengxing brand. 4 pcs of wheel rim per trailer.
Hydraulic Cylinders	5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars. Youggu brand.
	First unit	At the front post, out&back, extend 600mm.
	Second unit	At the end post of gooseneck, out&back, extend 600mm.
	Third unit	Under the aircraft style plate, to lift single car, out&back, extend 900mm.
	Forth unit	At the post in front of tire, out&back, extend 900mm.
	Fifth unit	At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.
Suspension	Mechanical steel suspension system, double axles type. 4 sets of leaf springs installed.
Brake sysem	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box. One bag of belts for firming the cars.
