Sinotruk HOWO 4tons Propane Bobtail Truck LPG Dispenser Truck

Duży Obraz : Sinotruk HOWO 4tons Propane Bobtail Truck LPG Dispenser Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,BV,SGS
Numer modelu:	CLW5067GYQ

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	30 dni po otrzymaniu depozytu
Zasady płatności:	D/A, L/C, D/P, T/T, Western Union, Moneygram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Marka ciężarówek:	Sinotruk HOWO, Dongfeng, Foton, Shacman, Faw, JAC, JMC itp.	SILNIK:	Yuchai, Chaochai, Cummins, ISUZU
Pojemność czołgów:	4 tony, 8000 litrów, 4 tony metryczne	Objętość zbiornika:	8000 litrów, 8 cbm, 8 m3
Miernik przepływu:	Przepływomierz wyporowy (drukarka opcjonalna)	Pompa:	Pompa hydrauliczna z napędem WOM
Napełnianie głowy:	Marka REGO, marka amerykańska	Zawór spustowy:	Typ kołnierza 1", 2", 3".
Wąż do napełniania:	15 metrów	Gwarancja:	rok na główne części
Malarstwo:	Zgodnie z żądaniem klienta
Podkreślić:	Propane Bobtail Truck , Sinotruk HOWO LPG Dispenser Truck , 4tons LPG Dispenser Truck

Sinotruk HOWO 4tons Propane Bobtail Truck LPG Dispenser Truck

Product Description

1. LPG bobtail truck design purpose: mobile filling truck to serve in territories outside the urban cities which can help people access LPG more.
2. Truck Brand for choose : Howo, Dongfeng, Faw, Isuzu, Foton, JAC, JMC,Shacman etc.
3.Tank capacity: 3tons, 4tons, 5tons, 6tons, 7tons, 8ton, 10tons, 15tons, 20tons
4. Refiling System: Flowmeter or LPG dispenser,2" Corken or Chinese brand LPG Pump,15meters Filling Hose Reel

Specification

1. Specification of 4tons LPG TANK
Item	Unit	Parameter
Thickness of Shell	mm	10.0
Thickness of Endplate	mm	10.0
Corrosion Allowance	mm	1.0
Fact cubic meters	cbm	8cbm (8,000L)
Loading capacity	kg	Approx.4750 kg
Working temperature	ºC	-40/+55 ^oC
Tank material	mm	Carbon Steel Q345R(Pressure Vessel Steel)
Manhole	mm	DN450(18 inch)
Safety Valve	mm	DN50(2 inch)
Liquid Line	mm	DN50(2 inch)
Gas Line	mm	DN50(2 inch)
2. Specification of Truck Chassis
Condition	New condition/Left hand drive/4x2
Main details	Brand and Model		HOWO
	Wheelbase(mm)		3800
	Front/Rear overhang(mm)		1205/2310
	Approach/Departure angle(°)		18/12
	Max. driving speed(km/h)		90
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6pcs with one spare tire
		Specifications	7.50R16
Transmission	Manual type, 6 Forwards and 1 reverse
Cabin	It can accommodate three people, With Air conditioner
Engine	Brand and Model		Optional
	Fuel type		Diesel
	Emission standard		Optional

Detail photos

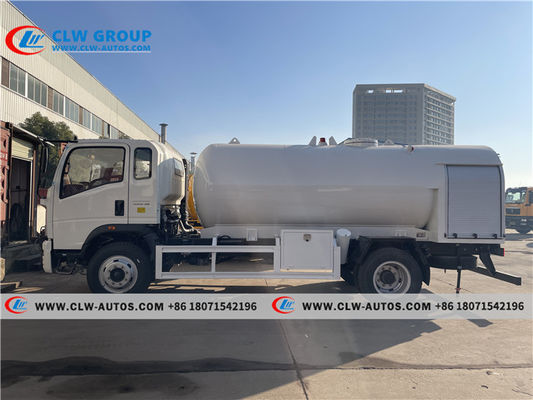

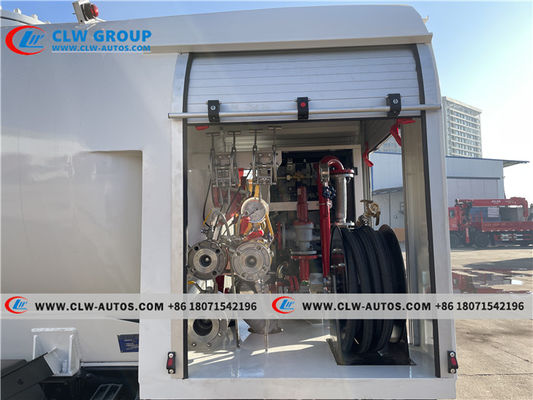

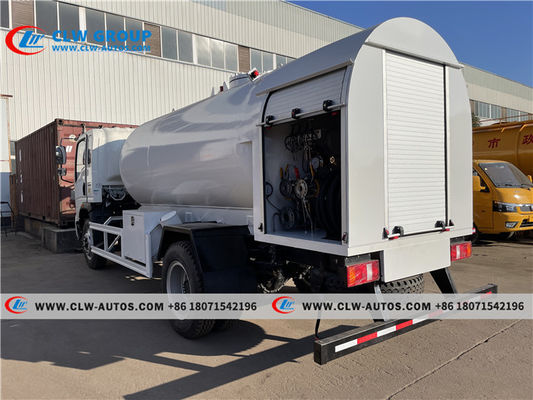

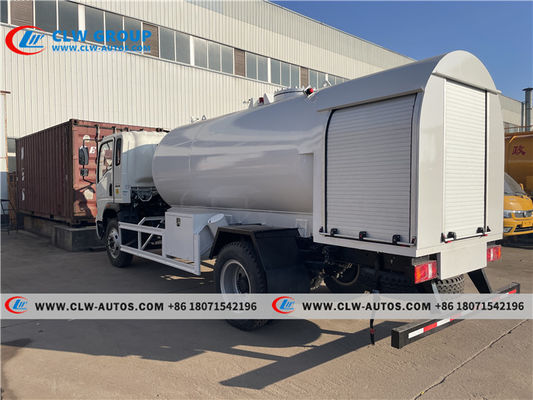

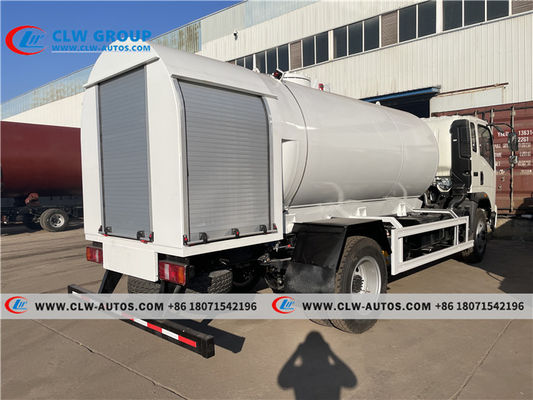

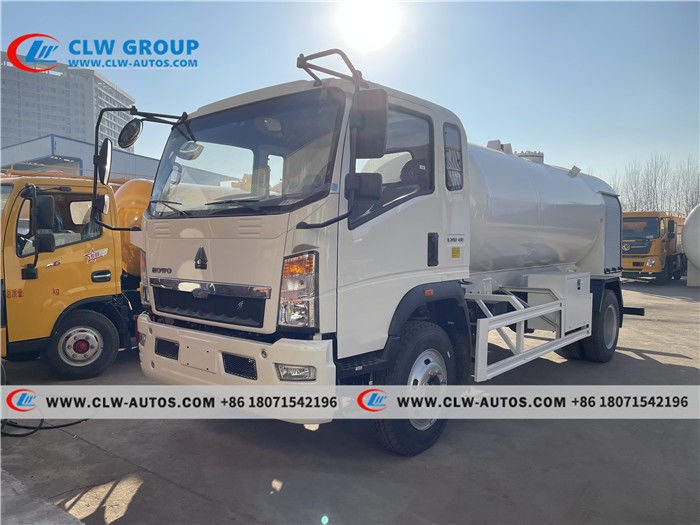

Sinotruk HOWO 4tons Propane Bobtail Truck LPG Dispenser Truck 0

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of LPG products I can order from your company?

A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?

A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?

A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.

Q4: What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
