336HP HOWO 6X4 Gas Cylinder Tanker Filling Trucks LPG Bobtail Truck 24cbm 12tons

Duży Obraz : 336HP HOWO 6X4 Gas Cylinder Tanker Filling Trucks LPG Bobtail Truck 24cbm 12tons

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ASME,CCC,BV,SGS
Numer modelu:	CLW5120WY

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagi, woskowany, statek masowy, ro-ro
Czas dostawy:	30-35 dni roboczych
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Marka podwozia:	Sinotruk HOWO, Dongfeng, FAW, Foton, Isuzu itp.	Moc silnika:	336KM
Kształt zbiornika:	Poziomy kształt cylindra	Pojemność czołgów:	24 CBM
Pojemność zbiornika:	12 ton	Materiał cysterny:	Q345r, Q370r, Q420r, SA516
Grubość zbiornika:	12 mm	Presja projektowa:	1,61 MPa, 16,1 Bara/PSI
Standard produkcyjny:	Pompa hydrauliczna z napędem WOM	Mierzyciel poziomu:	REGO Rochester lub inne
Miernik przepływu:	Przepływomierz wyporowy	Dodatek korozji:	1,0 mm
Logo i wzór:	Jako żądanie klienta	Gwarancja:	1 rok
Podkreślić:	336HP Gas Cylinder Tanker Filling Trucks , HOWO 6X4 LPG Bobtail Truck

24cbm 12tons 336HP HOWO 6X4 Gas Cylinder tanker Filling Trucks LPG Bobtail Truck

Product Description

1. Storage medium of LPG bobtail truck :

LPG
Liquid ammoina
Dimethyl ether
Iso-butane
Pentane

2. Truck Brand :

Howo
Dongfeng
Faw
isuzu
Foton
JAC
JMC

3. Available tank capacity:
5m³, 5.5m³, 8m³, 10m³, 12m³, 15m³, 16m³, 18m³, 20m³, 24m³, 25m³.

4. Function of LPG Gas Bobtail :
mobile Gas Delivery/ Refilling/bottling/filling

5. Manufacturing standards :

GB-150
ASME VIII Division I U STAMP
CCC
ISO9001 : 2008

6. Refiling System of LPG Gas Bobtail:

2" Hyrdaulic Truck Pump
2" Flow Meter
15meters Hose Reel for commercial Fillings.

Technical data

Temperature range: -15℃~50℃
Design pressure: 1.61Mpa
Flow rate: depending on the type of pump installed
Tension: 380V/50Hz, 220V/50Hz

Product Specification

Item No.	Parameters
Overall Dimension	10590* 2495* 3350mm
Gross Vehicle Weight	24420kg
Curb Weight	14210kg
Wheel Base	4800+1350mm
Cabin	Left Hand Driving, 2 Passengers Allowed, with Air Conditioner
Engine	WD615.62 Diesel Engine, 6 Cylinder in line. Four Stroke.water-cooling,supercharged and mid-cooling,Direct injectio
Engine horsepower	336HP Euro II
Max Driving Speed	90 km/h
Gear Box	10 Forward Gear & 2 Reverse Gear
Tire	12R22.5 Tubeless Tire (10 pieces with one spare)
Tank Capacity	24 CBM / 24,000 Liters
Filling Weight	10000kg
Filling Content	Liquefied Petroleum Gas (Propane)
Tank Material	Q345R, 10mm Thickness for Tank Body & End plate.
Standard Equipment	1 Safety Valves,1 Ball floating Level Gauge, 1 Pressure Gauge, 1 Thermometer, 2 Emergency Shut-off Valve, 1 Tool Boxes, Anti-static Grounding Tape, with 1 valve boxes,
Specification	Designed Pressure: 1.61Mpa / 16.1 Bar Hydraulic Test Pressure: 2.21 Mpa / 22.1 Bar Air Tightness Pressure: 1.61Mpa / 16.1Bar Medium Density: 500-590 kg/m3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm
Filling System	Hydraulic Drive 2" Truck Pump. Liquid Control Flow Meter to Record Filling Volume LPG Filling Hose for Cylinder

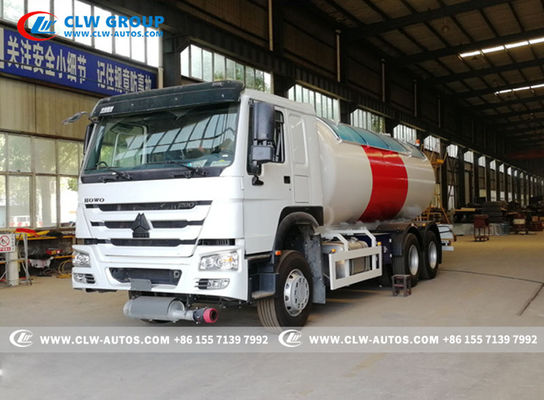

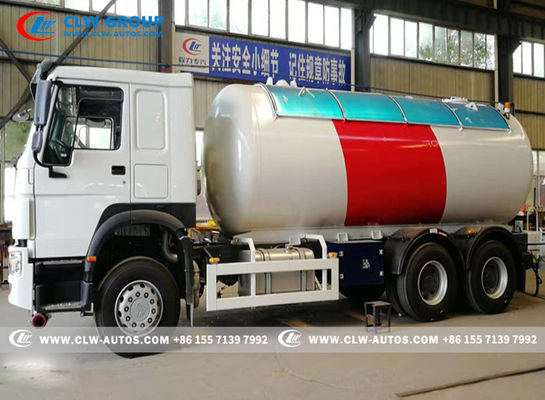

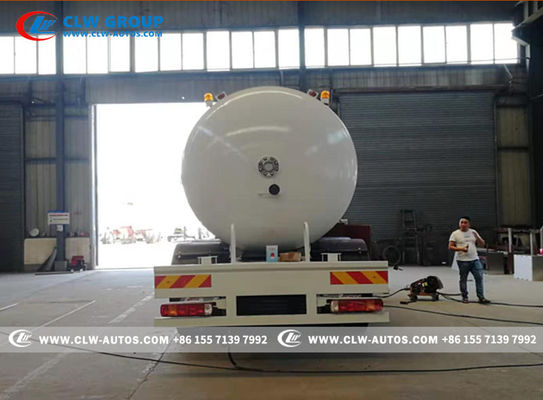

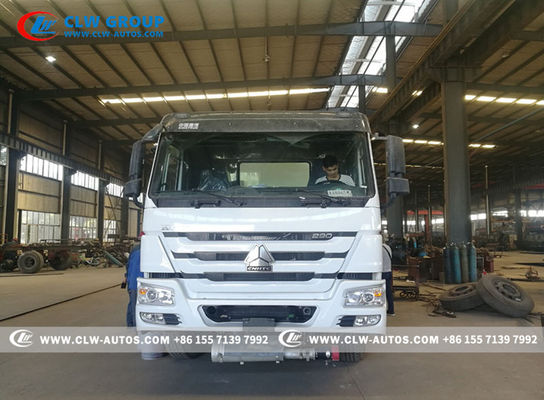

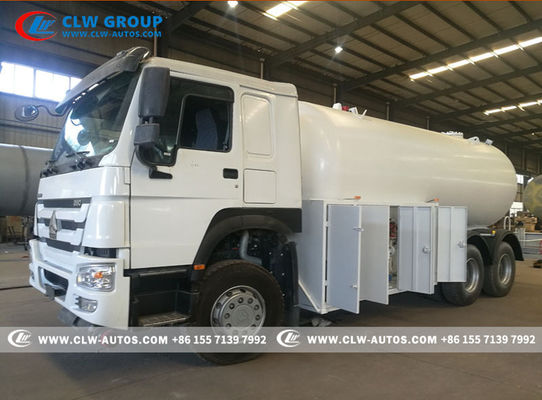

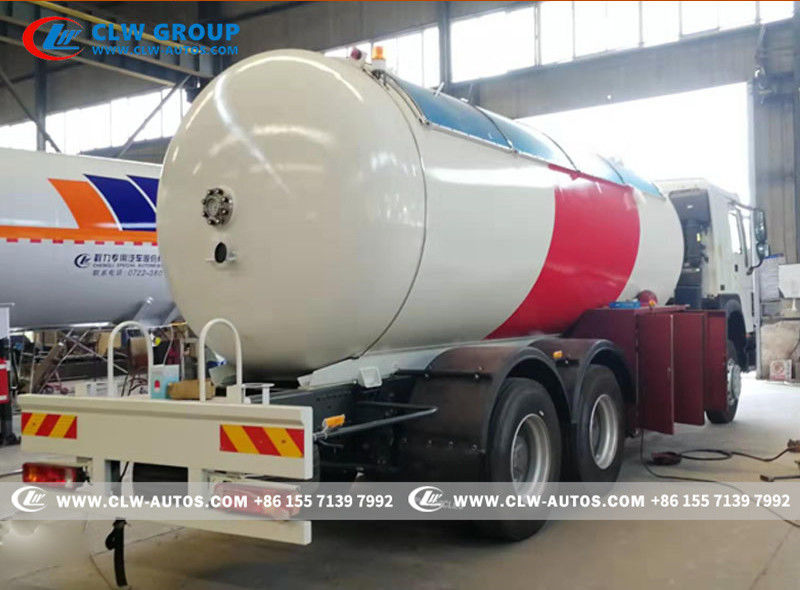

Reference Photos

Two Types of Dispenser for Optional

Related Products

336HP HOWO 6X4 Gas Cylinder Tanker Filling Trucks LPG Bobtail Truck 24cbm 12tons 6

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.

FAQ

Q1: What kinds of LPG bobtail truck I can order from your company?

A: We can supply different sizes LPG bobtail truck as client's request. Basically speaking, we can supply 5CBM to 38CBM type. Pls contact with us for more technical details and discussion.

Q2: What is your production standard of LPG bobtail truck?
A: Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011Transportable Pressure Vessel Safety Technology Supervisory Regulations and GB150.1~4-2011

Q3: Can we adopts International brand parts or accessories for LPG bobtail truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
