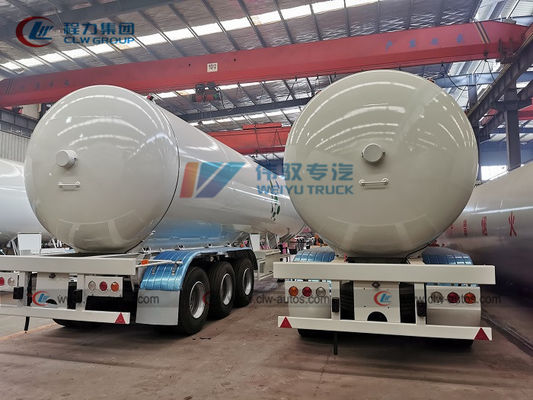

1.16Mpa Carbon Steel Q345R Double Ellipse LPG Semi Trailer For Transport

Duży Obraz : 1.16Mpa Carbon Steel Q345R Double Ellipse LPG Semi Trailer For Transport

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW /Weiyu Brand
Orzecznictwo:	CCC, ISO
Numer modelu:	CLW530Y6EU

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Możliwość Supply:	500 jednostek/miesiąc

Kontakt

Szczegółowy opis produktu

Zawartość:	Gaz płynny	Pojemność czołgów:	60 000 litrów
Ładowanie wagi:	25 ton do 30 ton	Oś:	3 osie
Marka osi:	FUAW lub BPW	zawieszenie:	Sprężyna liściowa
Opona:	12R22.5	Materiał zbiornika:	Q345R, Q370R
Presja projektowa:	16,1 MPa	Kolor:	Dostosowane
Podkreślić:	Double Ellipse LPG Semi Trailer , Carbon Steel Q345R LPG Semi Trailer

1.16Mpa Carbon Steel Q345R Double Ellipse LPG Semi-trailer For Transport

Product Description:

Design standard:GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
Tank material:Q345R,Q370R,Q420R
Tank capacity:From 40m3 to 60m3(Customized)
Optional accessories for LPG tanker trailer: BPW Axles, sun shelter, Rochester level gauge, pump and motor , JOST outrigger etc.
Design pressure:1.61Mpa

Specification

Tanker Essential Information
Volume of Tank (cbm)	60
Overall Dimensions(LWH)(mm)	1335025503995
Tank Dimensions(Inner DiameterthicknessLength)	25001213070
Estimated Tare Weight (kg)	16250
Payload(kg)	26000
Total Weight(kg)	42250
Wheelbase(mm)	7230+1310+1310
Shell of Tanker
Products	Liquefied Petroleum Gas (propane)
Fluid Property	Flammable
Design Temperature(ºC)	50ºC
Design Pressure(MPa)	1.61
Corrosion Allowance(mm)	1.00
Weld Joint Factor	1
Major Materials of Bearing Pressure	Tanker body:Q345,12mm,
	End plate:Q345R,14mm
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640 ºC
Flaw Detection	100% Flaw detection
Test Pressure(MPa)	1.61
Hydraulic Test(MPa)	2.1
Magnaflux Inspection	Aim at welding place that flaw detection can not cover
Manhole (As Customer's Requirement)
Quantity	1;on top
Size	DN450
Safety Valve(As Customer's Requirement)
Quantity	2
Location	On the top of tanker
Size	DN80
Level Gauge
Type	Manuel Switch type
Location	At the rear of the end dish
Running System
Axles	3*13T BPW
Tire	12R22.5 Tubeless tire ,8 with one spare tire
Landing leg	JOST
King Pin	#50 or #90
Control System
Emergency Cut-off Valves	2 or 3
Ball Valve	4 or 6
Liquid Gauge	1
Pressure Indicating Thermometer	1
Pressure Gage	1

Factory overview

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.

Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.

Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
