4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3

Duży Obraz : 4Axles 8x4 Howo LPG Bobtail Truck LPG Delivery Truck Large Capacity 35m3

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	GB150, ASME
Numer modelu:	CLW1YCDJ4

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Naga paczka wysłana statkiem masowym
Czas dostawy:	30 dni po otrzymaniu zaliczek
Zasady płatności:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Możliwość Supply:	300 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Marka ciężarówek:	HOWO, DONGFENG, JAC, ISUZU Ciężarówki Bobtail LPG	Tworzywo:	Ciężarówki Bobtail Q345R LPG
Rozmiar zbiornika:	Dostosowane	Ładowanie wagi:	2-20 ton (dostosowane)
SILNIK:	Silnik wysokoprężny MC11.36-40 Typ	Moc w koniach mechanicznych:	365 KM
Zamiar:	Napełnianie stacji skid, napełnianie cylindrów LPG Bobtail Trucks	Presja projektowa:	1,61 MPa 16,1 bara
Koło napędowe:	4x2, 6x4, 8x4, 2 osie, 3 osie, 4 osie	Składowanie:	LPG, Olej, Woda, LPG propan pentan, Gaz
Emisja:	Ciężarówki Bobtail LPG Euro2/3/4/5, Euro III/Euro IV/EuroV	Nazwa:	Ciężarówki Bobtail LPG, Ciężarówki Bobtail LPG Ciężarówka do napełniania gazem / ciężarówka do napeł
Kolor:	Dostosowane
Podkreślić:	35m3 LPG Bobtail Truck , 8x4 Howo LPG Bobtail Truck

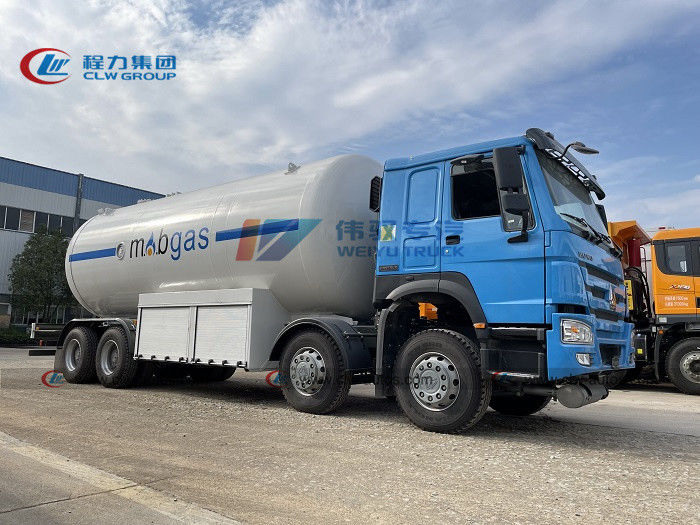

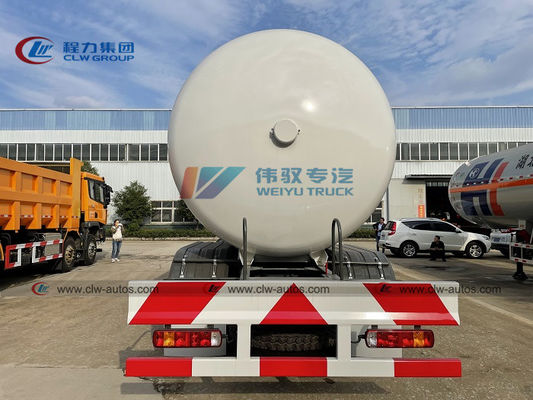

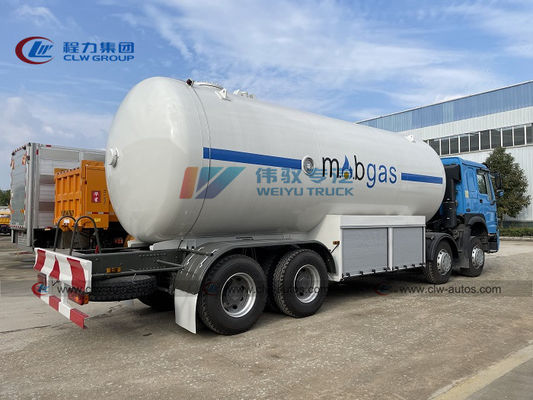

4Axles 8x4 Howo Large Capacity 35m3 LPG Bobtail Truck LPG Delivery Truck

8x4 Howo Large Capacity 35m3 LPG Bobtail Truck

LPG bobtail truck capacity: from 5cbm to 37.2cbm
tank meaterial:Q345R Q370R Q420R SA516
tank production flow:cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand blasting-painting
Refiling System of LPG Bobtail Trucks : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
Truck Spec of LPG Bobtail Trucks : Sinotruk diesel Engine MC11.36-40 Type 365hp, 80R22.5 (12 pcs with one spare).

Specification

Item No.	Parameters
Overall Dimension	11735x2496x3230mm
Driving Model	left hand drive
Gross Vehicle Weight	31000 kg
Curb Weight	11280kg
Payload	19720kg
Wheel Base	1950+4600+1400mm
Front/rear Tread	1540/2245 mm
Approach/Departure Angle	15/20 degree
Front Axle	6500
Rear Axle	7000/17500(Heavy duty design)
Engine	MC11.36-40,4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling
Engine horsepower	365HP EURO4
Displacement	10518mL (Diesel)
Max Driving Speed	101 km/h
Tire	80R22.5 (12 pcs with one spare)
LPG tank
Volume:	35,000Liters/35,000liters
Tank material:	Q345R
Tank diameter:	2400mm
Tank thickness:	12mm
End plate	14mm
Tank length:	Customized
Gas phase	DN50 or according to customer request
Liquid Phase	DN80 or according to customer request
Filling gas	Propane(LPG)
Design Pressure:	1.61Mpa
Accessory
LPG Pump	1 pc,Chinese brand
radiator	1 pc
Volume flow meter	1 pc,English remarks with printer for receipt,Chinese brand
Filling hose with filling nozzle	15M
Level Gauge	Rochester Float Ball type/located at side or rear of lpg tanker
Safety Valve	1,DN80
Tool and Valve Box	1
Thermometer	1
Pressure Gauge	1
Emergency Valve	1
Fender	Steel
Fire Extinguisher Holder	2
Exhaust shaft	At the front of truck for safety

After sales service

Before purchasing:

1- Quick reply on customers' inquiry;

2- Professional suggestion on truck choice according to different countries.

3- Details quotation with spec.and reasonable price.

4- Welcome to visit our company before purchasing.

After purchasing:

1- Production pictures and video updated every week.

2- Customer can visit factory after truck completion or arrange third party inspection.

After-sales service:

1- English Operation Video

2- Free operation and technical train at factory but not include accommodation

3- Spare parts supplied at factory price whenever needed.

4- Engineers can be sent to your country and offer local engineering support and train.

FAQ

Q1: What kinds of propane truck I can order from your company?

A: We can supply propane truck from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.

Q2: What is your production standard of propane truck? Whether your propane truck exported to others countries?

A: propane truck is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.

Q3: What's the difference between your company and other chinese supplier?

A: As the top manufacturer of lpg trucks and products for more than 15 years,our sales are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
