3 Lines 6 Axles 100T 120T Low Loader Lowboy Lowbed Semi Trailer For Excavators And Large Equipment Transport
Goods Description:
Our CLW Group, Chengli Special Automobile Co., Ltd. can provide high quality strong lowbed trailers maximize payload, and deliver strength and durability to meet the transport needs. And we serve and help transportation and logistic sector and their needs.
100-120 Ton 3 lines 6 axles Lowbed Trailer that can carry heavy loads and construction machines,like transformer generator, excavator and other crawler equipment,due to the drop deck design, it always called lowbed trailer. 3 line 6 axles Lowbed Trailer are noted for their highly robust structure steel and high loading capacity from 20 ton to 150 ton, Our CLW Group can offer the different specifications lowbed trailer to our valuable customers.
Features - 100-120 Tons 3 lines 6 axles Lowbed Trailer.
-
Highly robust structure steel with tensile and high load capacity, 100-120 tons loading capacity.
-

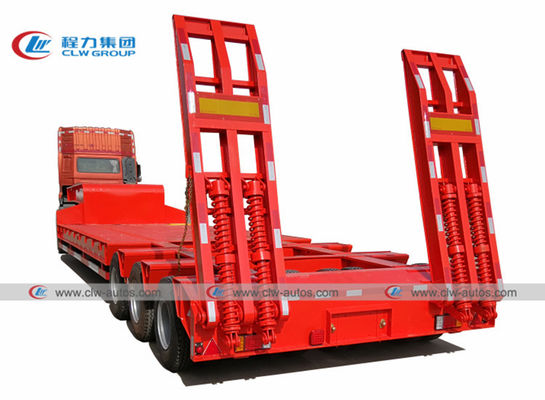

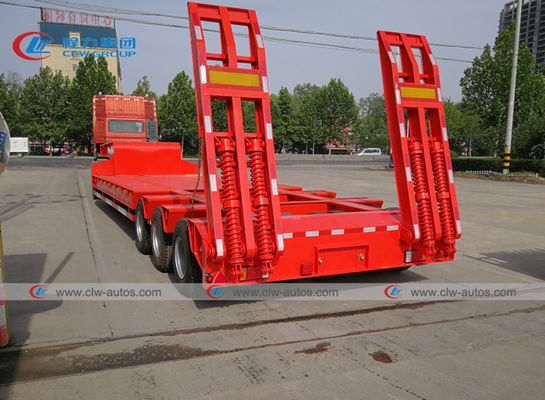

Mechanical spring ramp is standard, hydraulic ramp is an option for easy loading and unloading.
-
Lower working platform height, working platform height from 850mm-1200mm.
-
Heavy duty type rigid suspsension for high loads requirements needs.
-
3 Line 6 axles structure to ensure small turning radius.
-
Length and width of lowbed avaiable custom made
-
Parameters for 3 Lines 6 Axles 100T 120T Low Loader Lowboy Lowbed Semi Trailer for Excavators and
Large Equipment Transport:
| Heavy duty lowbed semi trailer |
| Axles No. |
3 lines 6 axles |
| Pay load |
100-120tons |
| Dimension |
14800mm*3500mm*700mm(Platform Height). Overall Height: 1710mm.
Platform length: 6000mm
|
| Axle Brand |
CTC 15Tons, 6 pieces |
| Suspension |
Mechanical Type Rigid suspension |
| Tires |
9.00R20, 24pcs |
| Rims |
7.0-20, 24pcs |
| Main beam |
Heavy duty Double I beam. |
| Side beam |
300mm I beam |
| Plate |
5mm checked plate |
| Ladder |
Mechanical spring ladder, width: 650mm, Height: 3400mm. |
| Kin pin |
2’’/3.5’’ JOST Brand bolt-in type |
| Landing gear |
JOST brand A 300, 40 Ton two speed |
| Braking system |
WABCO RE 6 relay valve, Double air chamber ,brake valve,45L air tanks ; ABS optional |
| Electrical |
LED light , 7 ways ,24V |
| Painting |
Sand blasting processing clean rust |
| 1 coat of anticorrosive primer |
| 2 coats of finish urethane paint |
| Color as customer choice |
| Accessory |
One tooling box with a set of standard trailer tool |
| Usage |
Is applicable for the transportations of the mechanical equipment, |
| large objects, highway construction equipment, large tanks, |
| power plant equipment or machine, and all sorts of steel products. |
| Other Descriptions |
The cargo platform is lower than others, |
| is applicable for unsound road condition, |
| ensuring the stableness of the transportation. |
| Other Specifications |
It's concave structured with tyre appeared style, |
| the height of the cargo's carrying platform from ground is 900mm, |
| (ladders belong to optional components), with the overall height of 1710 mm |
| Remark |
We can design model according to client's requirement |
More pictures for Heavy Duty Low Loader Lowboy Lowbed Semi Trailer for Excavators and Large Equipment Transport:
2 lines 4 axles 60-80 Tons Lowbed Trailer's pictures for reference:

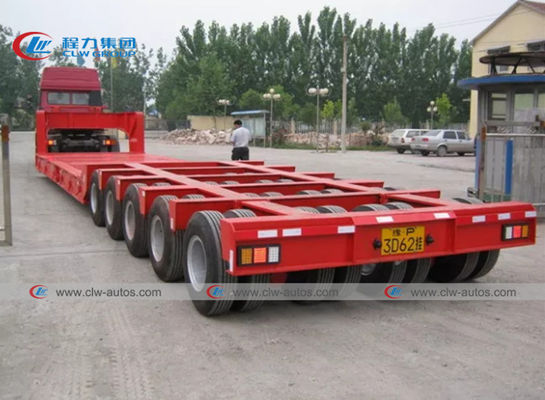

3 lines 6 axles 80-120 Tons Lowbed Trailer's pictures for reference:
4 lines 8 axles 120-140 Tons Lowbed Trailer's pictures for reference:
5 lines 10 axles 150-200 Tons Lowbed Trailer's pictures for reference:
Our Advantages
1. The series of low bed trailers have flat-plate, concave beam and exposed tire structures, and the longitudinal beams are straight or gooseneck. The frame is stepped and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.
2. The main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various types of engineering machinery, large equipment and steel.
3. The electrical system of a lowbed trailer is composed of seven-core sockets, cables, gas lines, various lamps, etc. It is used for lighting, safety warning, and air supply for brakes. Generally, if you look at the regularity of electrical wiring, you basically know how the quality of this heavy transport trailer.
4. The support device of the semi-trailer is mainly used to support the low flatbed trailer when it is detached, and is composed of legs and connecting brackets.
5. The low bed trailer for sale protection device consists of side protection and rear protection to protect pedestrians and other vehicles.
6. Other accessories on the semi-trailer include toolboxes, spare tire racks, etc. There are also some small accessories such as tight ropes and rope hooks, which are very functional accessories, which need to be selected according to their own types of goods.
