4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation

Duży Obraz : 4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Hubei, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO9001, CCC, BV, SGS
Numer modelu:	CLW528EWI

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	Negotiated
Szczegóły pakowania:	Nagi lub woskowany przed wysyłką
Czas dostawy:	30-35 dni po otrzymaniu wpłaty
Zasady płatności:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Materiał cysterny:	Stal nierdzewna, stop aluminium	Typ napędu:	4x4, Off Road ze względu na zły stan dróg
Model napędu:	Lewą rękę	Objętość zbiornika:	15000L, 15cbm, 15000litrów, 12m3
Marka ciężarówek:	Sinotruk Howo	Typ zakładki:	Nafta lotnicza Jet A1 Transport, dostawa i uzupełnienie
Inne wyposażenie:	zawory ładowania/rozładowywania. Właz API	Przedział:	1
Szafarka:	Z dystrybutorami (2 maszyny do napełniania paliw)	Nazwa produktu:	Helikopter Samolot Lotnictwo Rufueling/Uzupełnianie Napełnianie cysterny
Typ:	Dla armii, do użytku wojskowego	Typ transmisji:	Podręcznik
Podkreślić:	10000liters Refuelling Oil Tank Truck , 10cbm Refuelling Oil Tank Truck , Aircraft Aiviation Fuel Tank Truck

4X4 All-Wheel Drive 10cbm 10000liters Fuel Tanker Refuelling Oil Tank Truck Aircraft Aiviation Fuel Tank Truck

Product description:

Howo 4X4 off load left hand driving
WEICHAI diesel engine with 266hp
Front/rear axle loading: HF7/ ST16
10-Forward & 2-Reverse gear box single H manual operation type
Q235B carbon steel; Ellipse tank shape
10cbm tank volume with 5mm thickness

Product advantages:

4X4 four-wheel drive fuel truck adopts world-class automotive technology, novel design and unique style
The cab is comfortable to ride, has a wide field of vision, is well sealed and has complete functions;
The best engine power matching, high passability, high reliability chassis, flexible maneuverability,
It is used for cargo transportation in roadless areas, suitable for a variety of complex road conditions,like deserts, floating soil, Gobi, gravel, mud, mountains, rugged, ice and snow.
Temperature resistance ±45℃
The use of special tires for desert off-road makes the vehicle even more powerful and invincible. (Optional by model)

Product specification
Model		Refueling tank truck	Tank volume	10,000L /10m3
Overall Dimension(LxWxH)		820024503200mm	Driving type	4x4 off road
Chassis parameters
Chassis		HOWO
Cabin		One and a half row, allowable for 3 passengers, with a bed, and Air conditioner
Engine	Model	WD615.62
	Rated power	266hp
	Displacement	9.726L
	Type	6 cylinders in-line, 4-strokes, turbo-charged intercooling, direct injection
	Emission	Euro 2, Diesel
	Manufacturer	SINOTRUK
Tire	Size	295/80R22.5, tubeless tire
	Number	6 tires plus one spare
Front / Rear axle		HF7/ ST16	Transmissions	HW15710, 10-Forward & 2-Reverse
Fuel tank		400L, steel	Wheel Base	4300mm
Tanker parameters
Tank dimensions		380015701100mm	Tank volume	10,000L
Shape of the tanker		Ellipse	Tank thickness	5mm body/ end plate 6mm
Material of tanker		Q235B carbon steel, epoxy paint 3 layer inner surface for anti-corrosion
Transport medium		Diesel oil
Manhole		GLME, Euro standard, including pressure relief valve
Bottom Valve		GLME, Euro standard
Discharge Valve		Aluminium Alloy Ball Valve type (stainless steel ball valve is optional)
Emergency Cutoff Device		Equipped
Oil Pump		Weilong or Yifeng (Chinese famous brand )
Flow Meter		High-end flow meter
Filling Gun		Rotary filling gun
Standard configuration		tool box,climbing ladder, handrail, fire extinguisher, oil hose etc are included
Optional Configuration		pneumatic valve, AIP valve, overflow sensor system, vapour recovery system
Color & Logo		Customized

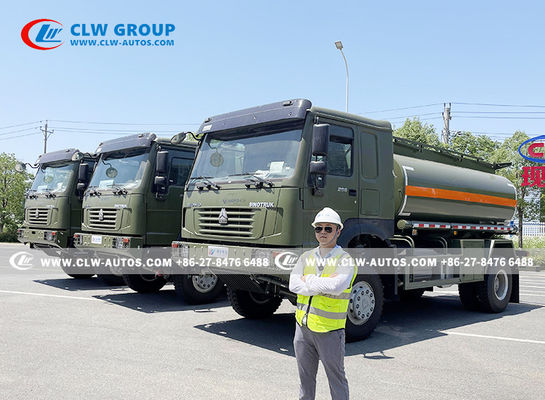

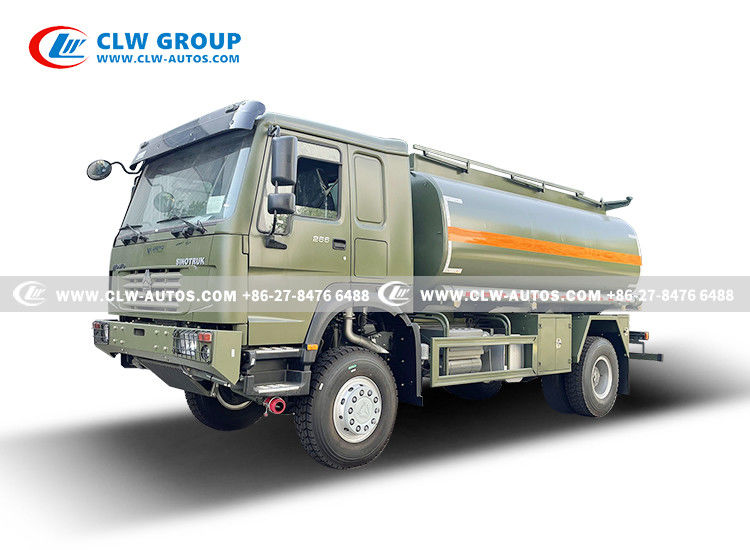

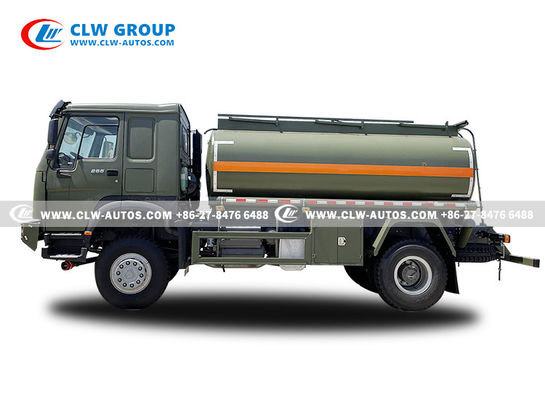

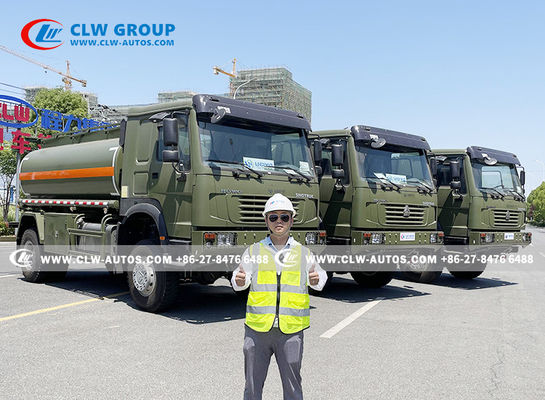

1.Trucks photos in Factory

4X4 All Wheel Drive 10cbm 10000liters Refuelling Oil Tank Truck Aircraft Aiviation 0

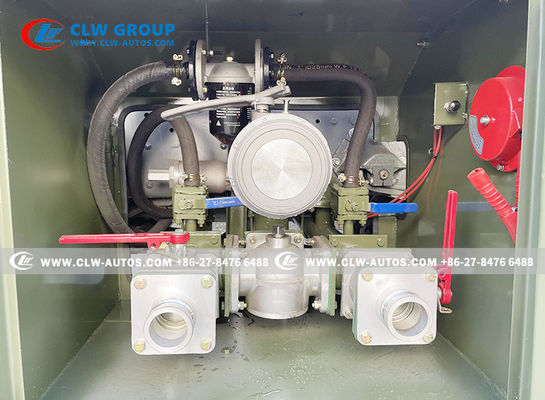

2.Toolbox filling room

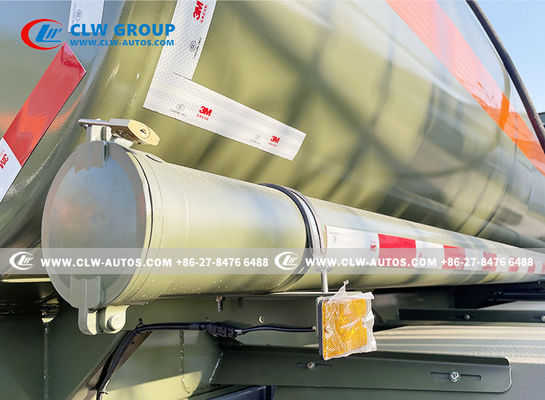

3. Unloading pipes on both sides of the tank

Our advantages:

Certificate: ASME, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
