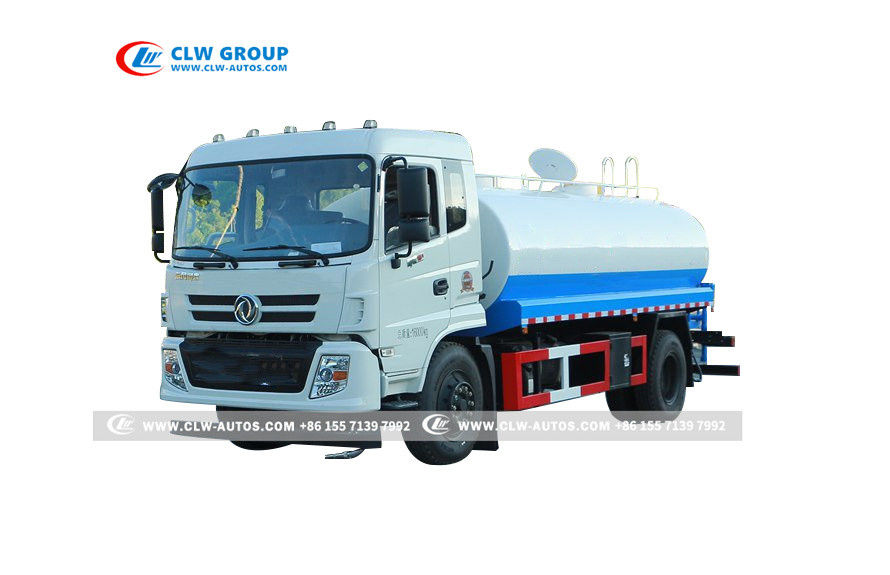

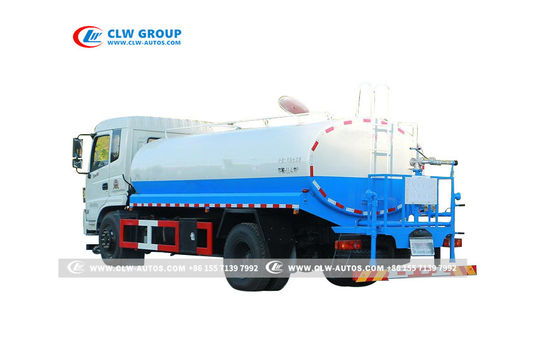

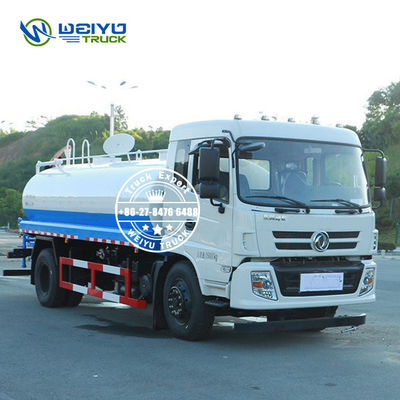

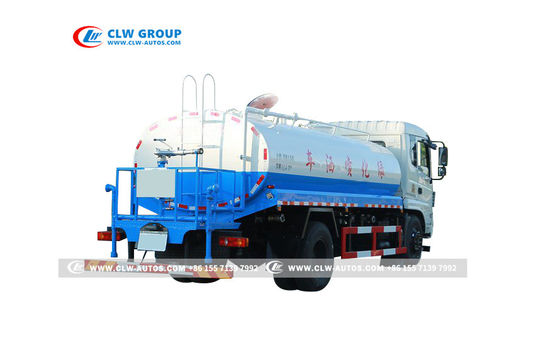

Sanitation Water Bowser Truck 13000 Liters Water Sprinkler Truck

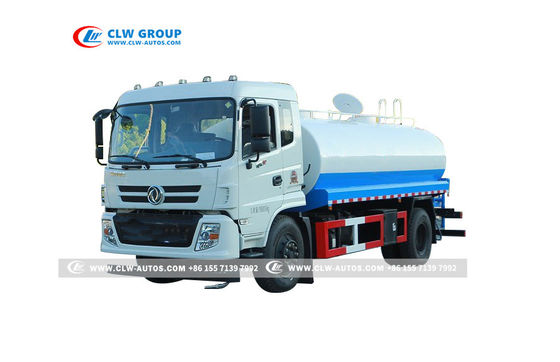

Duży Obraz : Sanitation Water Bowser Truck 13000 Liters Water Sprinkler Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	CCC,ISO
Numer modelu:	CLW5079dcx

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	negotiable
Szczegóły pakowania:	Nagie opakowanie, Ro-ro, statek masowy
Czas dostawy:	20-30 dni
Zasady płatności:	L/C, T/T, D/A, D/P, Western Union, Moneygram
Możliwość Supply:	500 jednostek miesięcznie

Kontakt

Szczegółowy opis produktu

Podwozie ciężarówki:	ISUZU, HOWO, Dongfeng, FAW, JAC, JMC, FOTON	Tworzywo:	Stal węglowa Q235a
Grubość:	bok 4mm, dół 4mm	Paliwo:	Typ silnika wysokoprężnego
Pompa wodna:	Chinowa znana marka	Wysokość ssania:	7m
Zasięg armat:	30m	Szerokość zraszania:	15 m
wideo z operacji:	Tak	Instrukcja obsługi:	Tak
Logo:	Jako żądanie klienta	Gwarancja:	1 rok
Typ cysterny na wodę:	Cysterna do rozpylania wody
Podkreślić:	13000 Liters Water Sprinkler Truck , Sanitation Water Bowser Truck

Sanitation Truck Water Bowser 13,000 Liters Water Sprinkler Truck For Water Tank Transport Street Flushing Truck

Product Description

Optional chassis brand: Dongfeng, Sinotruk, FOTON, Forland, Faw, Shacaman.
water transportation, road sprinkling, plant watering.
Q235 water tank, front, side and rear sprinkler nozzle.
antiskid platform with water cannon.
The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain.
The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 25m.
Reliable and high quality water pump

Instructions for use of the vehicle:

When the sprinkler uses rivers and ponds as water sources, pay attention to the fact that all the ends of the suction pipes are submerged in the water.
In order to avoid inhalation of stones or more sediment and debris, a filter device is installed at the suction port of the suction pipe.
If the water source is shallow, it is necessary to dig deeper into the water absorption area in advance to ensure that it does not contain debris and does not enter the air.
When the self-priming pump is used for the first time, it is necessary to add water diversion, and it is not necessary to add water diversion later.
When absorbing water, the water inlet pipe system must maintain a certain degree of vacuum in order to suck the water into the tank.
The water inlet pipe system must be sealed and reliable, the hose must not be damaged, and the hard pipe must not have cracks, otherwise there will be air leakage, which will cause the situation that water cannot be absorbed.
Whether the sprinkler truck is absorbing water or before sprinkling water, the power take-off device must be in gear when it is parked.
Before winter comes, the water in the water pump and water pipe should be emptied to prevent freezing and cracking.
Generally, construction is not carried out in the severe winter in the north. Therefore, after the construction is completed, the water in the water pump and water pipe should be drained immediately to prevent future troubles.

Items	Descriptions	Specifications and Types
General	Truck Name	13000L Water Bowser Truck
	Drive Type	4*2
	Gross Weight(kg)	16000
	Curb Weight (kg)	7050
	Approx.Overall Dimensions (mm)	7700×2496×2958
Engine	Engine Model	WD615.87
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	190HP
	Emission Standard	Euro V
	Displacement(ml)	6440
	Engine Type	6 cylinders in line, inter cooler, supercharged diesel engine
Chassis	Chassis Brand	Dongfeng
	Cabin	One row with single sleeper, titled, flat roof,with ac
	Tire No.	6+1
	Tire Specification	11.00R20 All Steel tire
	Axle No.	2
	Steering Wheel	Left hand drive with power-assisted
	Gear Box	FAST 8 speed forward with 1 reverse, manual
	Brake	Air brake
Tank	Tank Volume(L)	13000
	Tank Shape	Rectangular
	Tank Material	Carbon Steel, 5mm thick
Performance	Spraying Width(m)	14
	Canon Range(m)	25
Equipment	1.Front flushing , side spraying, rear sprinkling nozzle and platform with water cannon and water gun. 2.The water cannon can be rotated 360 degree. The water flow can be adjusted to heavy, medium, light rain, drizzle and mist. 3.Water suction depth is about 7m.

1. Water Truck Digram

Sanitation Water Bowser Truck 13000 Liters Water Sprinkler Truck 0

2. Truck details:

2.Main structure:

Front flush nozzle at the bottom of the cab
The rear of the tank is equipped with an anti-aircraft gun workbench
Forged manhole
Tank Side Tool Box

3.Working Diagram

Sanitation Water Bowser Truck 13000 Liters Water Sprinkler Truck 3

4.Production Line for Water Tank Truck
