SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck

Duży Obraz : SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck

Szczegóły Produktu:

Miejsce pochodzenia:	Suizhou, Chiny
Nazwa handlowa:	CLW
Orzecznictwo:	ISO, CCC
Numer modelu:	CLW5161TSLD

Zapłata:

Minimalne zamówienie:	1 jednostka
Cena:	14850 usd/unit~28760 usd/unit
Szczegóły pakowania:	Naga paczka wysłana statkiem masowym
Czas dostawy:	W ciągu 30 dni po otrzymaniu zaliczek
Zasady płatności:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Możliwość Supply:	300 jednostek / miesiąc

Kontakt

Szczegółowy opis produktu

Nazwa produktu:	Zamiatarka uliczna	Rozmiar zbiornika na wodę:	2000 litrów/2000 litrów
Rozmiar zbiornika na kurz:	5 cbm/6 cbm	Materiał zbiornika wody:	stal węglowa/stal nierdzewna/304
Materiał zbiornika na kurz:	stal nierdzewna/304	SILNIK:	120 KM, silnik diesla
Rozstaw osi:	3800 mm	Opona:	7,50R16,
Szerokość zamiatania:	> 3,2 metra	Rozmiar cząstek inhalacyjnych:	φ120 mm
Maksymalna pojemność operacyjna:	15000㎡/h-60000㎡/h	Aplikacja:	Sprzątanie ulic, lotnisko, Outdoor, zamiatanie dróg, port
Kolor:	Biały lub dostosowany
Podkreślić:	SINOTRUK HOWO Road Sweeper Truck , 8CBM Road Sweeper Truck

SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck

Description

Road sweeper(also called sweeper truck,road cleaning truck,vacuum sweeper) is a new generation of environmental protection, cleaning and suction combined with road cleaning special vehicles, mainly applicable to the city streets, municipal square, large factories and mines mechanized cleaning and cleaning operations.

Product specification:

It adopts the combination of suction and sweep to collect garbage, wet dust removal, electro-hydraulic control, and hydraulic tipping and unloading to clean the road surface.
The auxiliary engine is used to drive the fan and hydraulic system to ensure that it can continue to work during the driving process and to ensure the continuity of the cleaning process.
The structure of "center four-disc brush + rear suction nozzle" is adopted, which is convenient for the adjustment and maintenance of the cleaning device and suction nozzle, and the vehicle has good passability during transition.
The transmission between the auxiliary engine and the fan is provided with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan when it is started and stopped without load, reduce the impact on the auxiliary engine, and improve the working reliability and service life of the auxiliary engine.
The sweeper is equipped with an obstacle avoidance protection function and a reset function. It retracts after encountering an obstacle and resets after crossing the obstacle.
According to different cleaning conditions, without adding the auxiliary throttle, the National VI Dongfeng Dolica 8-square road sweeper can also realize the speed regulation of the sweeping high, middle and low gears, which can not only ensure good performance under various pollution conditions Improve the cleaning effect, while saving fuel consumption and bristle loss.
The rear suction cup adopts a full-floating suction nozzle that can automatically level with the road surface, which has good dust suction effect, is not easy to wear, and has a long service life.
Equipped with high-quality hydraulic motor, the speed is stable, which can greatly improve the work efficiency while ensuring the cleaning effect, and has a low failure rate and a longer service life.
The tailgate of the waste bin adopts the ultra-wide 3-hook design, which is rare in the same class. The opening angle of the tailgate is greater than 85 degrees, which makes it easier to dump waste and clean the waste bin.

Technical Parameters		Condition			New condition/Right hand drive/4x2
		Overall Dimension(mm)			6700×2200×2750
		Gross Vehicle Weight(Kg)			8995
		Loading Weight(Kg)			1900
		Curb weight(kg)			5965
Chassis		Brand			Dongfeng
		Wheelbase(mm)			3800 mm
		Axle Load(kg)			4300/7600 kg
		Brakes			Air brake
		Steering Gear			Power steering, hydraulic steering with power assistance
		Tire	Quantity(pcs)		6pcs with one spare tire
			Specifications		8.25-16
Gear box		Manual type, 5 Forwards & 1 Reverse
Cab		One and half row seat. With air conditioner.
Engine		Horsepower(HP)				120 HP
		Cylinder quantity(pcs)				4 pcs
Upper
Tank	Garbage tank			Tank material			Stainless steel
				Tank volume(cbm)			6.0 cbm
	Water tank			Tank material			Stainless steel
				Tank volume(cbm)			2.0cbm
Auxiliary engine	Power(kw)			87hp
	Fuel type			Diesel
Sweeping System	Type			Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down.
	Working area(m)			2.7-3.0 m
	Cleaning capacity			40000m2/h
Remarks	1, Rear LED pilot lamp
	2, Self unloading box body
	3, Rear vacuum cleaner
	4, The tank color is optional

Reference Picture

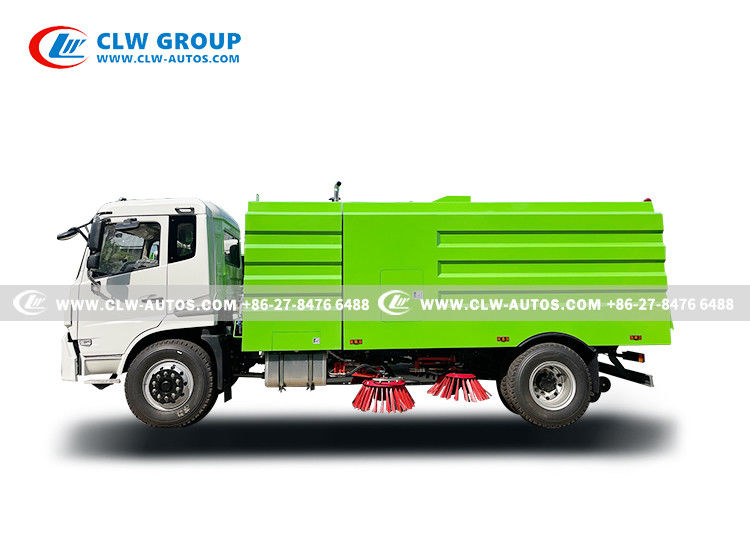

SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck 0

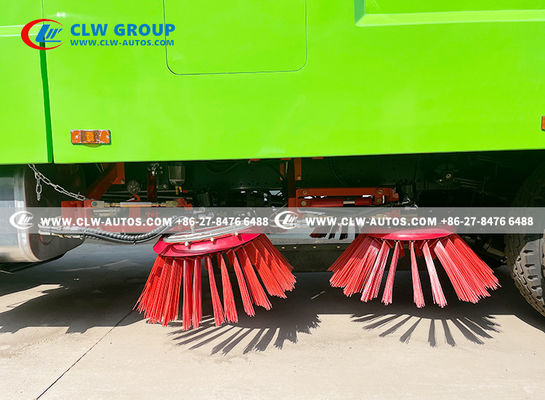

2.The structure of "center four-disc brush + rear suction nozzle" is adopted
which is convenient for the adjustment and maintenance of the cleaning device and suction nozzle, and the vehicle has good passability during transition.

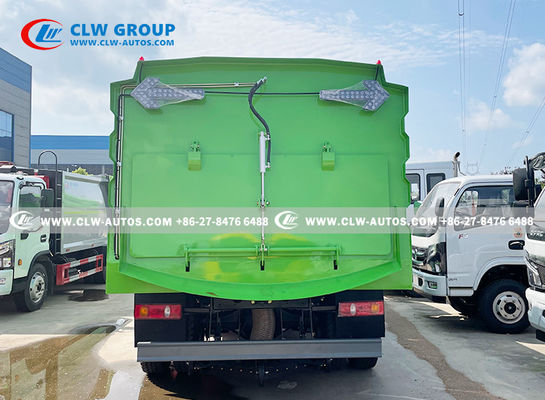

SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck 1

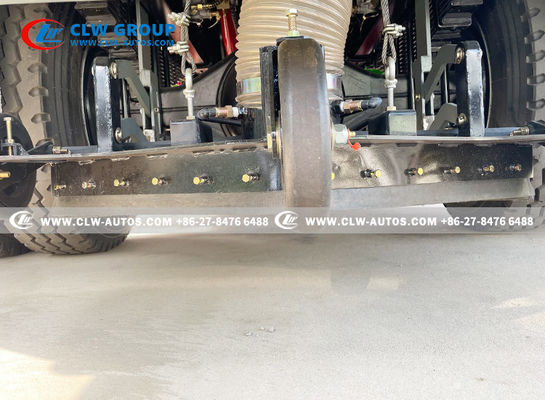

3.Full floating nozzle, good vacuuming effect, not easy to wear and long service life.

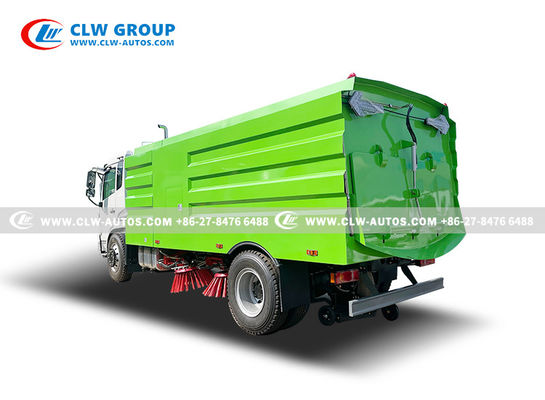

SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck 2

5.vehicle drawings

SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck 3

SINOTRUK HOWO 8 CBM Road Sweeper Truck Dust Cleaning Collection Truck 4

FAQ

★How can I get a sample of Vacuum Street Sweeper to check your quality?Answer:Due to the Vacuum Street Sweeper size,sample can not be sent to your country.But we have supplied a lot of road sweepers to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
★How long can I expect to get the Vacuum Street Sweeper ?Answer:20~30 working days after receiving deposit at account.
★What's your payment term?

Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of Vacuum Street Sweeper ?

Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.

★Does your road sweeper have warranty service? How long is the warranty period?

Answer:Yes,one year free warranty for tanker body,axles.

Key word: road sweeper,vacuum sweeper,road cleaning truck,road cleaner truck,street cleaning truck,street sweeper
