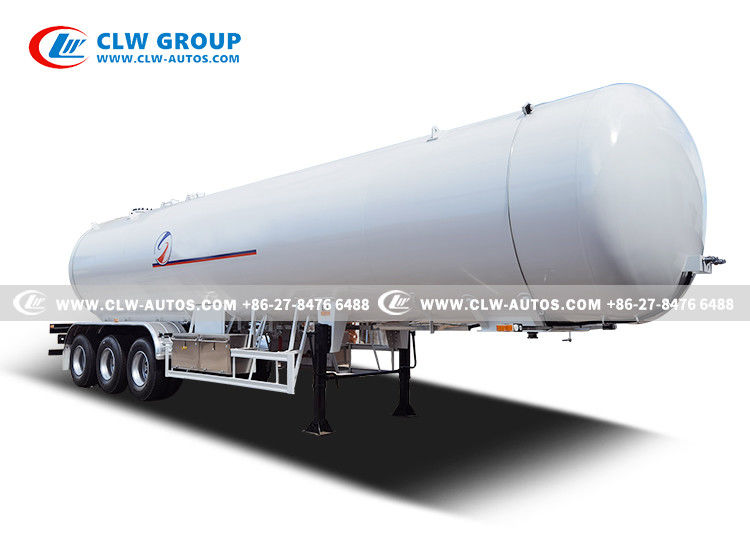

49.6CBM LP GAS Semi-Trailer Propane Delivery Tanker Truck
Product Description:
LPG semi-trailer (LPG semi trailer) is also known as liquefied gas semi-trailer, liquefied gas tank semi-trailer, liquefied gas tank semi-trailer, liquefied petroleum gas transport semi-trailer, liquefied petroleum gas semi-trailer, LPG tanker semi trailer.
It is a special transport semi-trailer for transporting liquefied gases such as propane, propylene, dimethyl ether, liquid ammonia, methylamine and acetaldehyde.
1) LPG semi-trailer function :
- transporting liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
- We can offer lpg bridger truck tanker trailers from 40cbm to 61.9cbm.
2) Manufacturing standards of LPG Transport Tanker Trailer :
- GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of LPG Transport Tanker Trailer:
- ROCHESTER level gauge
- flow meter
- sunshelter
- lpg pump
- lpg dispenser machine
- filling hose
4) Available tanker trailer capacity of LPG Transport Tanker Trailer:
Product Specification
| Item |
Parameter |
| Tank |
Description of LPG tank |
60m3 LPG semi-trailer |
| Volume |
49.6 CBM |
| Overall dimensions (mm) |
12700*2550*3990 |
| Curb weight(kg) |
15500 |
| Approach Angle/Angle of departure |
-/20 (°) |
| Wheel base |
6800+1300+1300(mm) |
| Tire |
12R22.5 12PR |
| Axle Number |
3 |
| Design pressure |
1.61MPa |
| Design temperature |
-19~50ºC |
| Filling medium |
Liquid petroleum gas (propane) |
| Corrosion allowance |
1.0mm |
| volume |
49.6 CBM |
| Thermal treatment |
The entirety |
| Filling factor |
420-590kg/CBM |
| Material of the tank |
Q345R or sa516gr70 |
| Hydraulic test pressure |
2.1 MPa |
| Cylinder thickness |
12mm |
| Head thickness |
14mm |
| Service time |
20 years |
| Liquid level indicator |
Type |
Float ball level gauge |
| Normal pressure |
2.21MPa |
| Scope of testing |
50-2300mm |
| Precision |
2.5 |
| Safety valve |
Model |
A42F-2.5-80 |
| Version |
Built-in |
| Normal pressure |
2.5 M Pa |
| Normal diameter |
DN80 |
| Opening pressure |
1.68~1.76M Pa |
| Re-seating pressure |
>=0.8 times of the opening pressure |

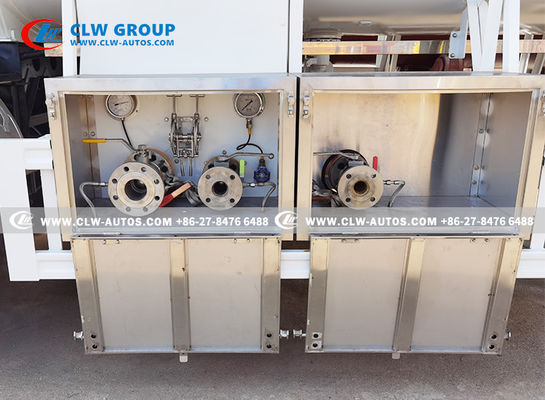

| Loading and unloading system |
Normal diameter |
Feed pip |
DN80 |
| Drain pip |
DN80 |
| Admission port |
DN80 |
| Sewage outfall port |
DN80 |
| Vent nozzle port |
DN80 |
| Standard |
GB150 <pressure vessel>TSG R0004-2009 or ASME |
| Specification |
Designed Pressure: 1.77Mpa
Filling Ratio: 0.42-0.59 kg/L
Working Temperature:-50ºC
Corrosion Allowance: 1mm |
| Standard configuration |
13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender. |

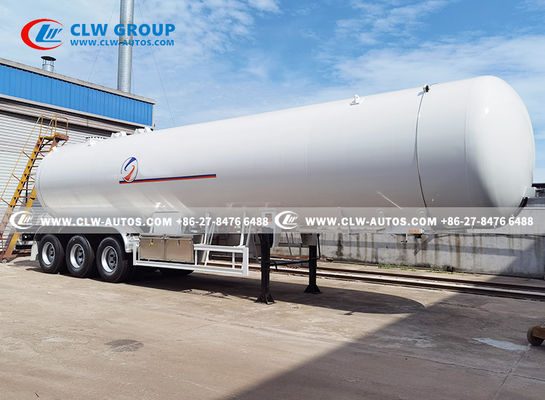

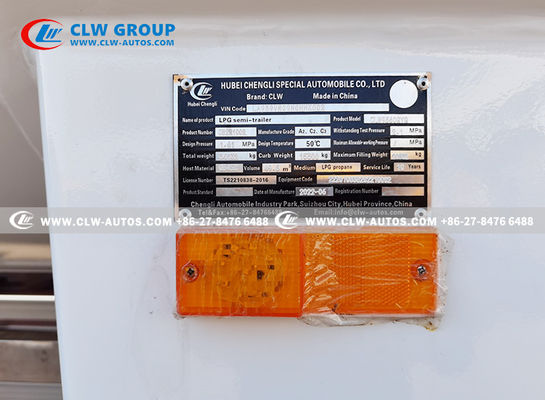

Reference Photos
Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of lpg tank trailer I can order from your company?
A: We can supply various sizes of lpg tank trailer from30-60cbm,etc.
Q2: What's the material of your lpg tanker?
A: We usually provide Q345R, Q370R, Q420R for customer's choice.
Q3: What is your production standard of lpg tank trailer? Whether your lpg tank trailer been exported to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported lpg tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
