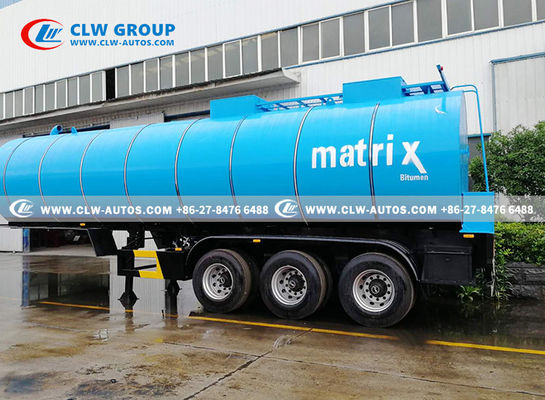

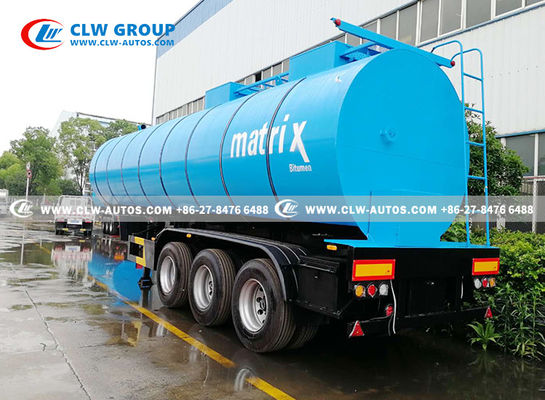

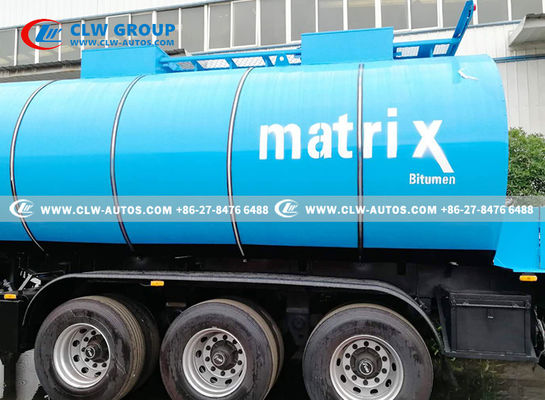

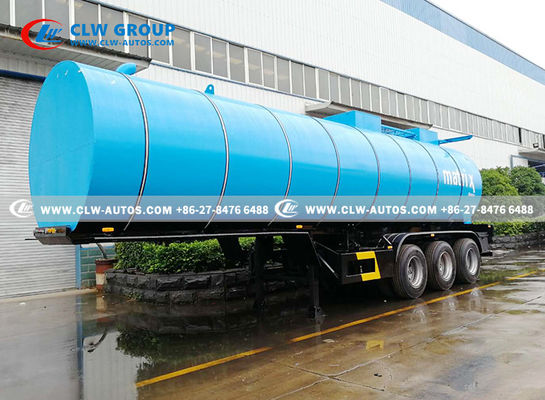

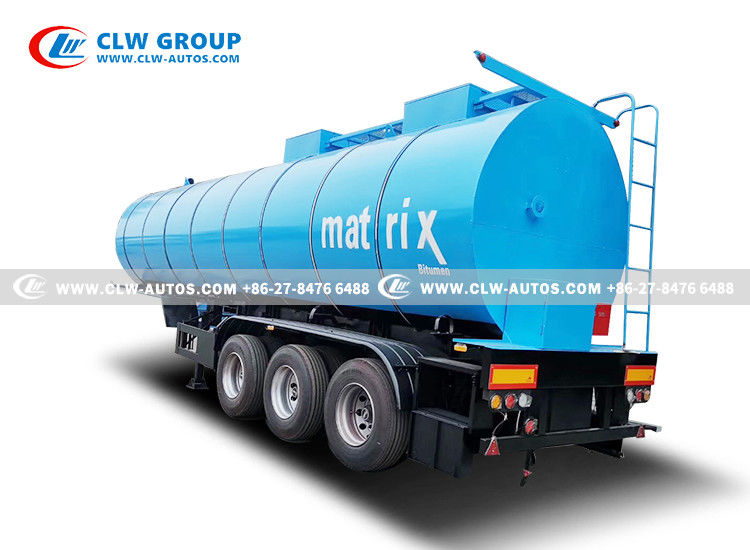

40cbm Bitumen Trailer Liquid Heating Asphalt Tanker

40cbm Bitumen Trailer Liquid Heating Asphalt Tanker

TECHNICAL HIGHLIGHTS:


• BPW, FUWA or Certificated Axles
• Self Steering, steering axles
• Single or Double tires
• Bitumen Tanker Trailers, Asphalt Tank Trailers, Heavy Oil Tank Trailer
• Heating System and Insulation Tank Body
• ST Quality Steel usage
• Air or Mechanical Suspension
• EBS brake system
• Steel Rims or Aluminum

Product Description:

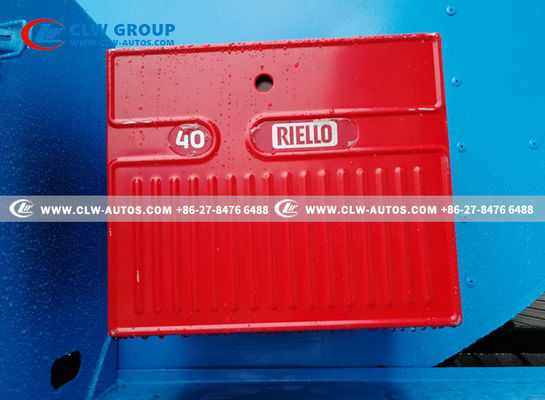

1.The asphalt tank is equipped with a heating system, equipped with imported diesel burners, with good combustion quality and no pollution;

3. The asphalt pump and valve are heated and insulated by a unique heat transfer oil system; the hydraulic system drives the asphalt pump and the heat transfer oil pump, with reliable transmission and convenient operation;

4. Multi-function pumping system, reliable transmission and convenient operation, can meet various needs in asphalt transportation; it has a full-range liquid level display and a full-level alarm system, which is convenient for the control of the asphalt liquid level in the tank;

5. Self-flow unloading: when the oil storage tank is lower than the asphalt truck, it can be directly discharged by self-flow;

6. Pressure discharge: when the oil storage tank is higher than the asphalt truck, pressure pumping is used;

g 7. Self-pump suction: the asphalt in the thermal insulation tank or oil storage tank can be sucked into the car through its own oil discharge pipe, without the need for an external pump;

8. Internal circulation: In the process of asphalt heating, internal circulation can be carried out to improve the quality of asphalt heating;

9. External pump input: Asphalt can be injected through the tank top manhole.

Specification

Reference photos

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
