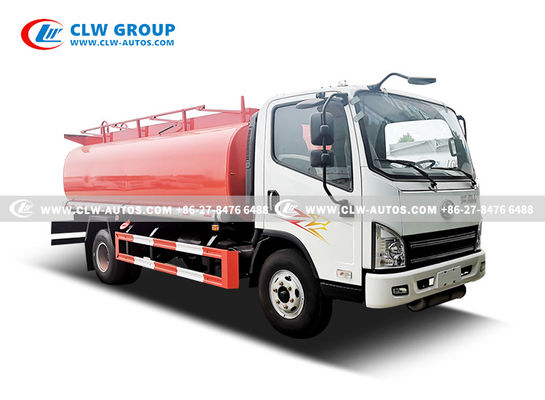

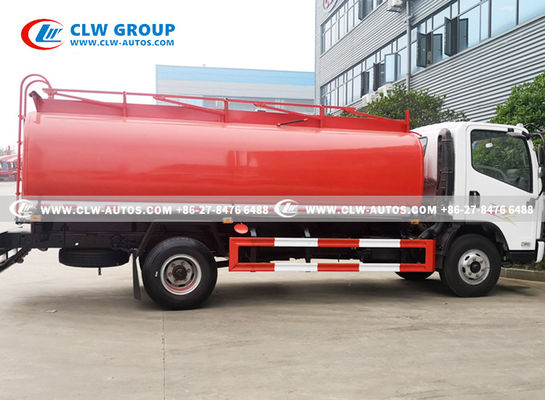

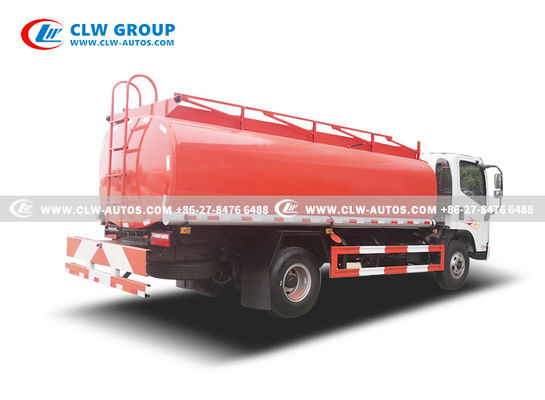

8 Ton FAW Refueling Truck Oil Delivery Tanker Sub-Silo Design With Unloading Oil Pipe
Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined. We can provide you all series tank trucks and price.
1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;
2. Tank shape: Optional for round square, oval, and round;
3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4. Oil pump:Optional single counting, double counting, and tax control tanker;
5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.
Product Specifications
| FOTON Aumark Fuel Tank Truck (8CBM) |
| General |
Chassis Brand |
FAW |
| Overall Dimension |
5995x1980x2160 mm |
| GVW / Kerb Weight |
16,000kg / 6130kg |
| Cab |
Cab Capacity |
RHD, 3 persons allowed |
| Air Conditioner |
Heating/cooling air conditioner |
| Engine |
Fuel Type
|
Diesel |
| Power |
120 HP |
| Displacement |
4214 ml |
| Emission Standard |
Euro 5 |
| Chassis |
Drive Type |
4X2 (Right hand drive) |
| Transmission |
6 speed levers with 1 reverse |
| Wheelbase/No. of axle |
3300 mm / 2 |
|
Tire Specification
|
7.00R16 |
| Tire Number |
6 tires and 1 spare tire |
| Max Speed |
80 km/h |
| Paint |
Metallic paint |
| Superstructure |
Body capacity |
8,000 Litres |
| Tanker Material |
Carbon Steel |
| Pump |
Fuel pump equipped for overhead delivery |
| Hose |
High quality, wire strengthened hose,
with cooper wire, anti-static
|
| Refueling Machine |
Equipped based on customer requirement |
| Control panel |
English or Your language |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers... |
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).
** It can be divided into many compartments.
** Imported American pump as optional.
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
|
Reference Photos
Other Kinds of Fuel tank trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
