HOWO 5CBM LP Gas Bobtail Truck DRC Market Propane Transfer Tanker
Product Description
LPG rigid truck(also called lpg bobtail truck,lpg dispenser truck,lpg refilling truck,lpg tanker truck,lpg dispensing truck) is designded and used for transporting and refueling propane/lpg gas/liquid petroleum gas into smaller lpg skid station tank and home cylinders.
1) Truck Brand optional for lpg bobtail :Sinotruk Howo, dongfeng,faw,isuzu,foton and other brands.
2) Tank Size of lpg bobtail : 5000liters,5000L,10,000liters,10000L,10cbm,12000liters 12000L,12cbm,15000 Liters,15000L,15cbm,
3) Function of lpg bobtail : mobile Propane or Butan Gas Delivery/ Refilling/bottling/filling truck

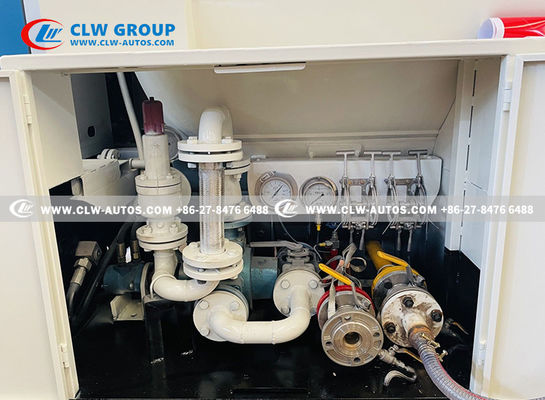

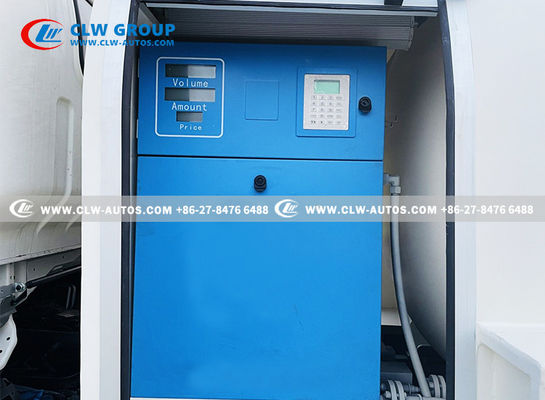

4) Refiling System of lpg bobtail : 2" Flowmeter or intelligent filling dispenser machine,2" Corken or Chinese brand Pump,15meters Filling Hose Reel,filling nozzle,radiator,hydraulic oil box
5) Truck Spec of lpg bobtail : Yuchai Engine 140HP or 160hp, WLY6T51 Gearbox 5 Forward & 1 Revers, 8.25R20 Tires or 9.00R20 tires.
CLW truck's advantages
1. Manufacturing and testing of the tanks are made under supervision of an independent inspection body.
2. Fine grain pressure vessel steels are used for manufacturing the tanks. Metallurgical and mechanical properties of the steels are tested and verified.
3. All welded joints are tested according to the manufacturing standard. A combination of X-ray, ultrasonic, dyepenetrant and magnetic particle tests is utilized.
4. After manufacturing. all tanks are subjected to hydrostatic pressure test. After this test, the connections of tank accessories are tested against leaks, using nitrogen.
5. Tanks are sand blasted and coated with premium quality paints. The right type and thickness combination of primer,undercoat and top coating are determined according to the above ground or underground service. CLW GROUP quality will offer highest performance during the whole service life of tank.
6. CLW GROUP 's transportation tank designs and assembly details conforms to international standards and the truck
manufacturer's procedures and guidelines.
| Item No. |
Parameters for Sinotruk HOWO 6 wheeler 116hp mobile LPG tank gas cylinder filling truck 5000Liters LPG bobtail for Nigeria |
| Overall Dimension |
7600x2300x2980 mm |
| Driving Model |
Left hand drive or right hand drive |
| Gross Vehicle Weight |
11460 kg |
| Curb Weight |
6460 kg |
| Payload |
5000 kg |
| F/R Axle Loading |
3200/8000 kg |
| Wheel Base |
4200 mm |
| Front/rear Tread |
1886/1845 mm |
| Approach/Departure Angle |
27/20 degree |
| Engine |
Yuchai 4110,YC4E160-33 |
| Engine horsepower |
160 HP EUROIII |
| Displacement |
4260mL (Diesel) |
| Max Driving Speed |
95 km/h |
| Gear Box |
DC6J65TC,6 forward& 1 reverse |
| Cabin |
2~3 Passenger allowed,with A/C |
| Tire |
8.25R20 (6 pc with 1 spare) |
| LPG tank |
|
| Volume: |
8~10cbm |
| Tank material: |
Q345R |
| Tank diameter: |
1800mm |
| Tank thickness: |
10mm |
| End plate |
10mm |
| Tank length: |
As designed |
| Gas phase |
DN50 |
| Liquid Phase |
DN50 or DN80 for option |
| Filling gas |
Propane(LPG) |
| Design Pressure: |
1.61Mpa |
| Accessory |
| Level Gauge |
Manual rotation type,at the rear of tank |
| Safety Valve |
1,DN80 |
| Tool and Valve Box |
1 |
| LPG pump |
1 |
| LPG Volume Flow Meter |
1 |
| Filling Hose |
15 meters |
| Filling Nozzle |
1pc,Standard for 12.5kg cylinder |
| Thermometer |
1 |
| Pressure Gauge |
1 |
| Emergency Valve |
1 |
| Fender |
Steel |
| Fire Extinguisher holder |
2 |

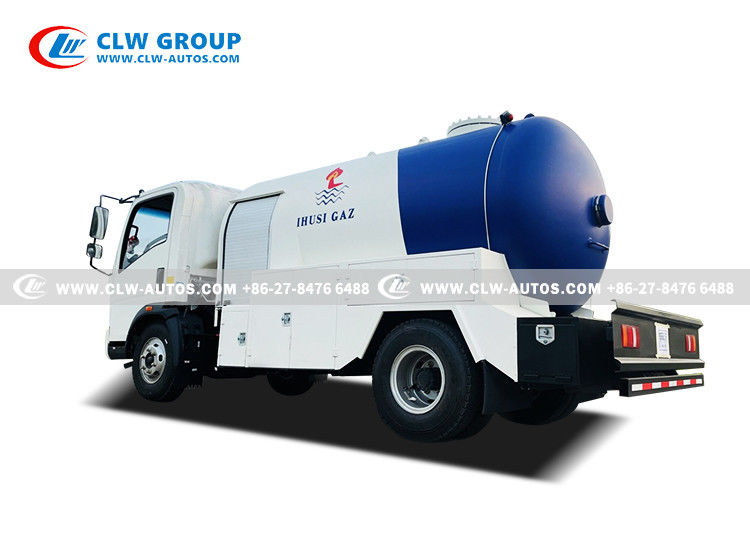

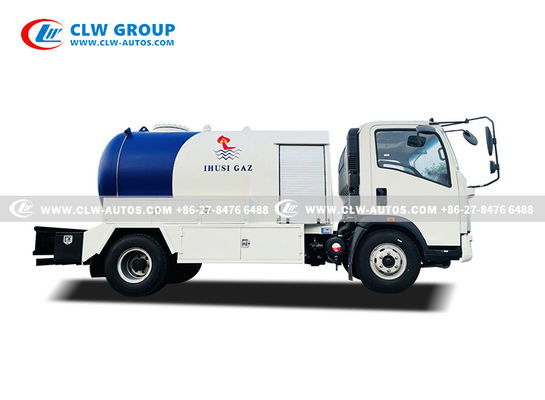

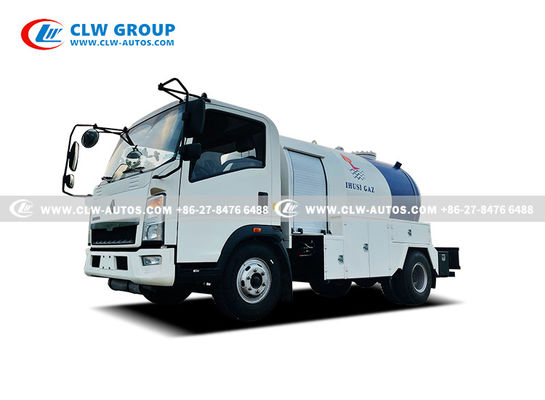

More detailed pictures for HOWO 4x2 RHD 5000 Liters 5000L 2.5Tonne LPG Gas Cylinder Filling Tank
Bobtail Truck With Dispenser:
Production Process of Propane Gas Storage Tank
FAQ
Q1: What kinds of lpg bobtail I can order from your company?
A: We can supply lpg bobtail from 5000Liters to 35000liters. Pls contact with us for more technical details discussion.
Q2: What is your production standard of lpg bobtail? Whether your lpg bobtail exported to others countries?
A: lpg bobtail is produced strictly according to GB150.1~4,we supplied lpg bobtail to AA RANO,Hass Petroluem,NIPCO and so on.
Q3: What's the difference between your company and other chinese supplier?
A: As the top manufacturer of lpg trucks and products for more than 15 years,our salesmen are more professional and they will offer you suggestion. And we took part in lpg summit in Africa and Asia every year.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
